Drive Motor 2 Temperature Sensor




Component Connector End Views

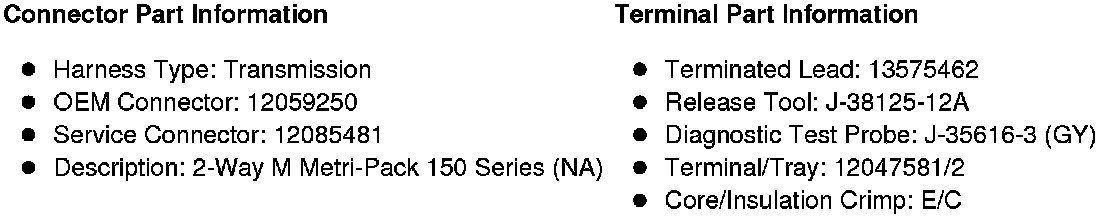

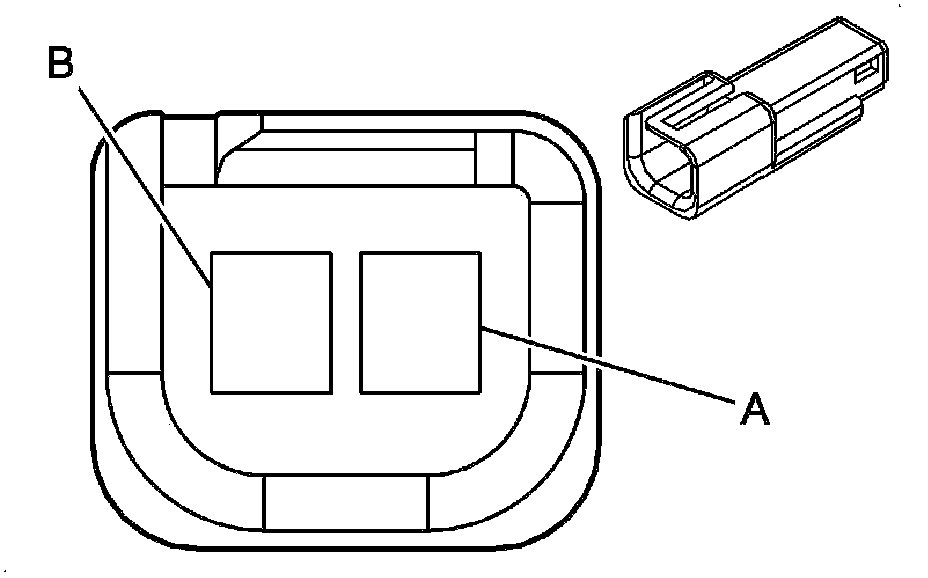

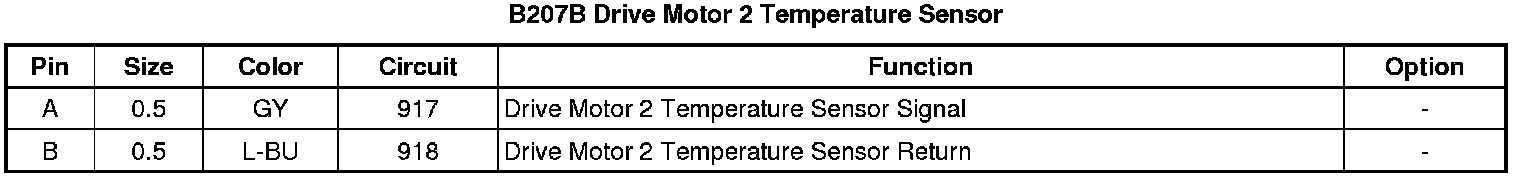

B207B Drive Motor 2 Temperature Sensor
