Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Cooling Fan Motor - Left

Cooling Fan Motor - Left




Component Connector End Views

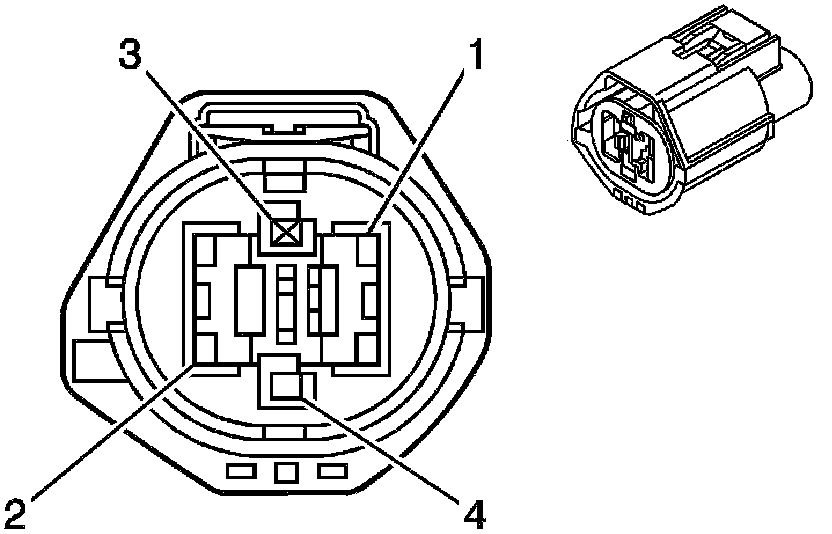

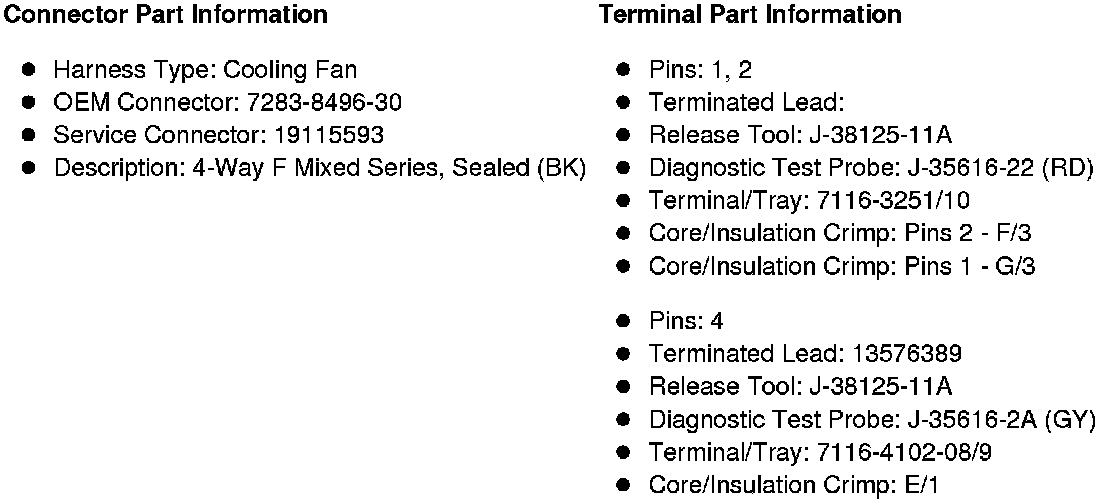

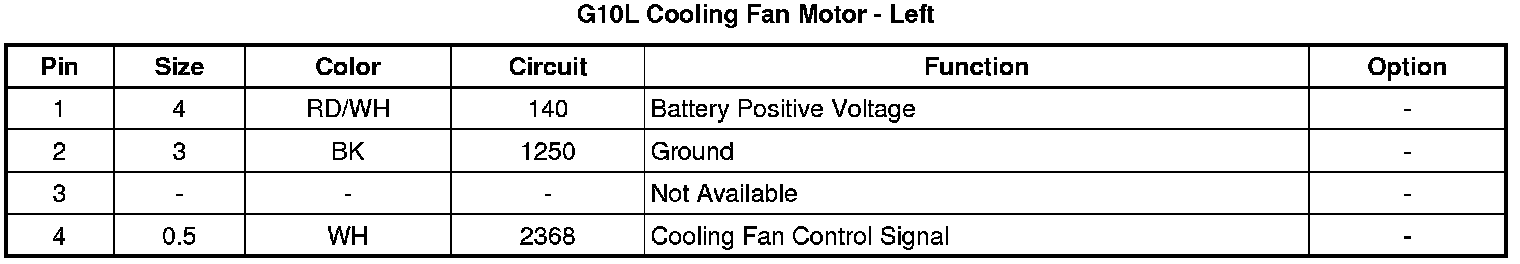

G10L Cooling Fan Motor - Left
