Charge Port Door Position Switch




Component Connector End Views

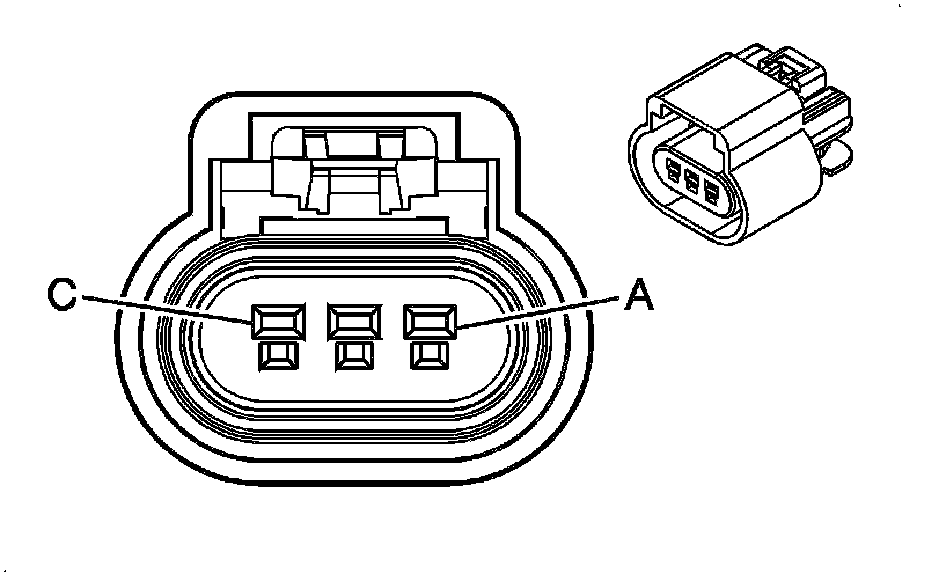

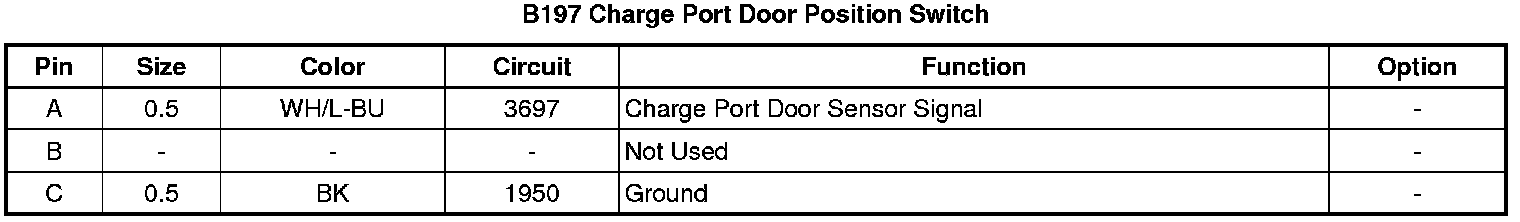

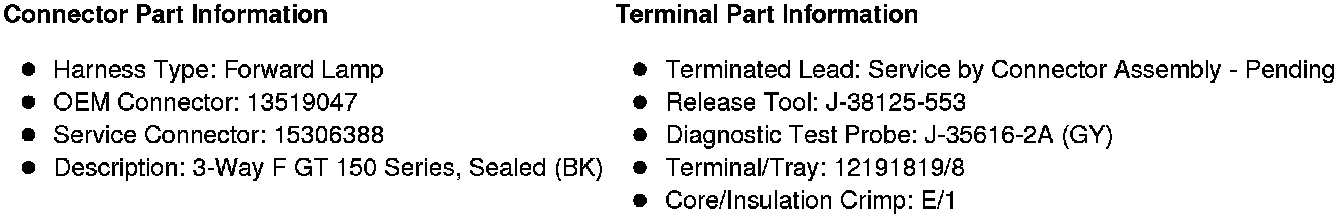

B197 Charge Port Door Position Switch
