Charge Port Door Open Request Switch

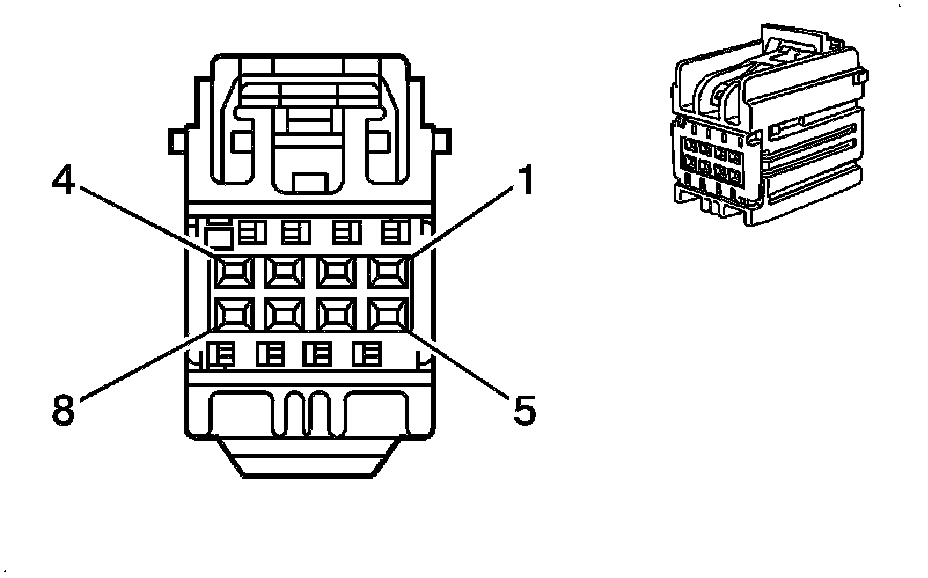

Component Connector End Views

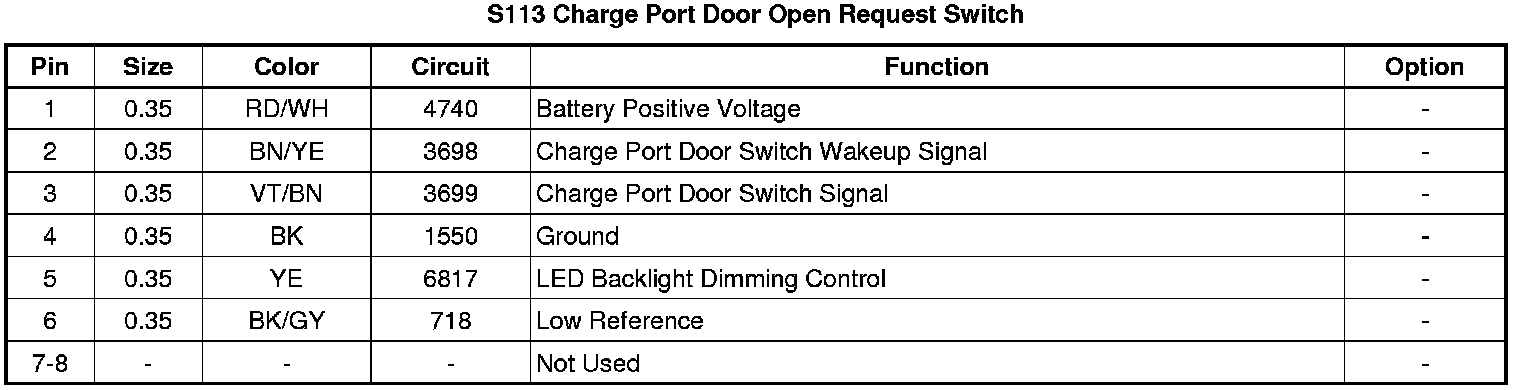

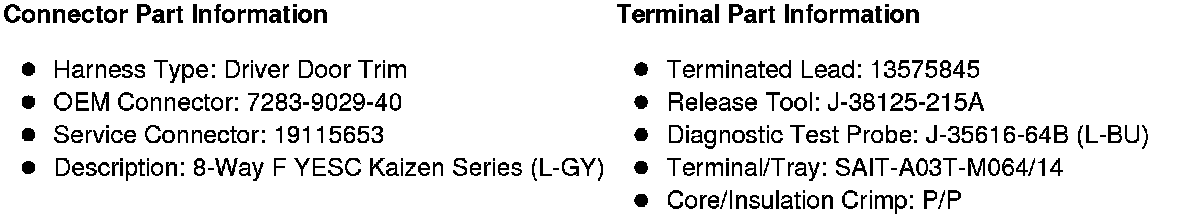

S113 Charge Port Door Open Request Switch
