Battery State of Charge Indicator

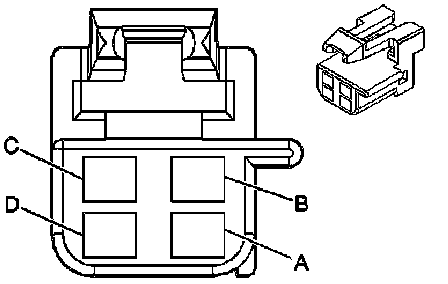

Component Connector End Views

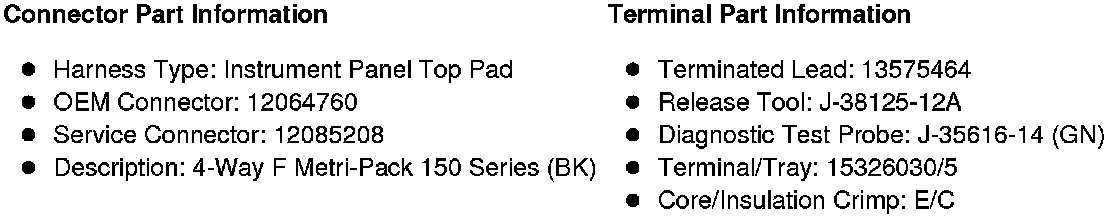

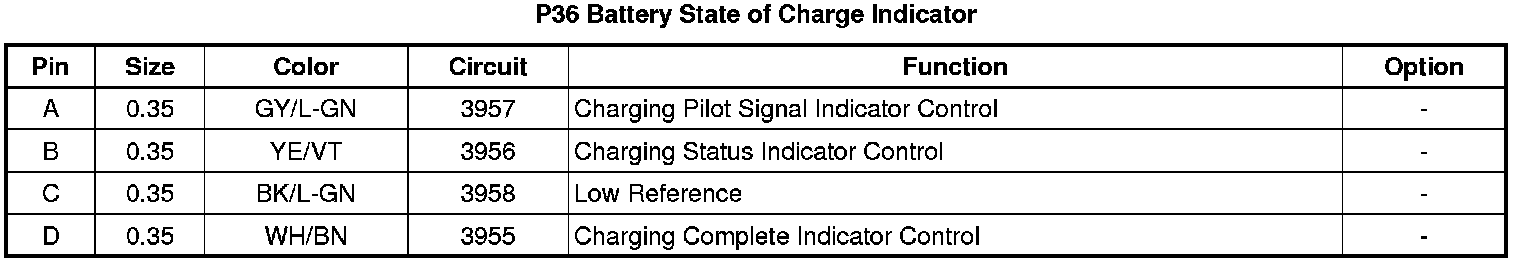

P36 Battery State of Charge Indicator
