Accessory Power Receptacle - Rear Console




Component Connector End Views

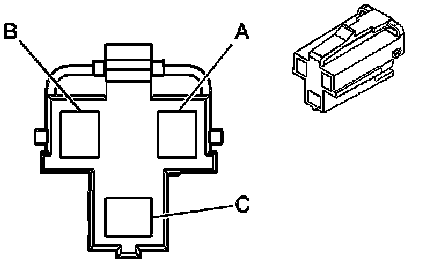

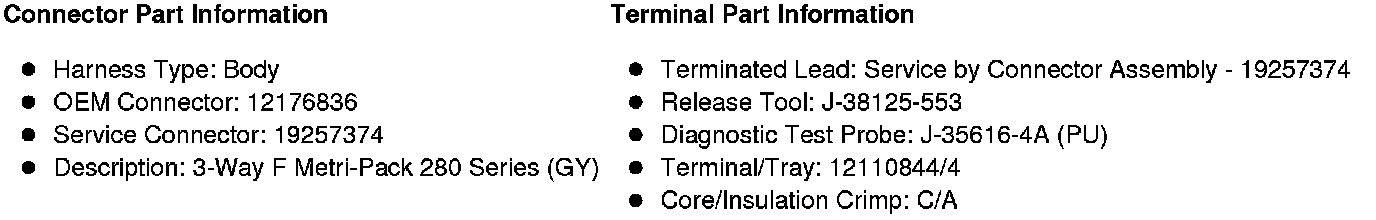

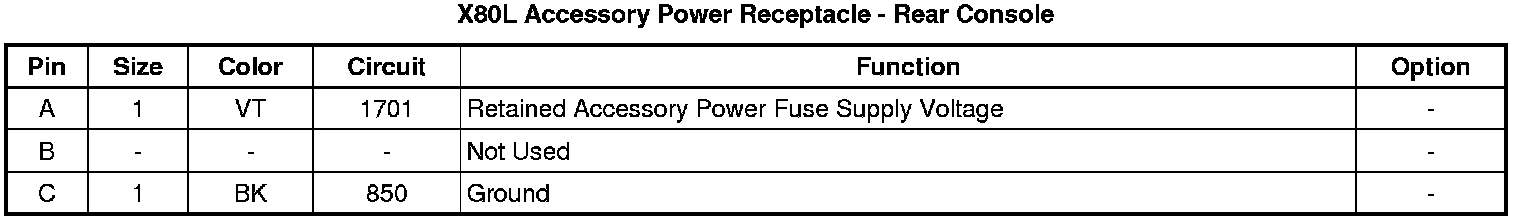

X80L Accessory Power Receptacle - Rear Console
