Left Side

INSTRUMENT PANEL FUSE BLOCK (LEFT SIDE)
The instrument panel fuse block is on the driver side end of the instrument panel. To access the fuses, open the fuse panel door by pulling out.

To reinstall the door, insert the bottom tab first, then push the door back into its original location.

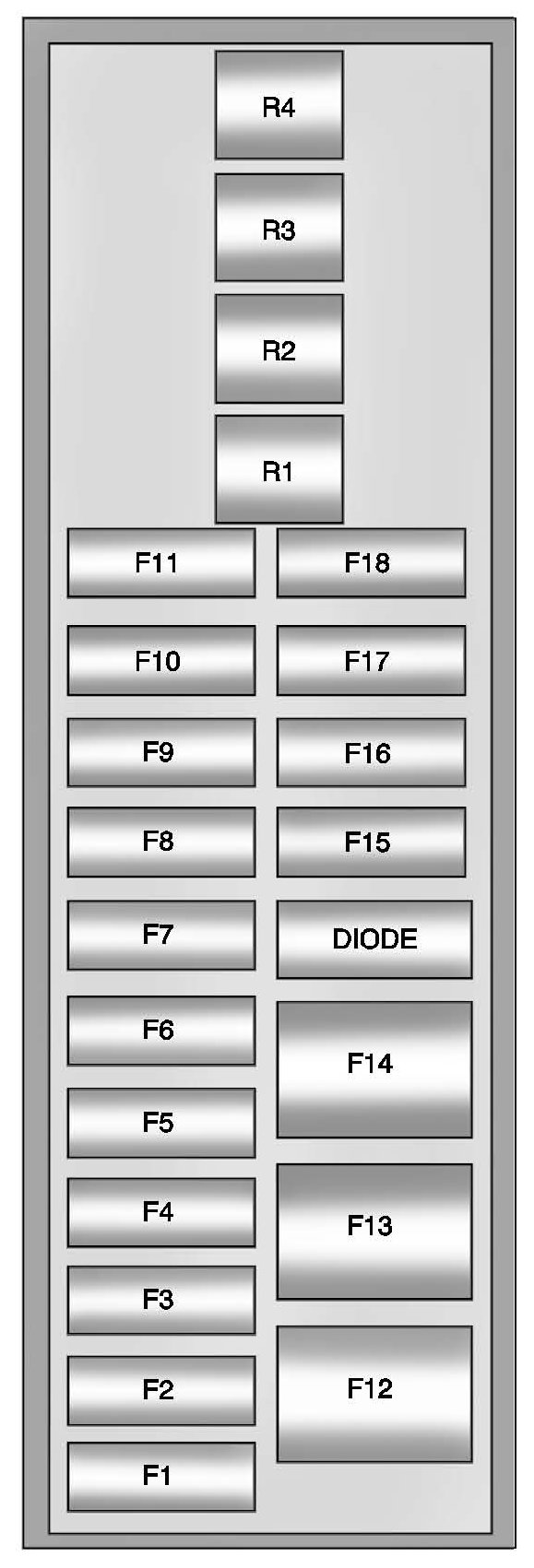

Instrument Panel Fuse Block






A fuse puller is located in the engine compartment fuse block.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Fuses Usage
Fuse F1 Power Outlet - Top of IP Storage Bin
Fuse F2 Radio
Fuse F3 Instrument Cluster
Fuse F4 Infotainment Display
Fuse F5 Heating, Ventilation & Air Conditioning /Integrated Center Stack Switches
Fuse F6 Airbag (Sensing Diagnostic Module / Passenger Sensing Module)
Fuse F7 Data Link Connector 1 / Data Link Connector 2
Fuse F8 Empty
Fuse F9 Empty
Fuse F10 Body Control Module 1 / Body Control Module Electronics / Keyless Entry / Power Moding / Center High Mount Stoplamp / License Lamps / Left Daytime Running Lamp / Left Front Parking Lamp / Right Rear Taillamp / Hatch Release Relay Control / Washer Pump Relay Control / Switch Indicator Lights
Fuse F11 Body Control Module 4 / Left Headlamp
Fuse F12 Empty
Fuse F13 Empty
Fuse F14 Empty
Fuse F15 Power Outlet (Inside Floor Console / Rear of Floor Console)
Fuse F16 Empty
Fuse F17 Empty
Fuse F18 Empty

Relays Usage
Relay R1 Retained Accessory Power Relay for Power Outlets
Relay R2 Empty
Relay R3 Empty
Relay R4 Empty

Diodes Usage
DIODE Empty
