Engine Compartment Fuse Block

ENGINE COMPARTMENT FUSE BLOCK

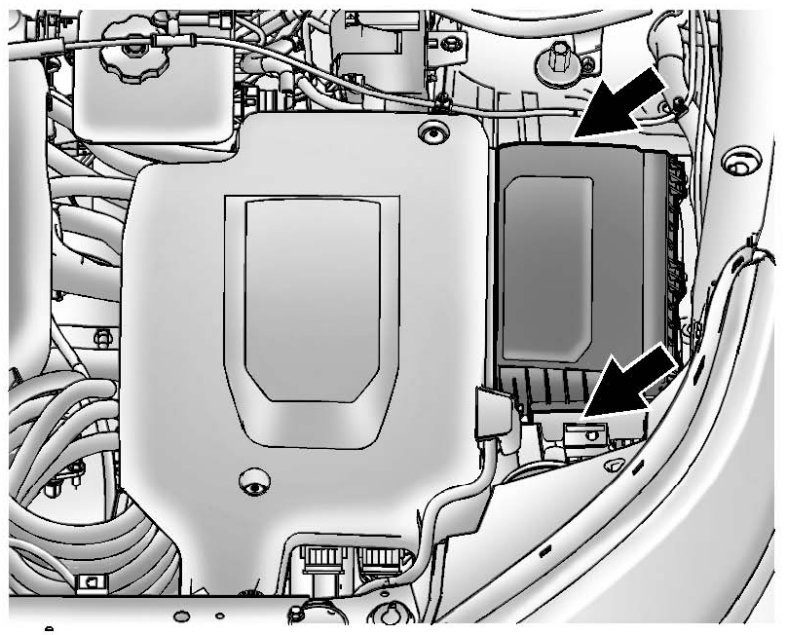

To open the fuse block cover, press the clips at the front and back and rotate the cover up to the side.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

Engine Compartment Fuse Block






A fuse puller is located in the engine compartment fuse block.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

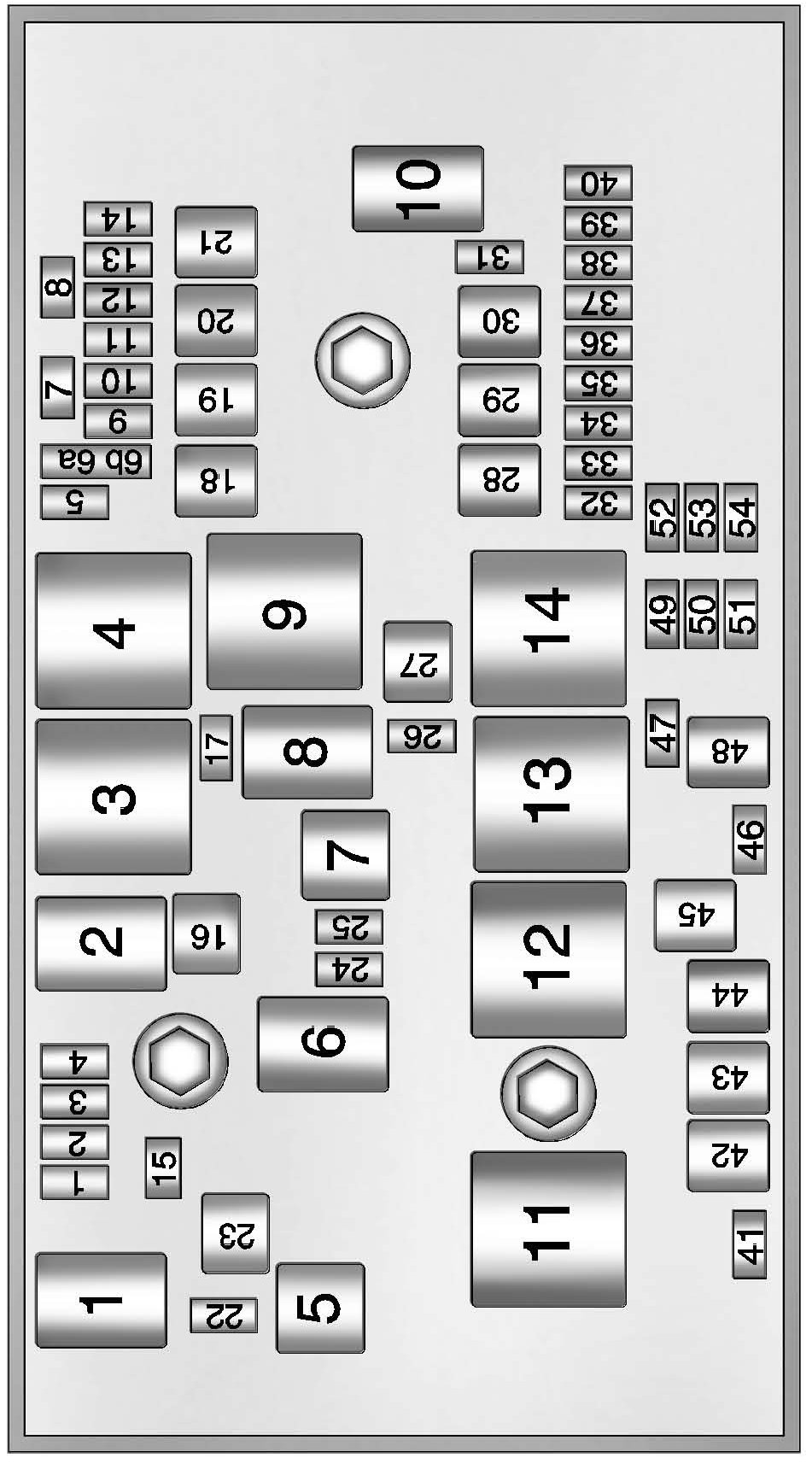

Mini Fuses Usage
Fuse 1 Engine Control Module - Switched Power
Fuse 2 Emissions
Fuse 3 Not Used
Fuse 4 Ignition Coils / Injectors
Fuse 5 Empty
Fuse 6a Empty
Fuse 6b Rear Defogger (Lower Grid)
Fuse 7 Empty
Fuse 8 Empty
Fuse 9 Heated Mirrors
Fuse 10 Air Conditioning Control Module
Fuse 11 Traction Power Inverter Module - Battery
Fuse 12 Cabin Heater Pump and Valve
Fuse 13 Empty
Fuse 14 Empty
Fuse 15 Traction Power Inverter Module and Transmission Control Module - Battery
Fuse 17 Engine Control Module - Battery
Fuse 22 Left High-Beam Headlamp
Fuse 24 Empty
Fuse 25 Empty
Fuse 26 Empty
Fuse 31 Rechargeable Energy Storage System (High Voltage Battery) Coolant Pump
Fuse 32 Sensing Diagnostic Module - Run / Crank
Fuse 33 Run / Crank for Fuel System Control Module / Vehicle Integration Control Module
Fuse 34 Vehicle Integration Control Module - Battery
Fuse 35 Power Electronics Coolant Pump
Fuse 36 Empty
Fuse 37 Cabin Heater Control Module
Fuse 38 Empty
Fuse 39 Rechargeable Energy Storage System (High Voltage Battery) Control Module
Fuse 40 Front Windshield Washer
Fuse 41 Right High-Beam Headlamp
Fuse 46 Empty
Fuse 47 Empty
Fuse 49 Empty
Fuse 50 Rear Vision Camera - Run / Crank (If Equipped)
Fuse 51 Run / Crank for ABS / Rechargeable Energy Storage System (High Voltage Battery) / Charger
Fuse 52 Engine Control Module / Transmission Control Module - Run / Crank
Fuse 53 Traction Power Inverter Module - Run / Crank
Fuse 54 Run / Crank for Air Conditioning Control Module / Instrument Cluster / Passenger Airbag Display / Accessory Power Module

J-Case Fuses Usage
Fuse 16 Empty
Fuse 18 Empty
Fuse 19 Power Window - Front
Fuse 20 Empty
Fuse 21 Antilock Brake System Electronic Control Unit
Fuse 23 Charge Port Door
Fuse 27 Empty
Fuse 28 Empty
Fuse 29 Empty
Fuse 30 Antilock Brake System Motor
Fuse 42 Cooling Fan - Right
Fuse 43 Front Wipers
Fuse 44 Charger
Fuse 45 Empty
Fuse 48 Cooling Fan - Left

Mini Relays Usage
Relay 3 Powertrain
Relay 4 Rear Defog (Lower Grid) / Heated Mirrors
Relay 7 Empty
Relay 9 Empty
Relay 11 Empty
Relay 12 Empty
Relay 13 Empty
Relay 14 Run / Crank

Micro Relays Usage
Relay 1 Empty
Relay 2 Empty
Relay 6 Empty
Relay 8 Empty
Relay 10 Empty

Ultra Micro Relays Usage
Relay 5 Charge Port Door
