Air Temperature Sensor - Duct Upper
Air Temperature Sensor - Duct Upper

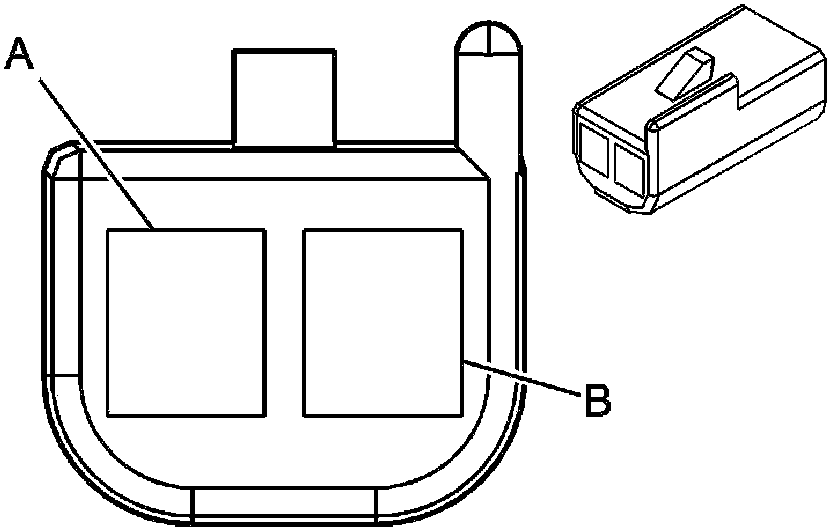

Component Connector End Views

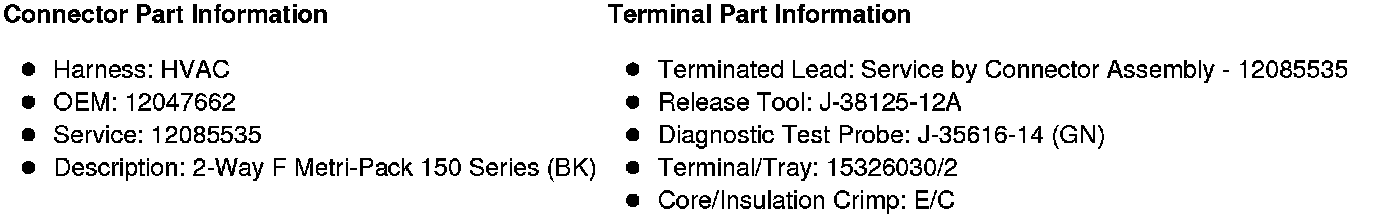

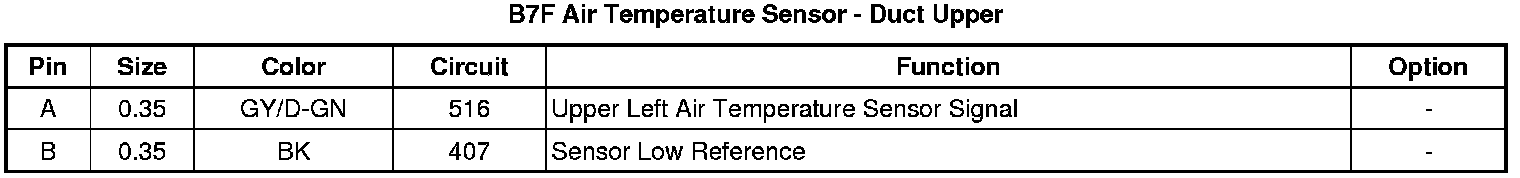

B7F Air Temperature Sensor - Duct Upper
