Engine Coolant Radiator Temperature Sensor

Front of Vehicle/Engine Compartment Component Views

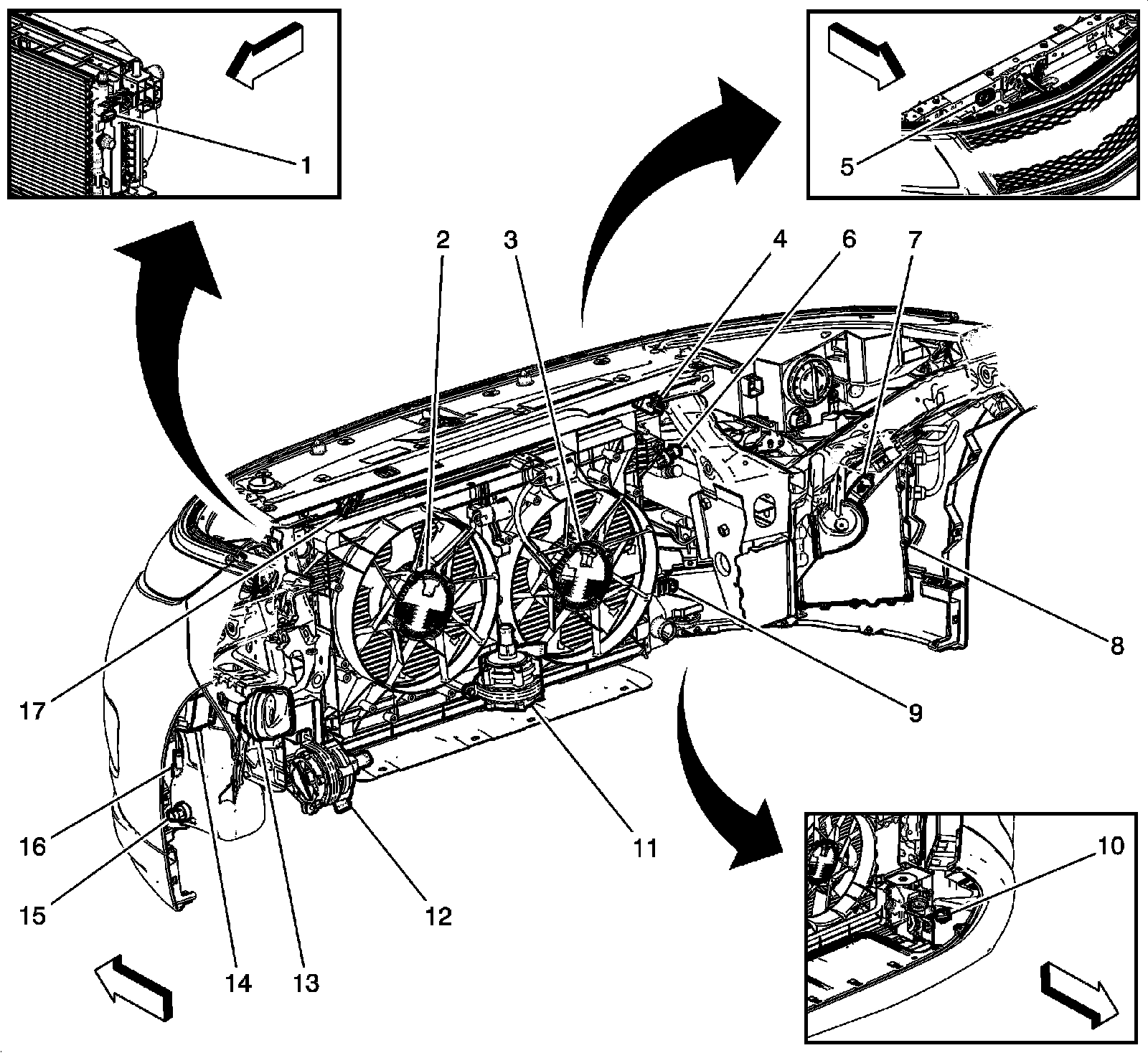

Engine Compartment Components - Front




1 - B202 Hybrid Electronics Coolant Temperature Sensor
2 - G10L Cooling Fan Motor - Left
3 - G10R Cooling Fan Motor - Right
4 - B59R Front Impact Sensor - Right
5 - B55 Hood Ajar Switch
6 - B1 A/C Refrigerant Pressure Sensor
7 - P12R Horn - Right
8 - T18 Battery Charger
9 - B203 Engine Coolant Radiator Temperature Sensor
10 - B9 Ambient Air Temperature Sensor
11 - G37 Hybrid Battery Pack Coolant Pump
12 - G35 Hybrid Electronics Coolant Pump
13 - P12L Horn - Left
14 - K20 Engine Control Module
15 - B118 Windshield Washer Fluid Level Sensor
16 - G24 Windshield Washer Pump
17 - B59L Front Impact Sensor - Left
