Engine Coolant Radiator Temperature Sensor

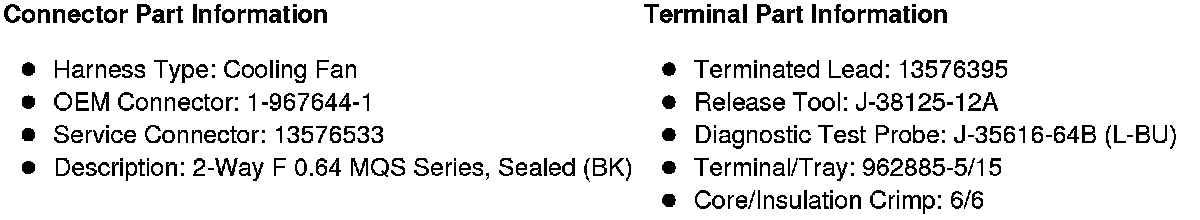

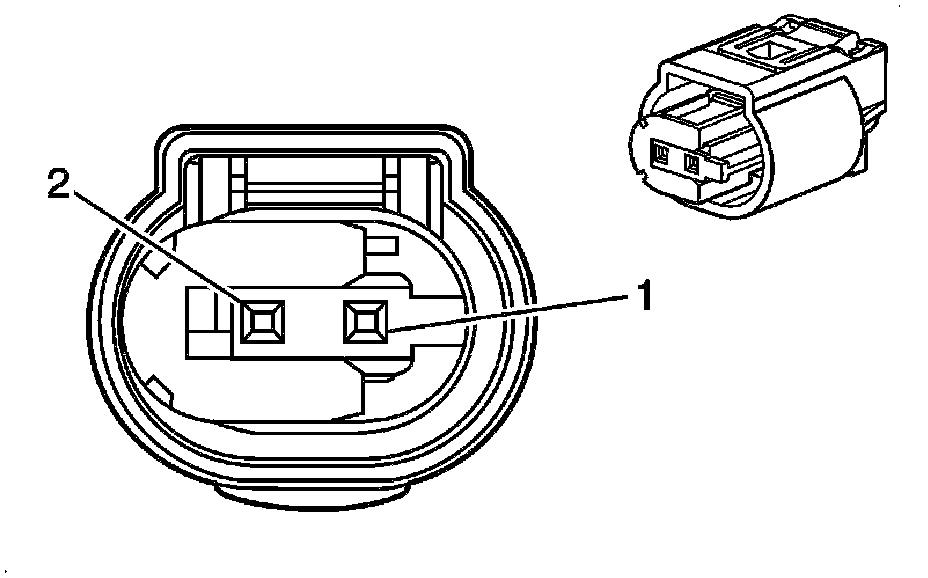

Component Connector End Views

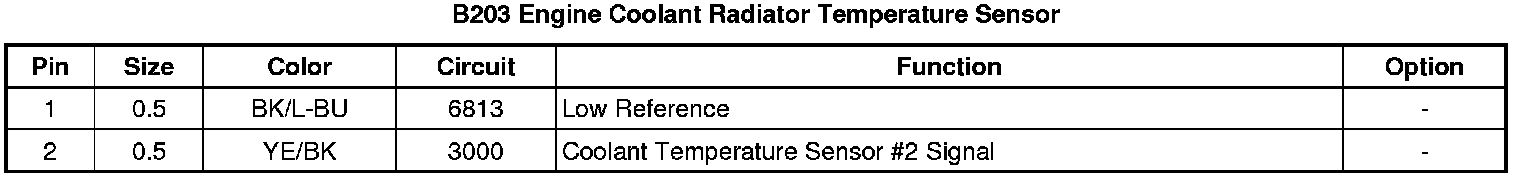

B203 Engine Coolant Radiator Temperature Sensor
