Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Service and Repair >> Removal and Replacement >> Inflatable Restraint Instrument Panel Lower Module Replacement - Passenger Side

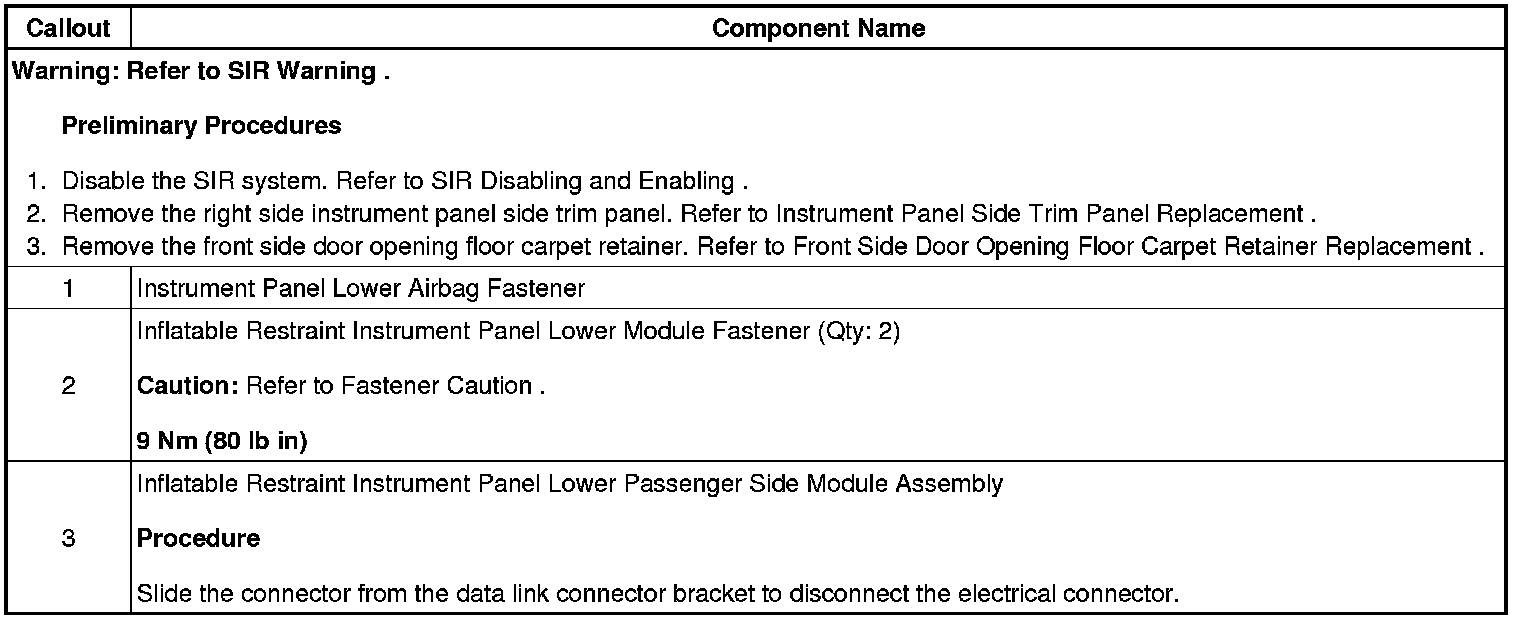

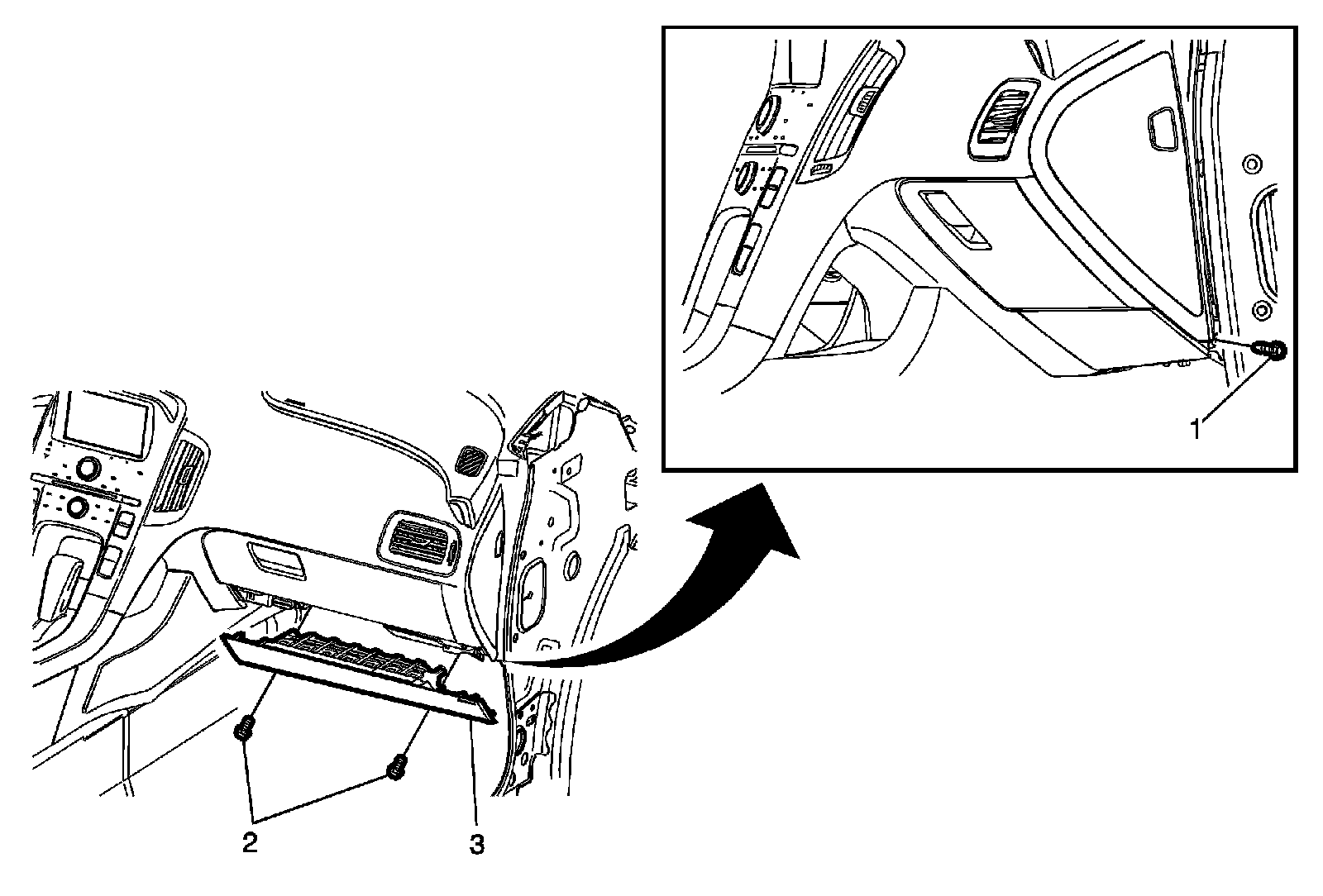

Inflatable Restraint Instrument Panel Lower Module Replacement - Passenger Side




Inflatable Restraint Instrument Panel Lower Module Replacement - Passenger Side
