Transmission Internal Mode Switch X2

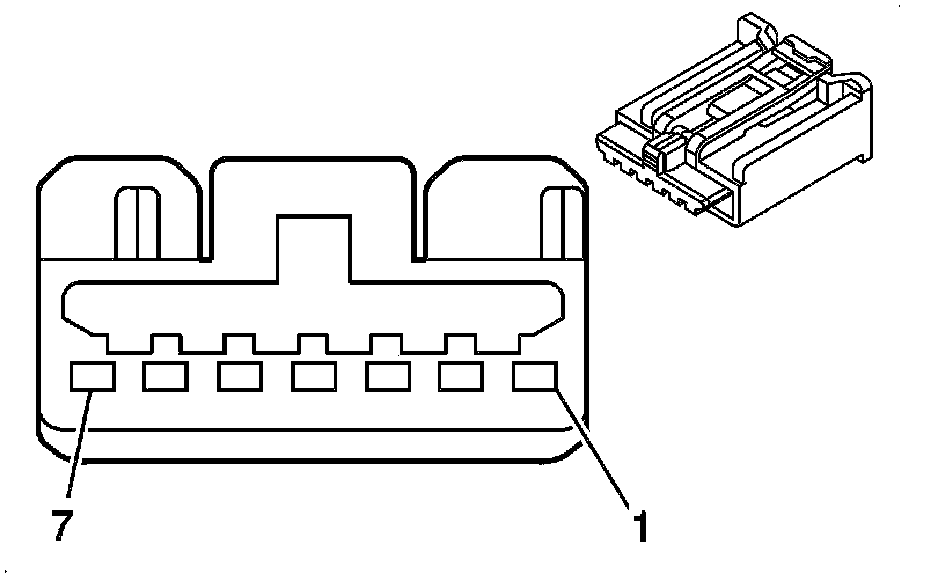

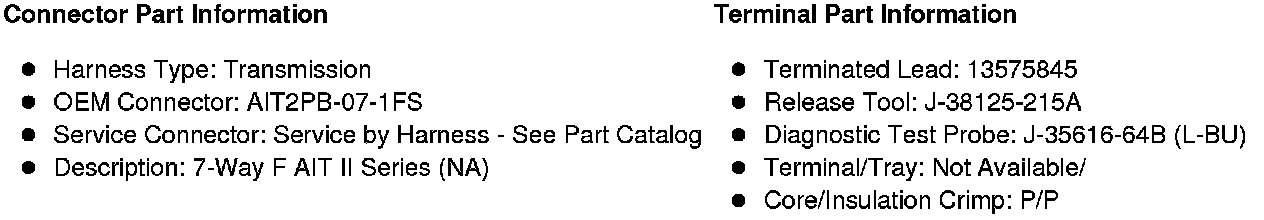

Component Connector End Views

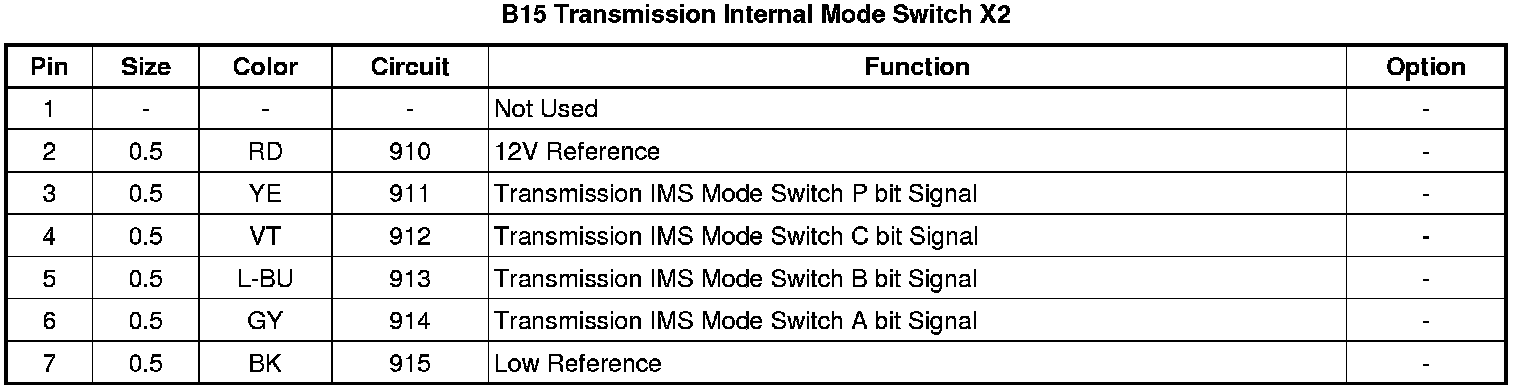

B15 Transmission Internal Mode Switch X2
