Engine Compartment Components - Left

Front of Vehicle/Engine Compartment Component Views

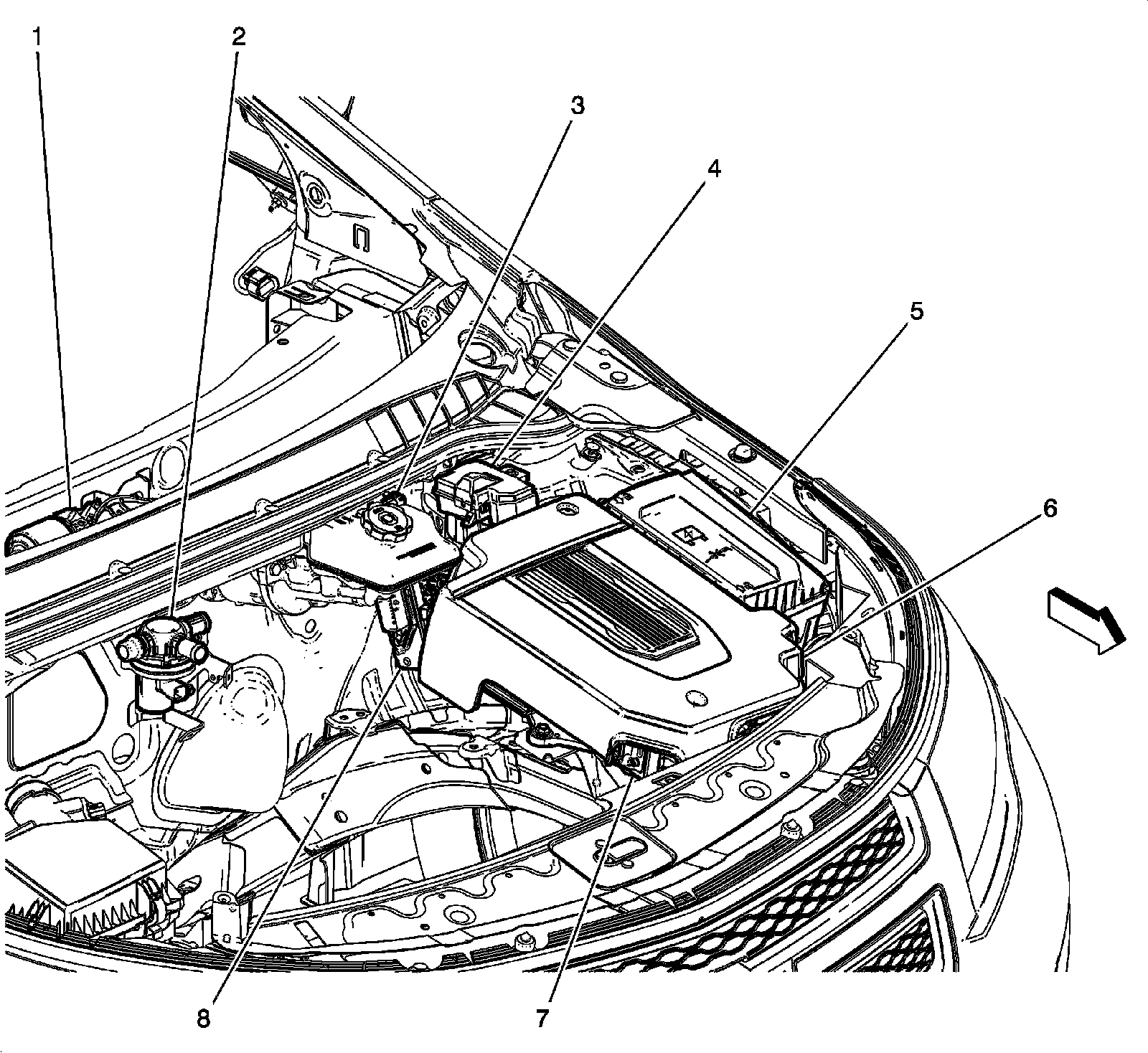

Engine Compartment Components - Left




1 - M75 Windshield Wiper Motor
2 - Q66 Passenger Compartment Heater Coolant Control Valve
3 - B20 Brake Fluid Level Switch
4 - X50B Fuse Block - Underhood Auxiliary
5 - X50A Fuse Block - Underhood
6 - F103 Power Inverter Module Assembly Cable Cover
7 - T6 Power Inverter Module
8 - K17 Electronic Brake Control Module
