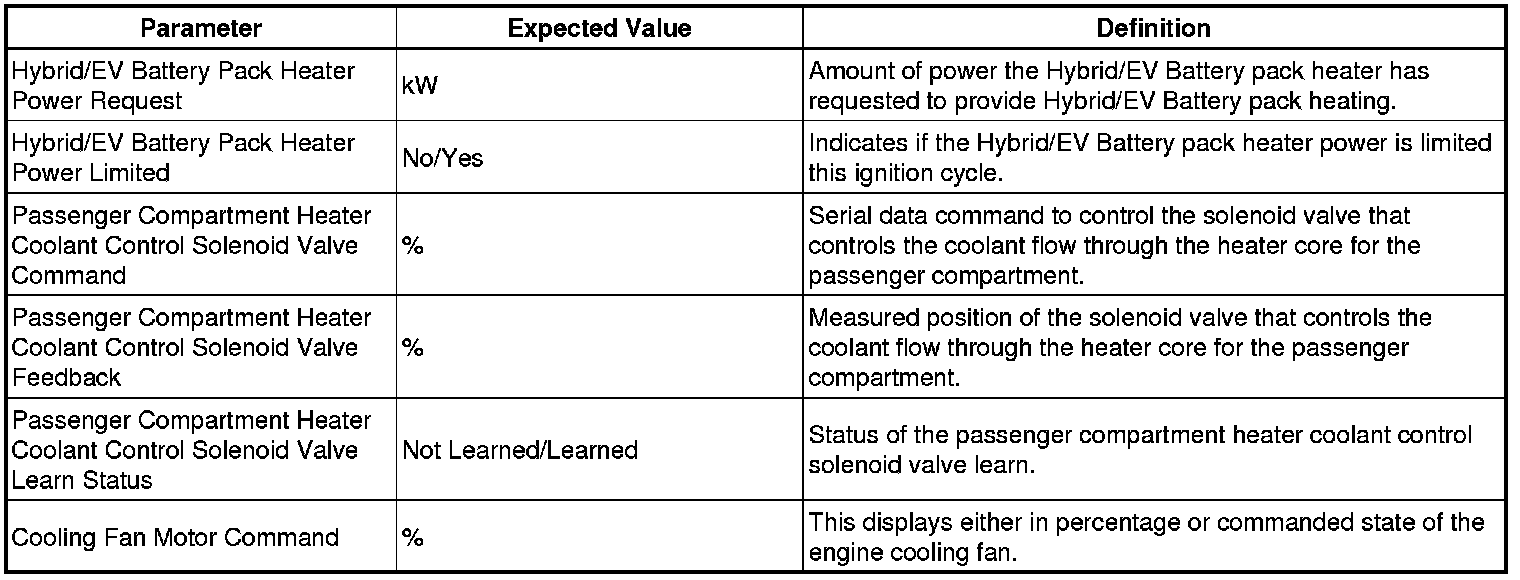

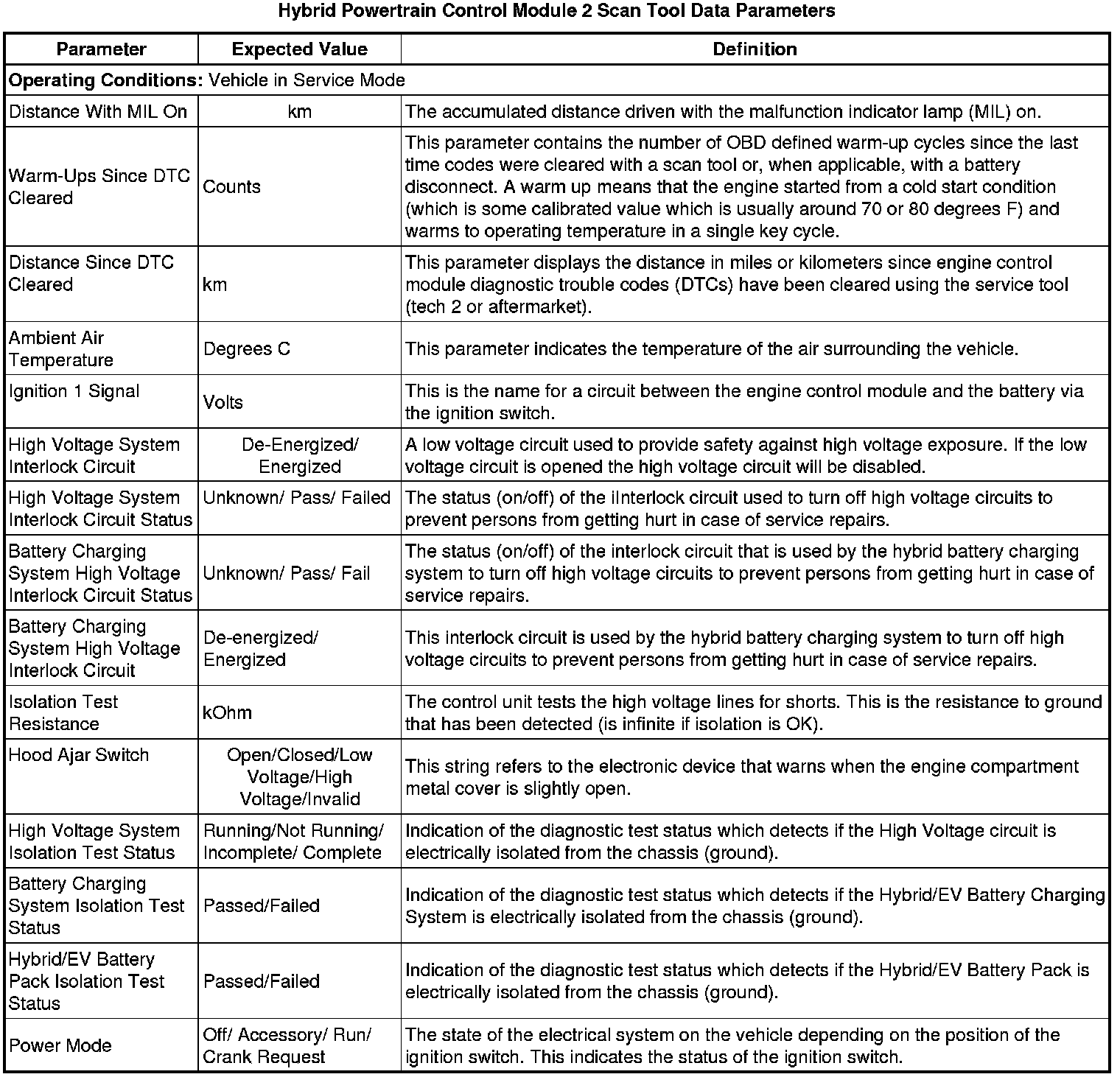

Hybrid Powertrain Control Module 2 Scan Tool Information




Hybrid Powertrain Control Module 2 Scan Tool Information
