Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Hybrid Drive Systems >> Service and Repair >> Removal and Replacement >> Generator Control Module Coolant Radiator Hose Replacement

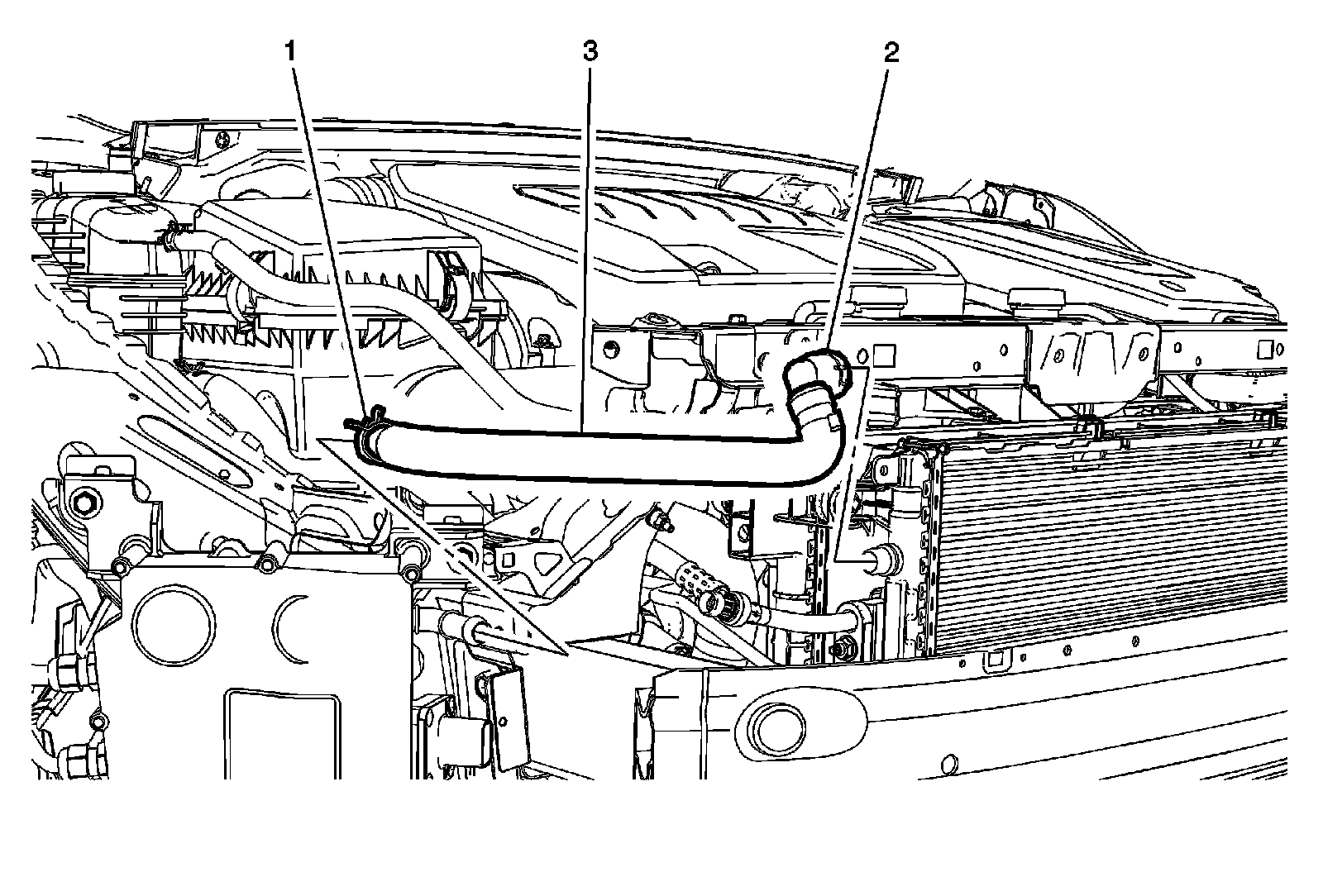

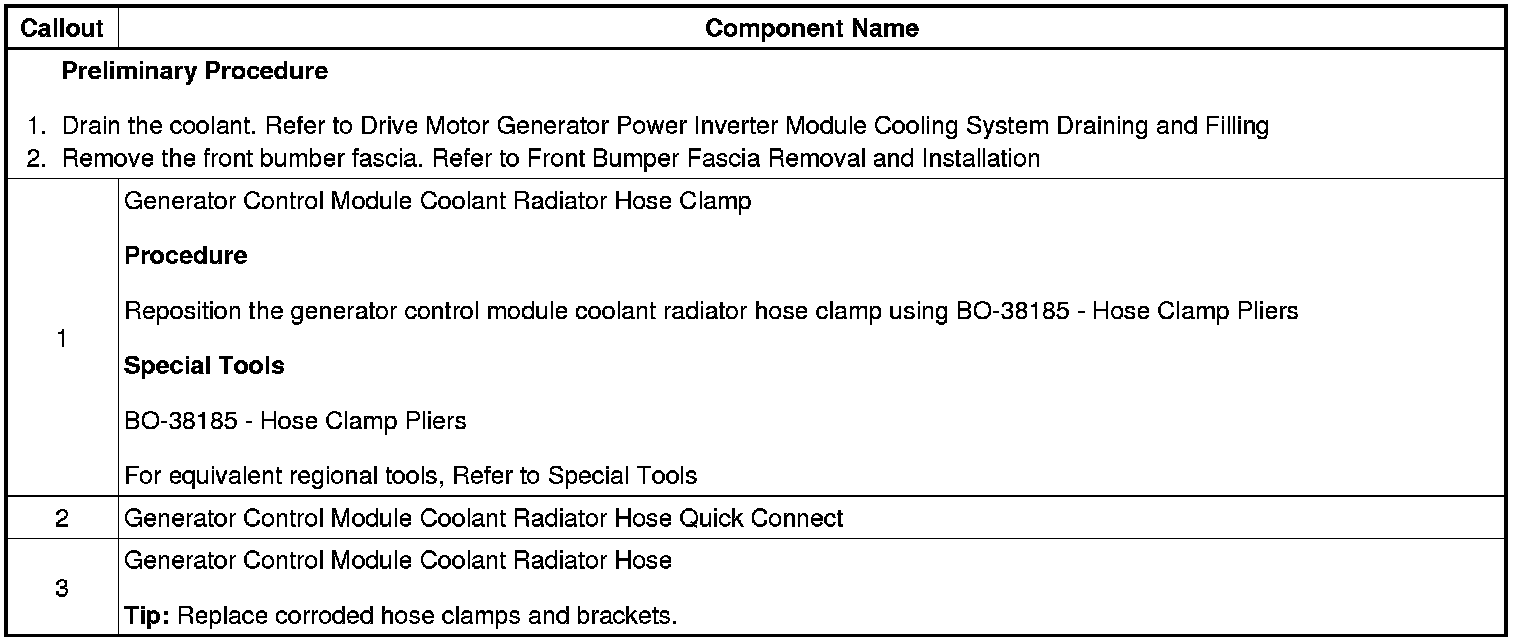

Generator Control Module Coolant Radiator Hose Replacement




Generator Control Module Coolant Radiator Hose Replacement
