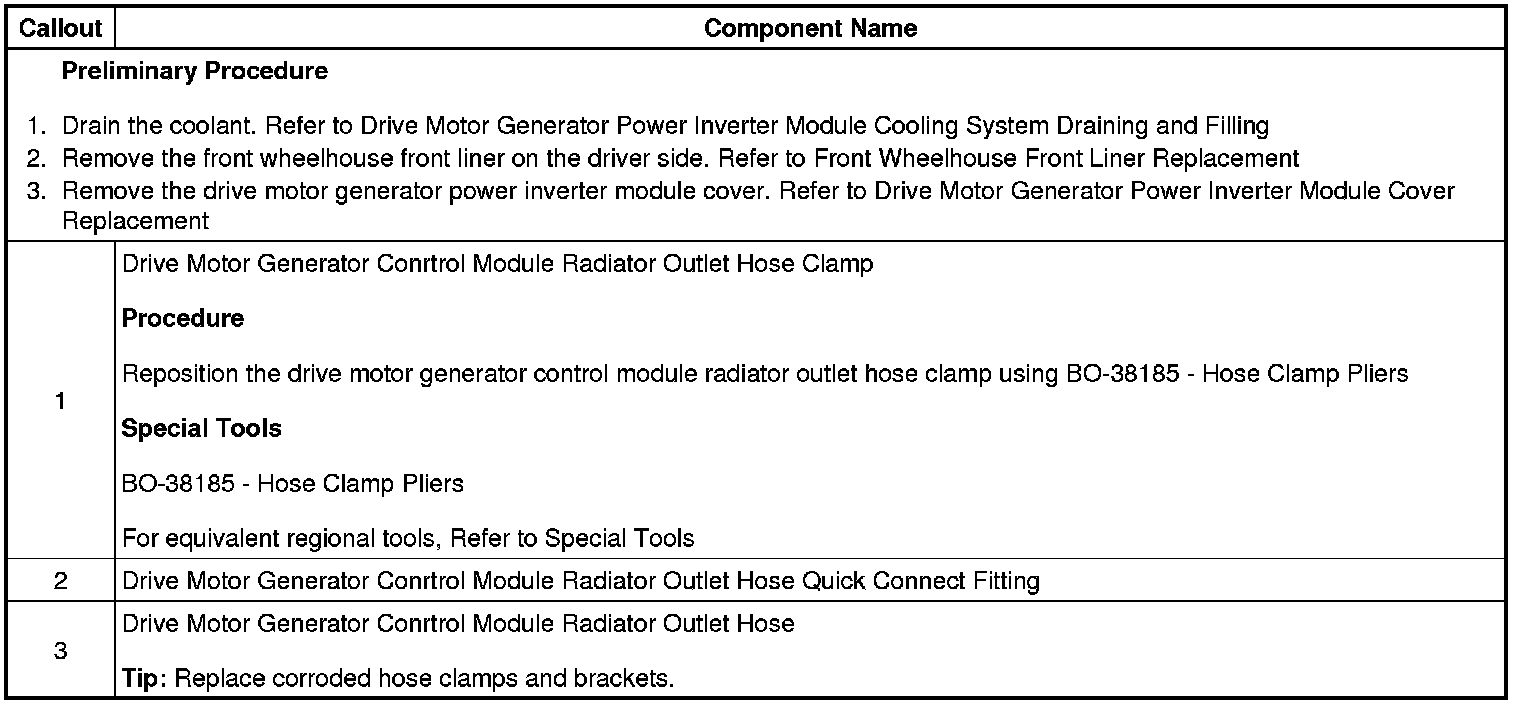

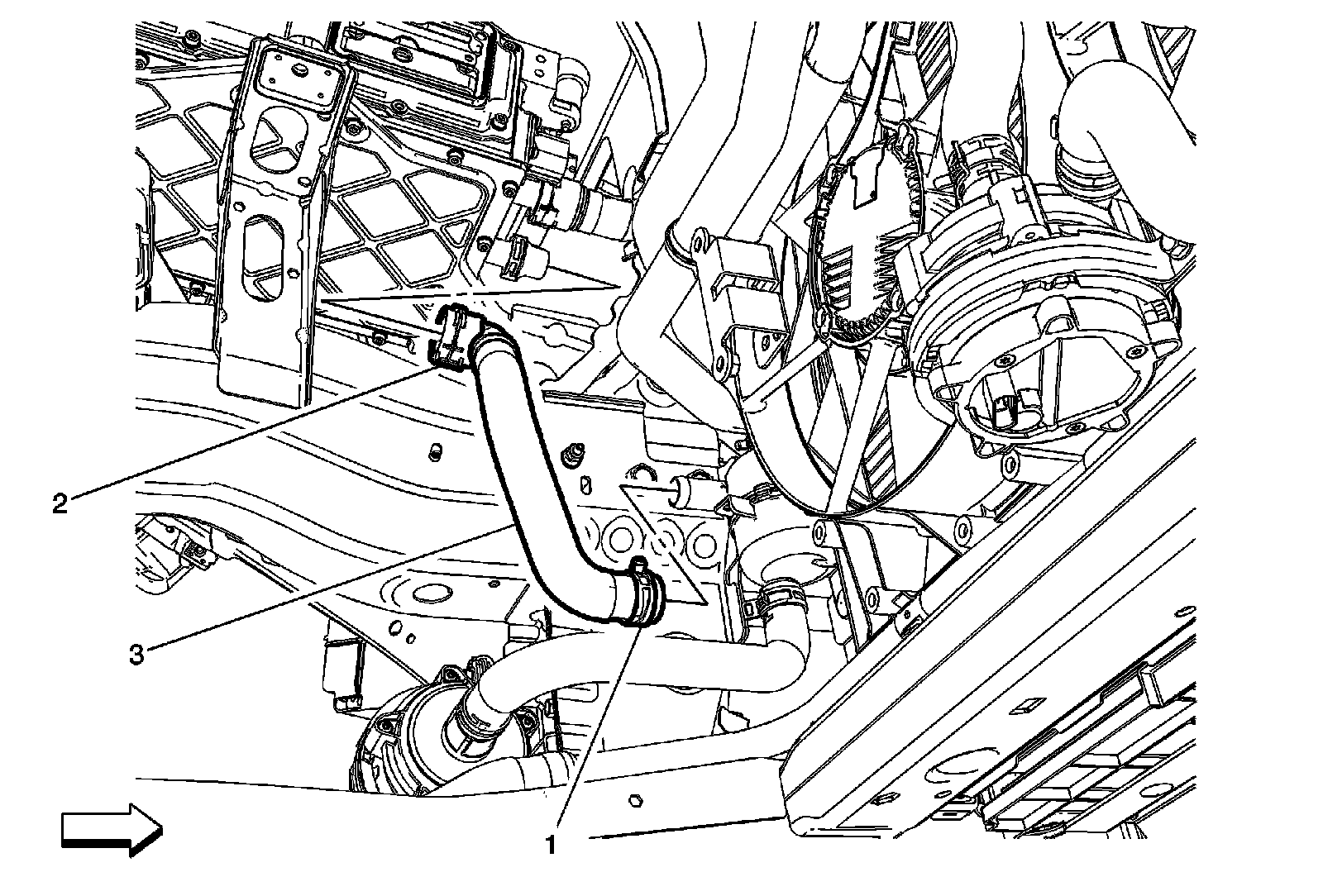

Drive Motor Generator Control Module Radiator Outlet Hose Replacement




Drive Motor Generator Control Module Radiator Outlet Hose Replacement
