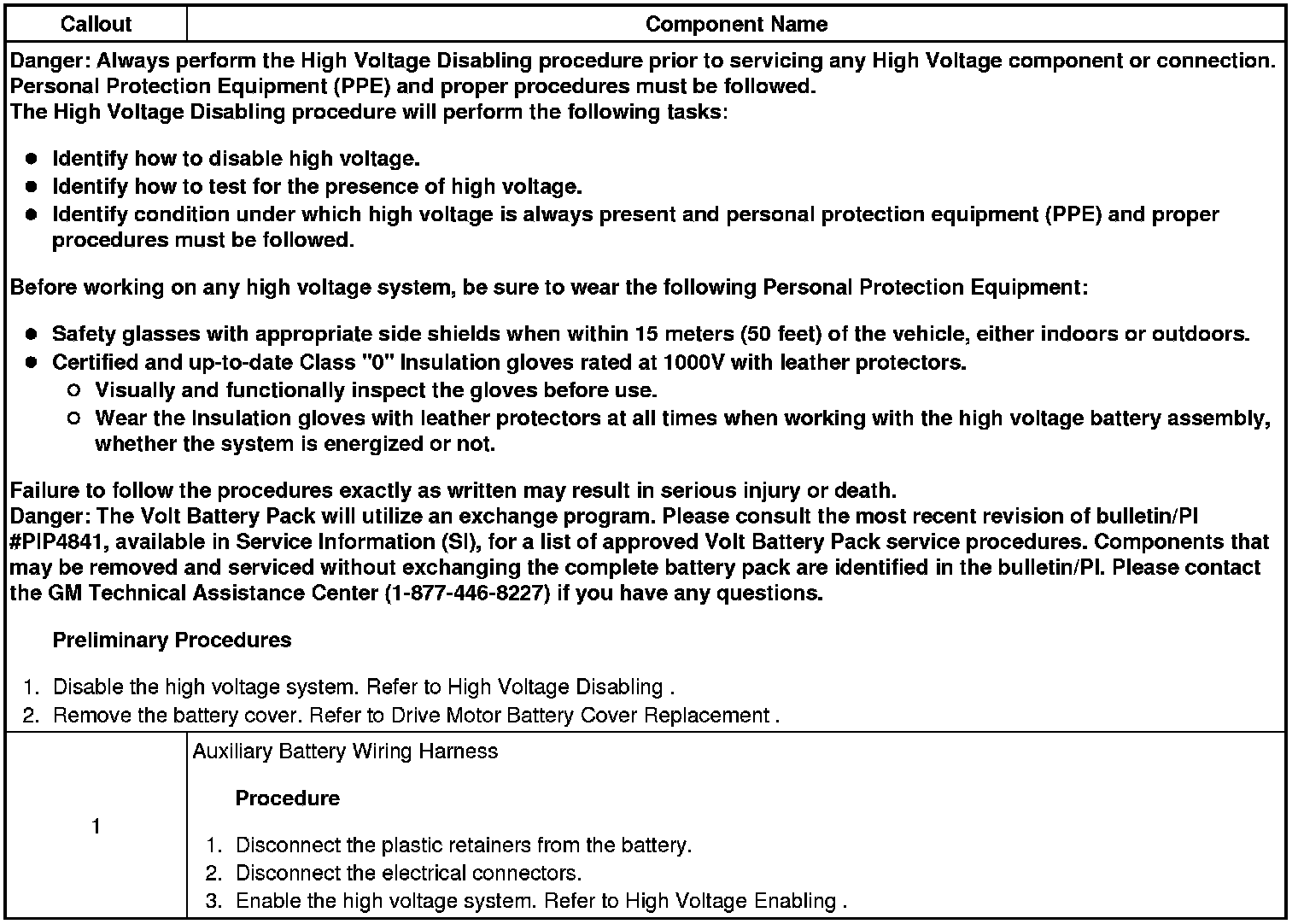

Auxiliary Battery Wiring Harness Replacement (Module Harness 1)
Auxiliary Battery Wiring Harness Replacement (Module Harness 1)
Auxiliary Battery Wiring Harness Replacement (Module Harness 1)
