Specifications
Exhaust Manifold: Specifications

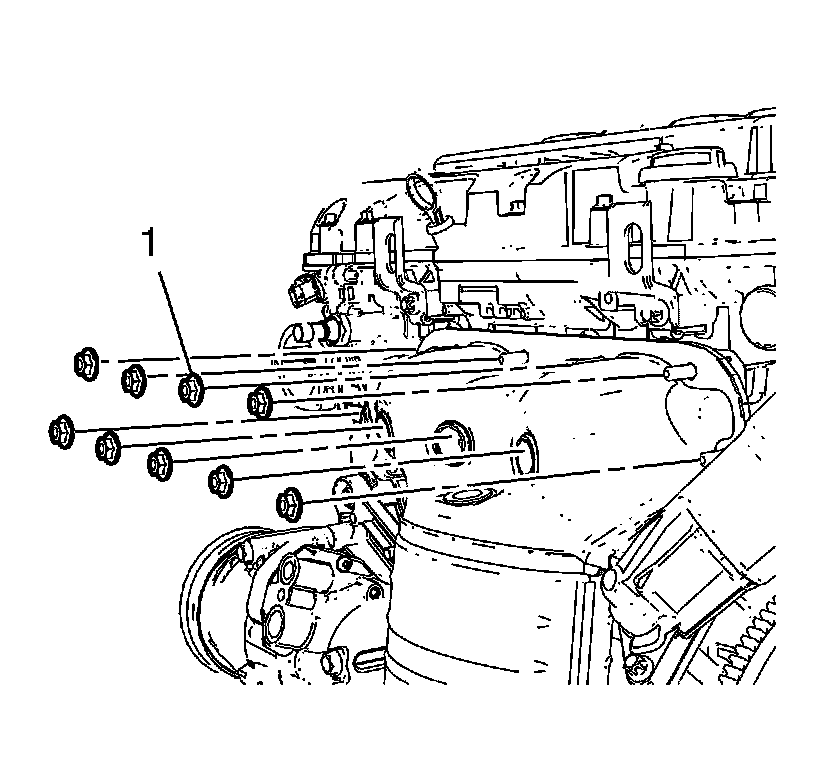

Tighten the 9
exhaust manifold
nuts to 22 Nm (16 lb ft)
Tighten the 2
catalytic converter
bracket bolts to 10 Nm (89 lb in).
