Power Distribution Schematics
Power Distribution Schematics

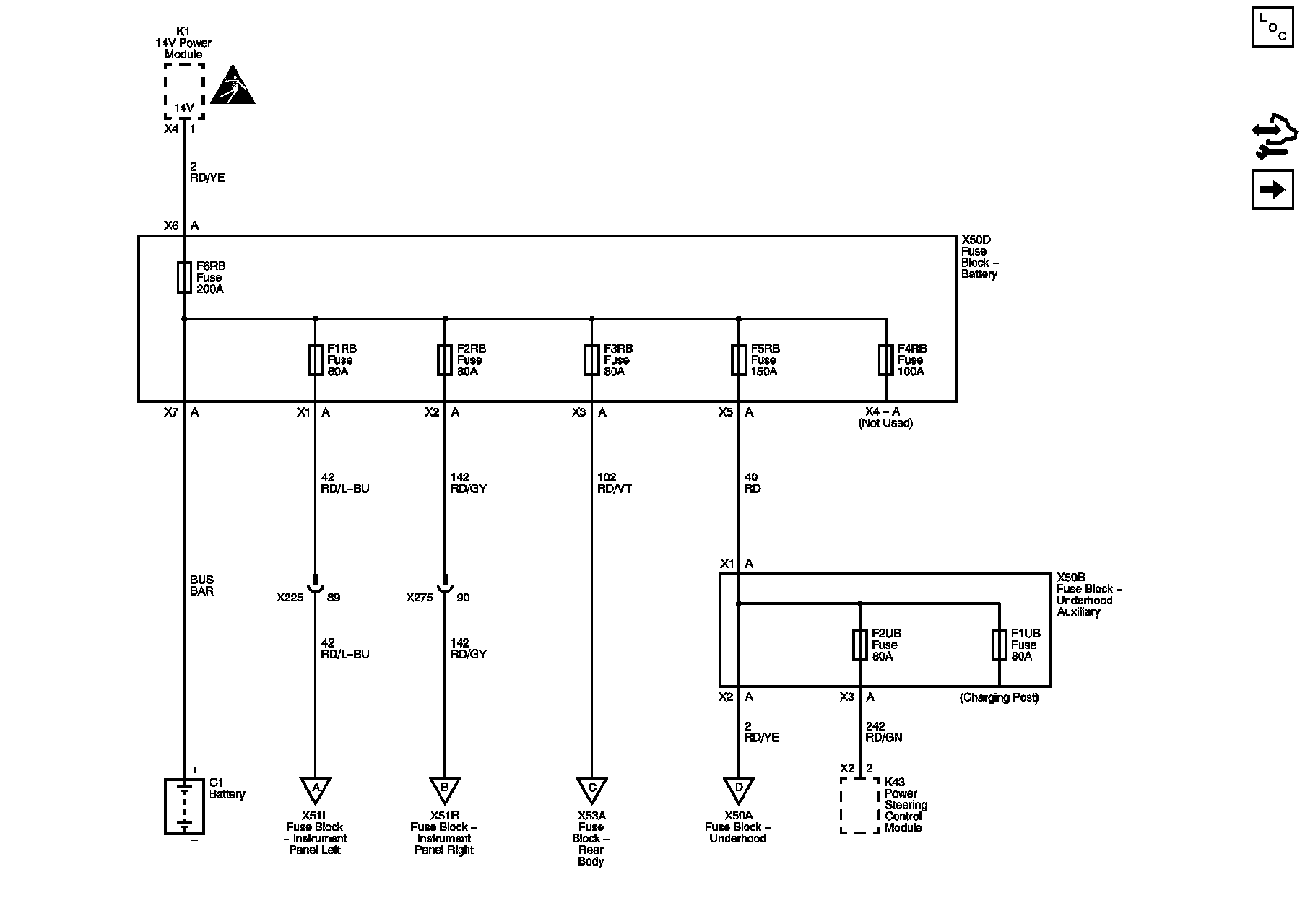

X50D Fuse Block - Battery and X50B Fuse Block - Underhood Auxiliary Bussing

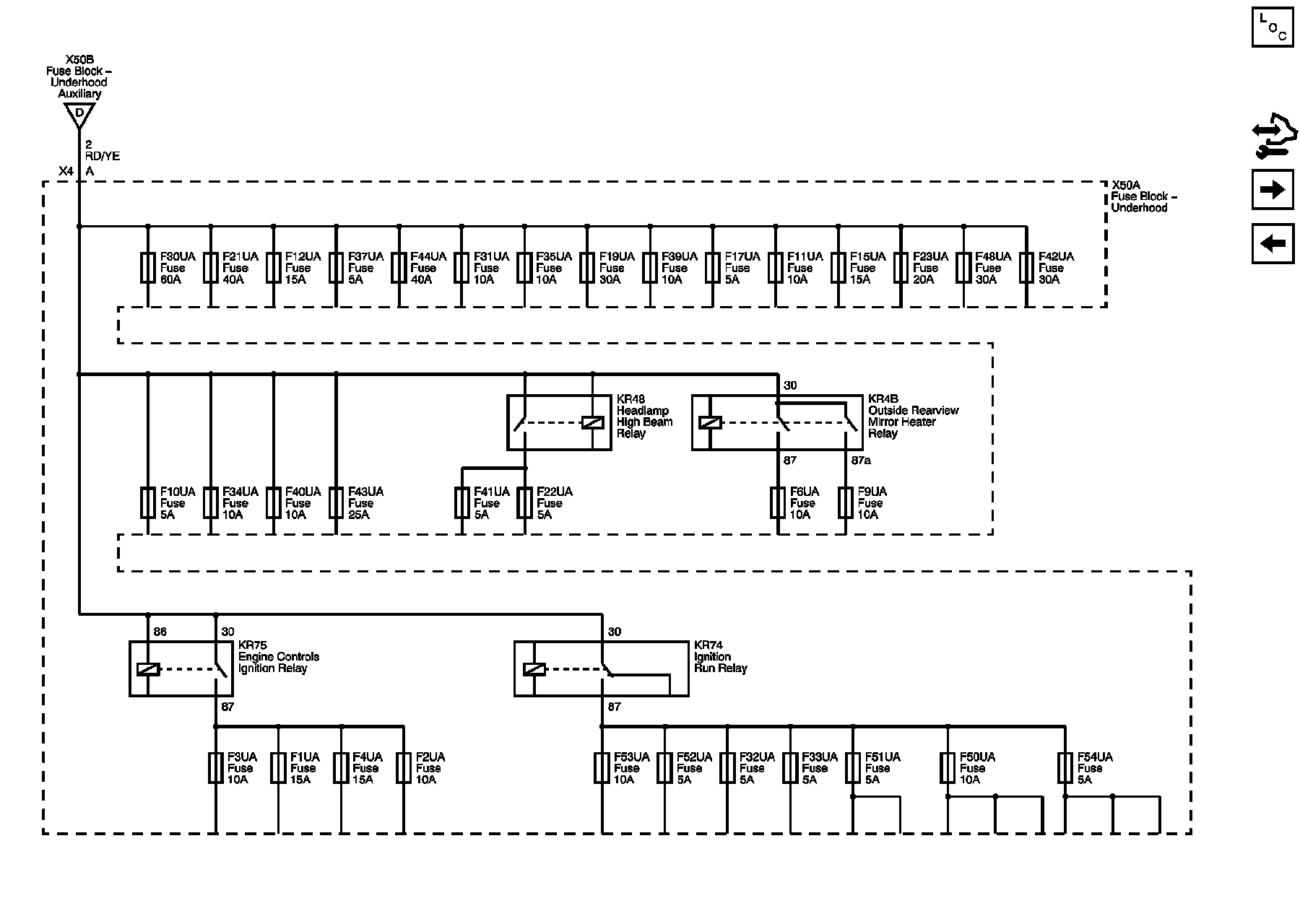

X50A Fuse Block - Underhood Bussing

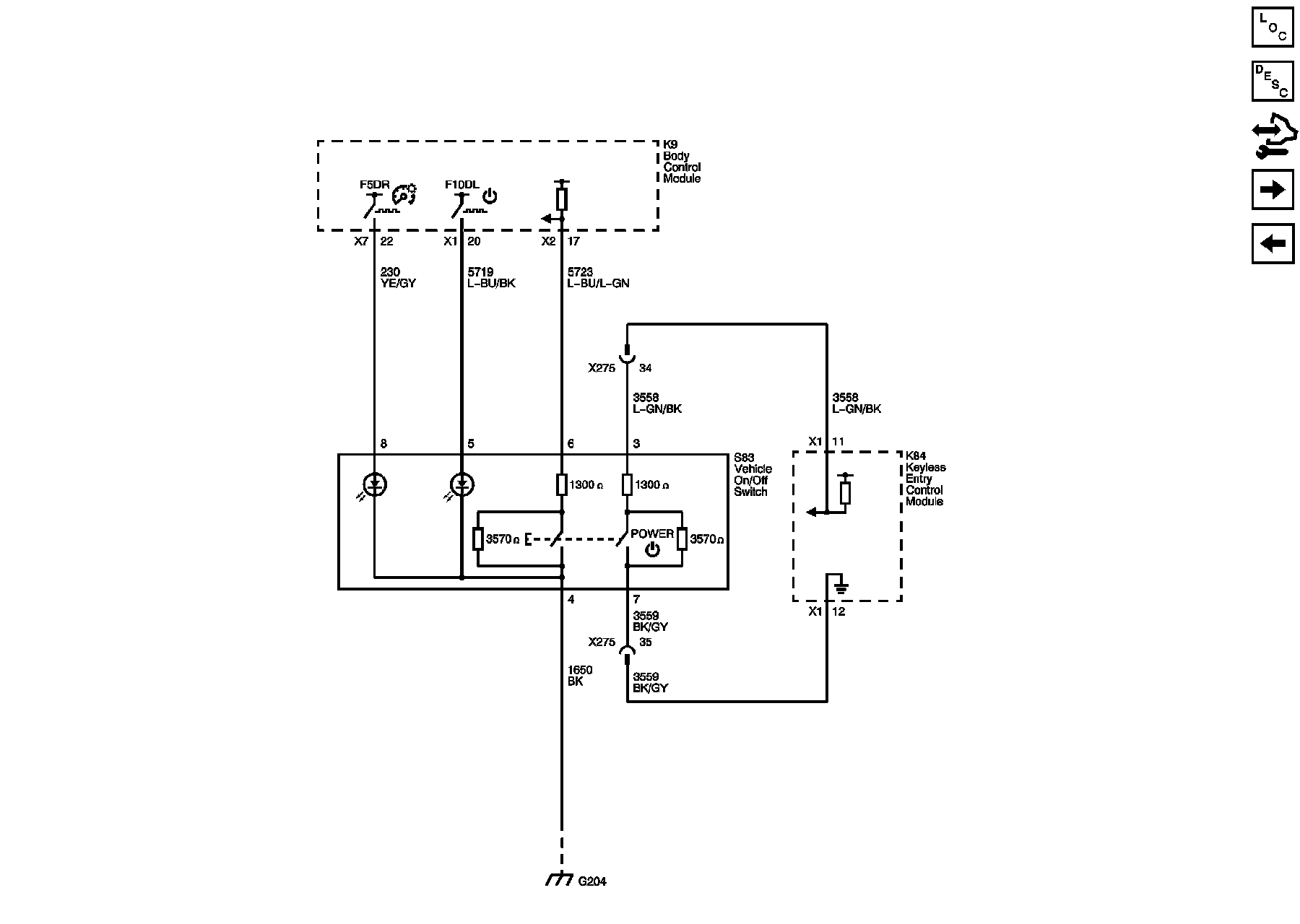

S83 Vehicle On/Off Switch

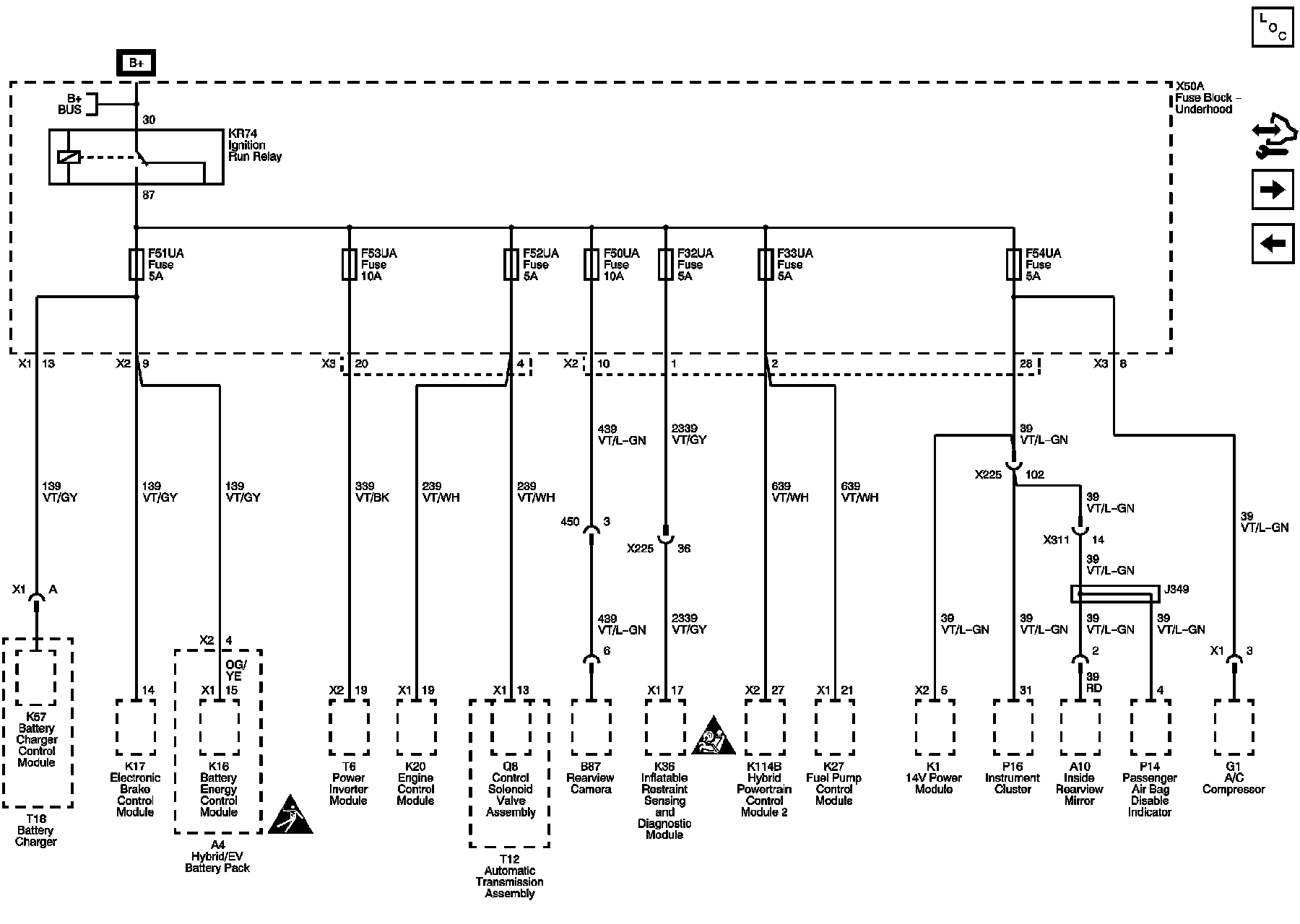

F32UA, F33UA, F50UA, F51UA, F52UA, F53UA and F54UA Fuses

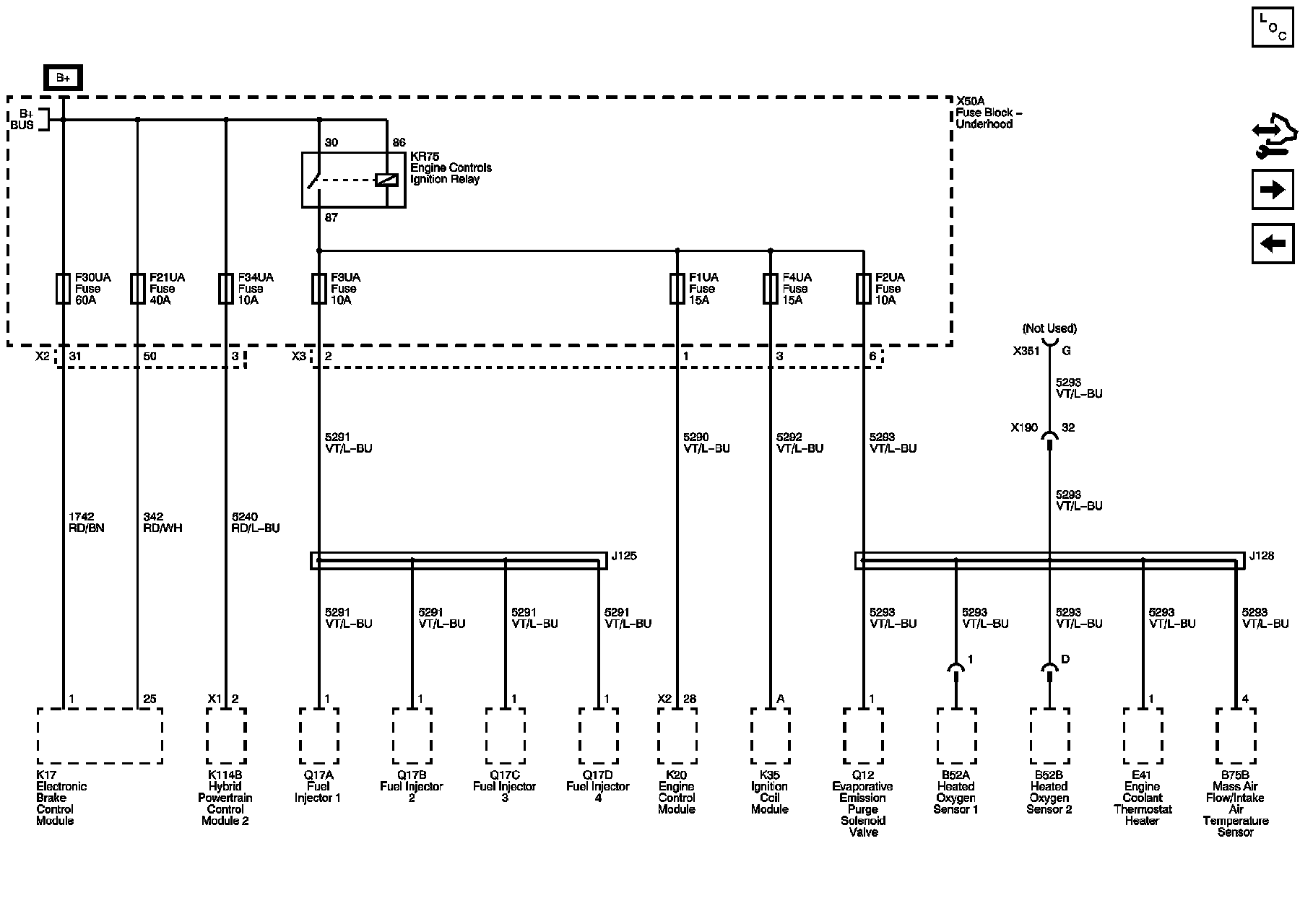

F1UA, F2UA, F3UA, F4UA, F21UA, F30UA and F34UA Fuses

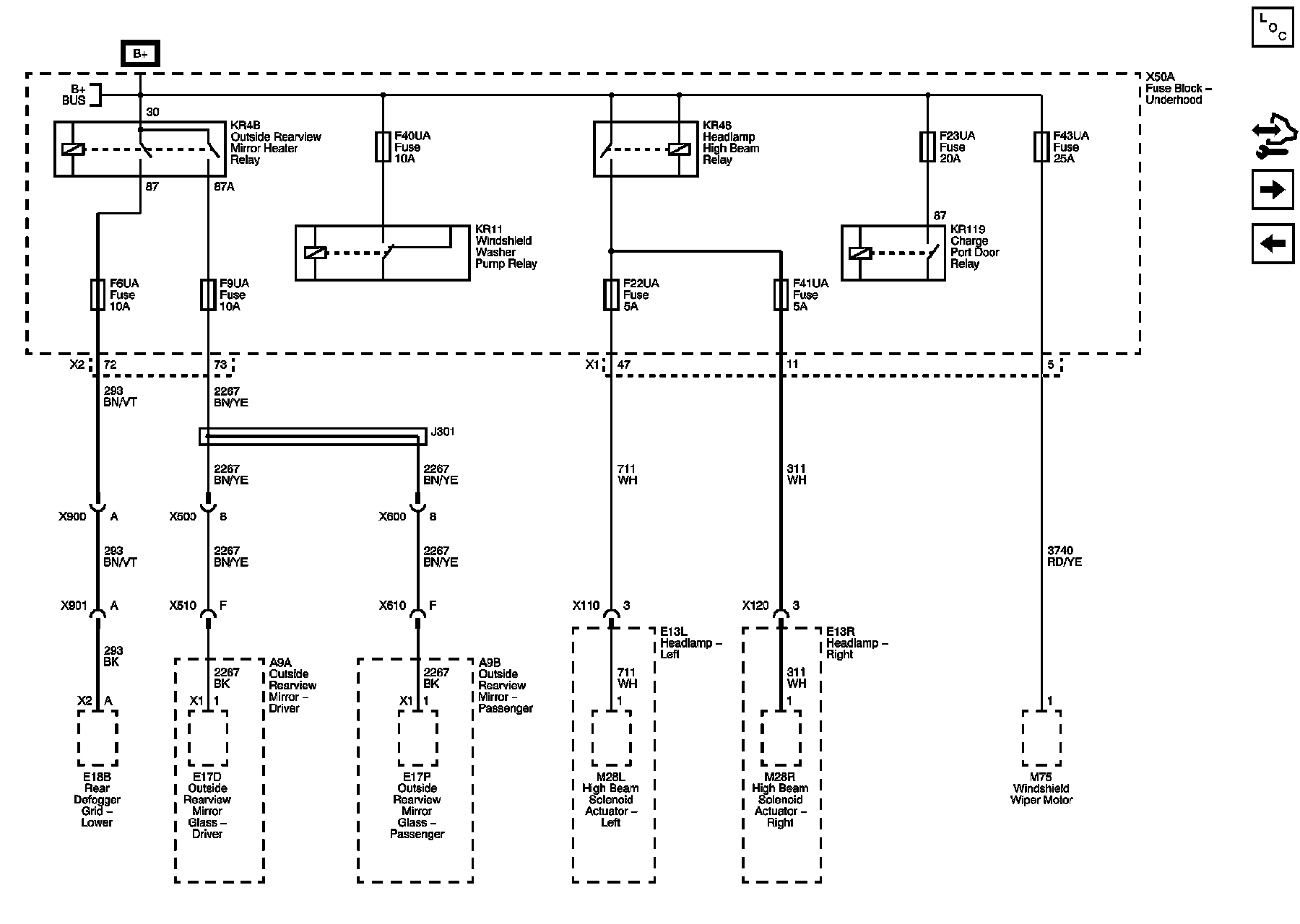

F6UA, F9UA, F22UA, F23UA, F40UA, F41UA and F43UA Fuses

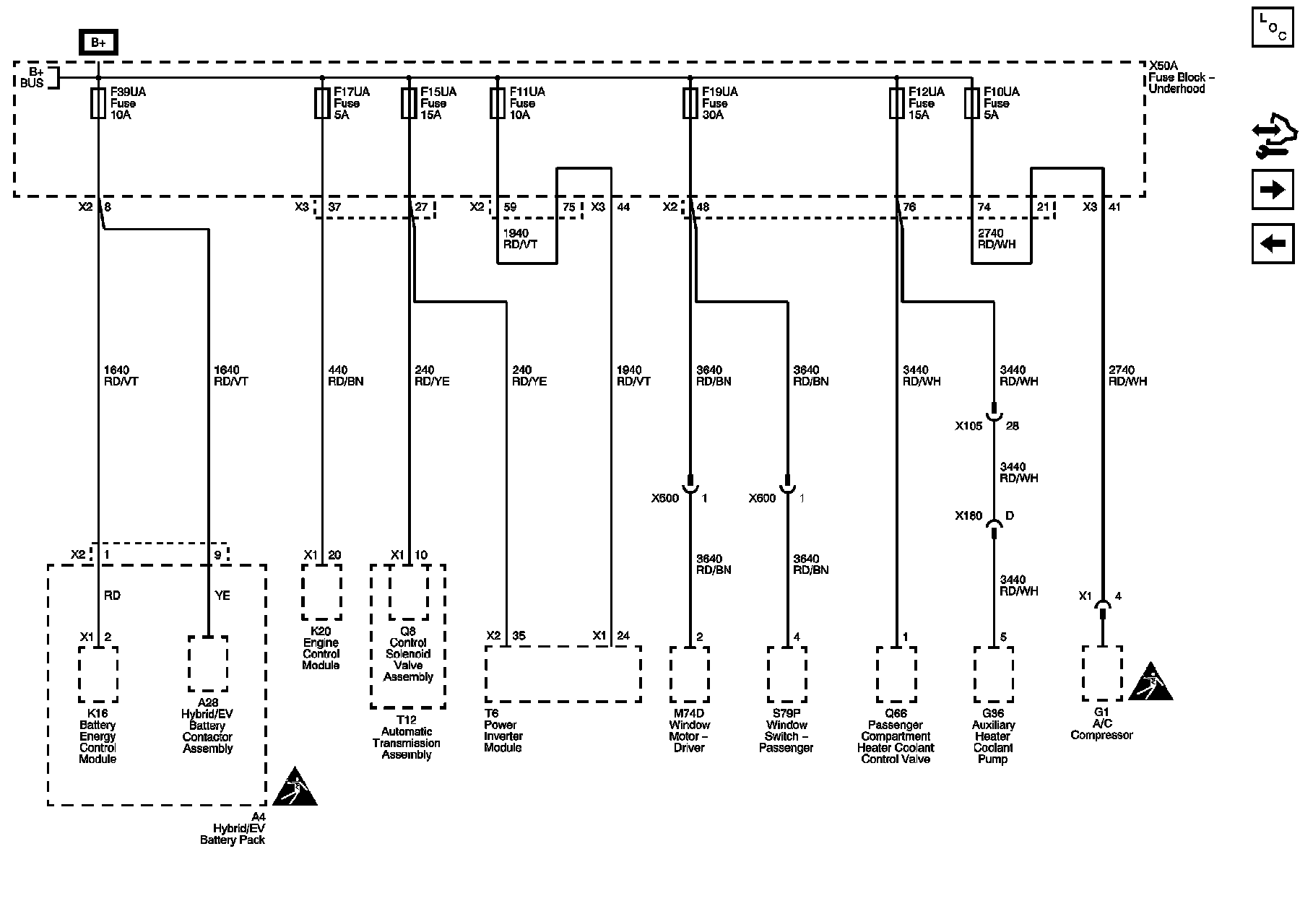

F10UA, F11UA, F12UA, F15UA, F17UA, F19UA and F39UA Fuses

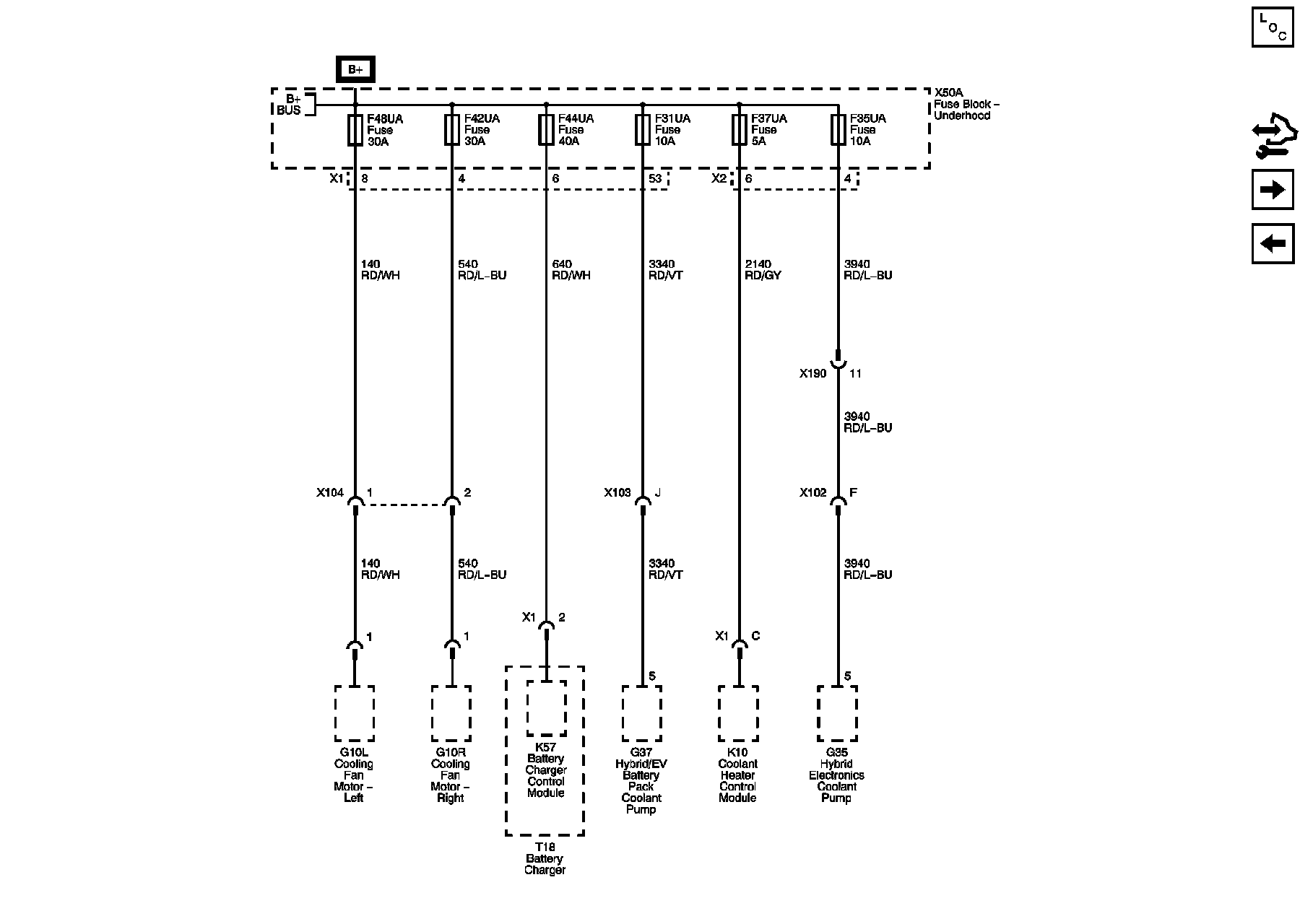

F31UA, F35UA, F37UA, F42UA, F44UA and F48UA Fuses

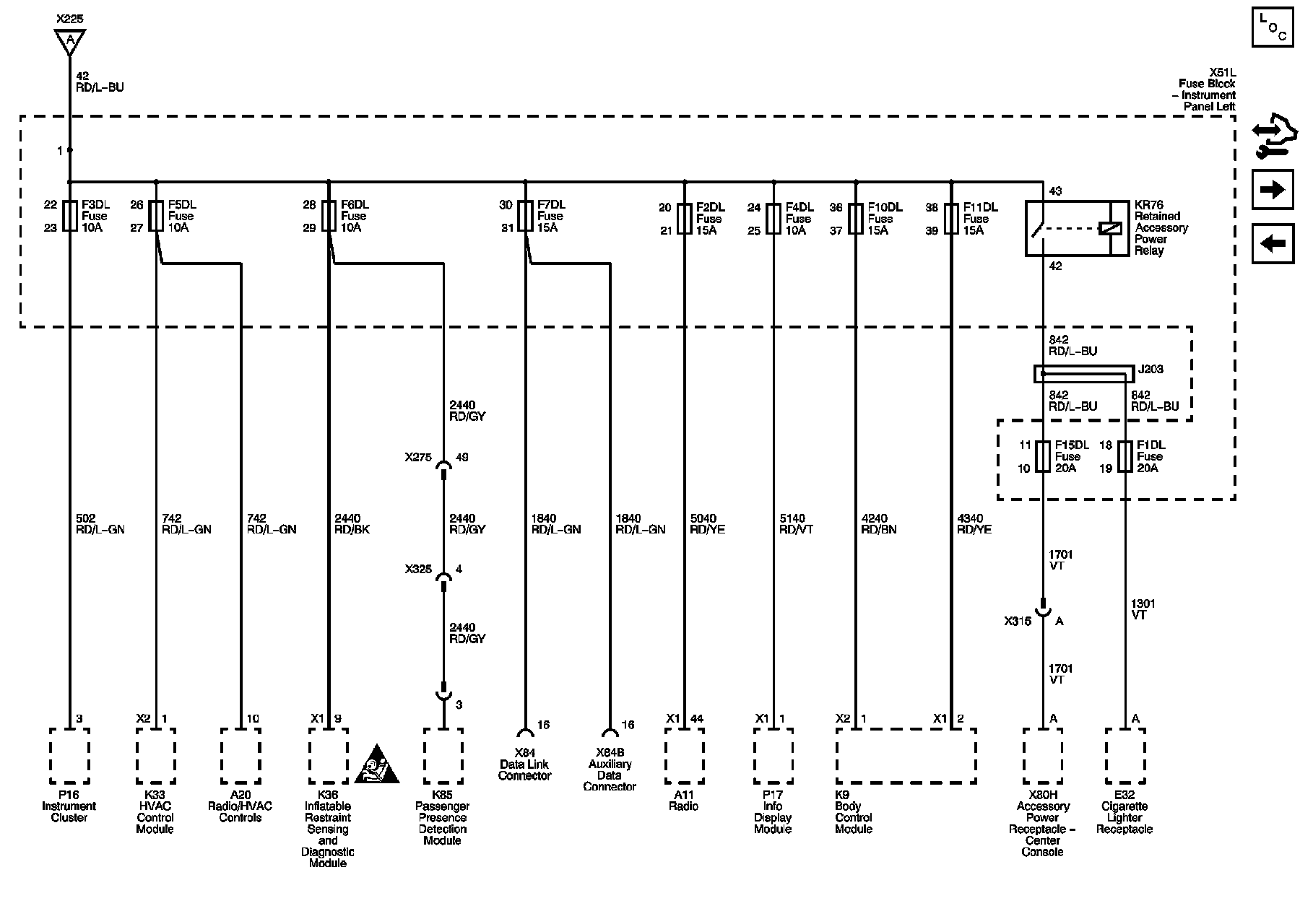

F1DL, F2DL, F3DL, F4DL, F5DL, F6DL, F7DL, F10DL, F11DL and F15DL Fuses

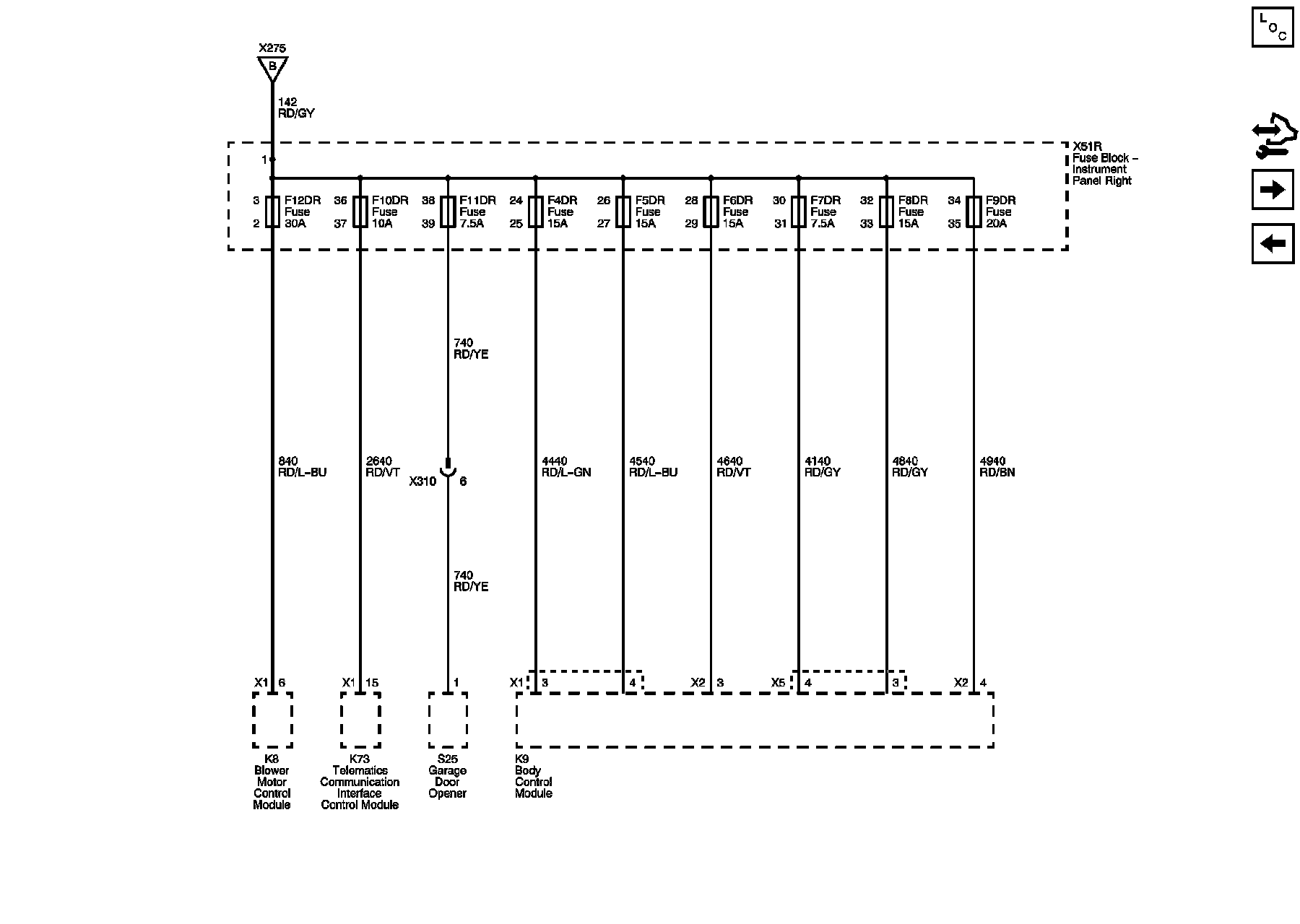

F4DR, F5DR, F6DR, F7DR, F8DR, F9DR, F10DR, F11DR and F12DR Fuses

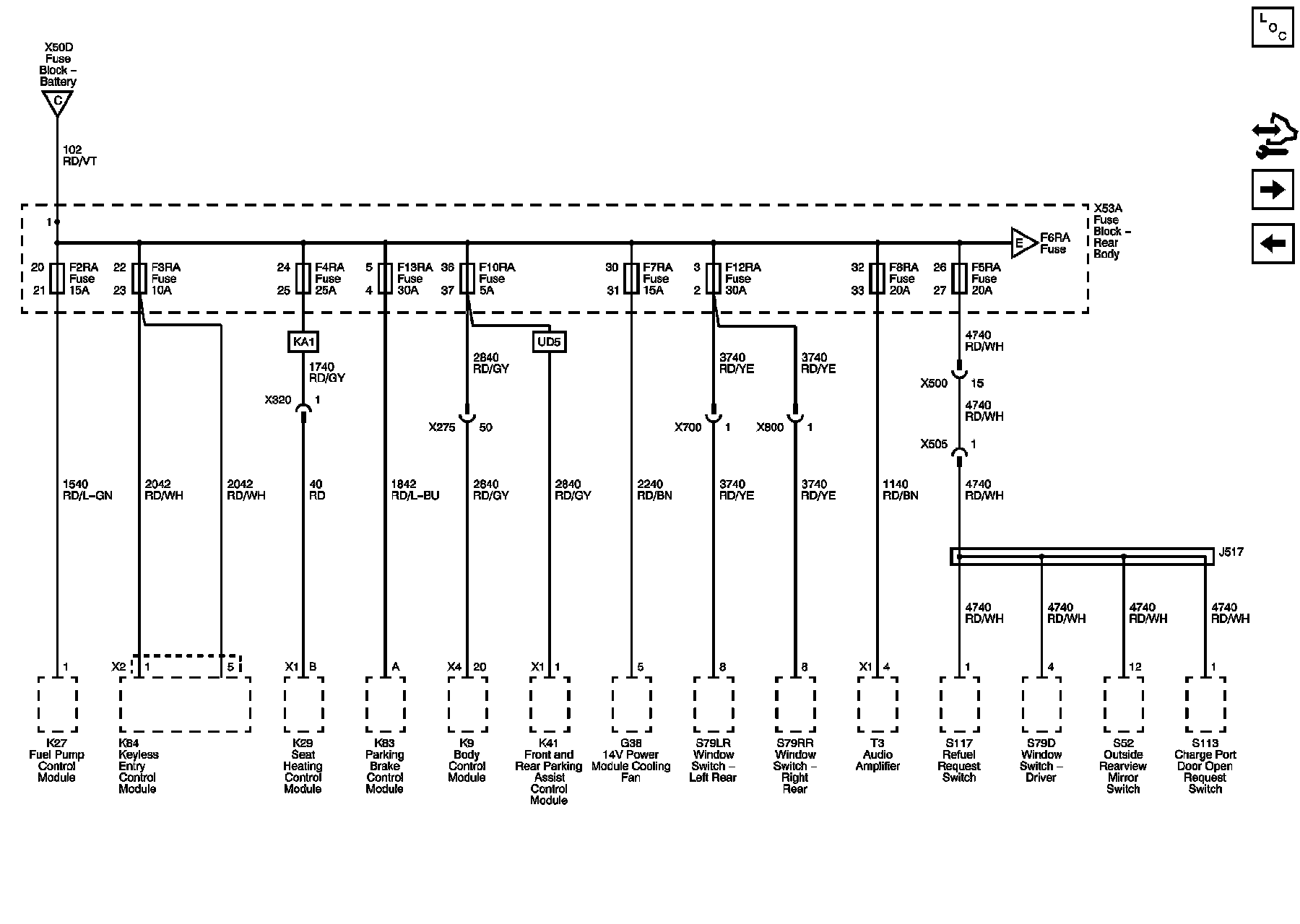

F2RA, F3RA, F4RA, F5RA, F7RA, F8RA, F10RA, F12RA and F13RA Fuses

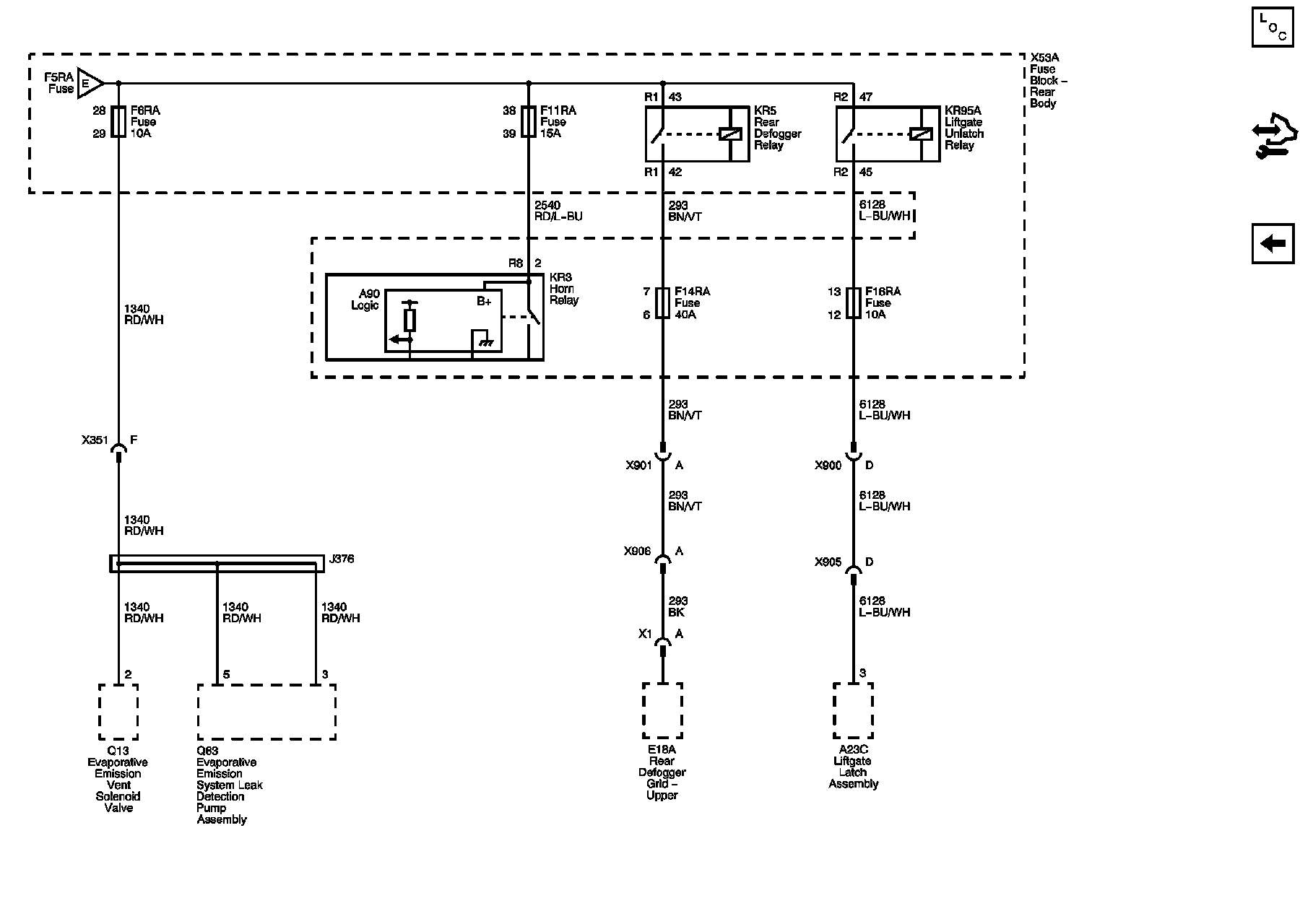

F6RA, F11RA, F14RA and F16RA Fuses
