Hybrid Controls Schematics




Hybrid Controls Schematics

Power, Ground and Data Communication

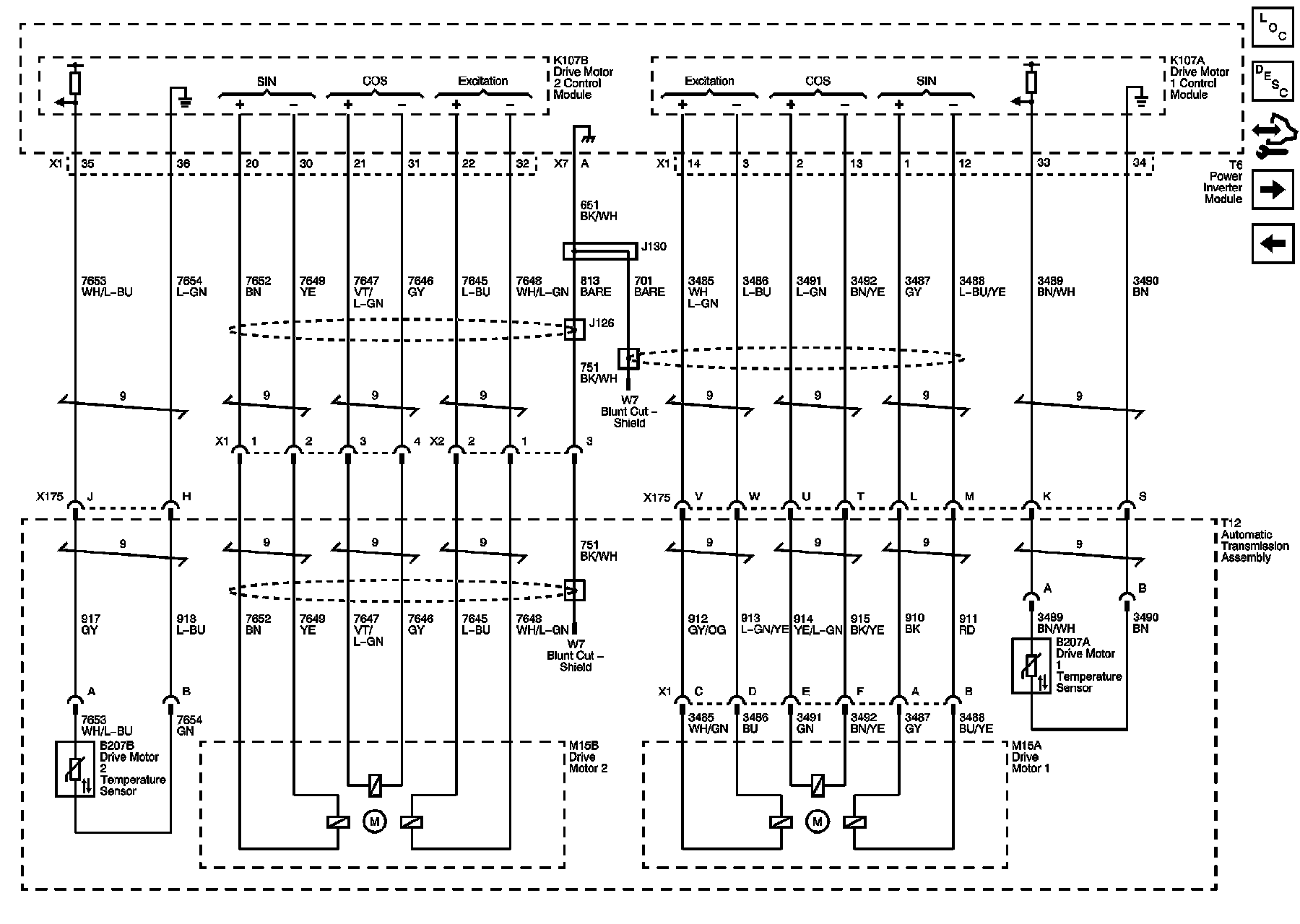

Drive Motors Monitoring

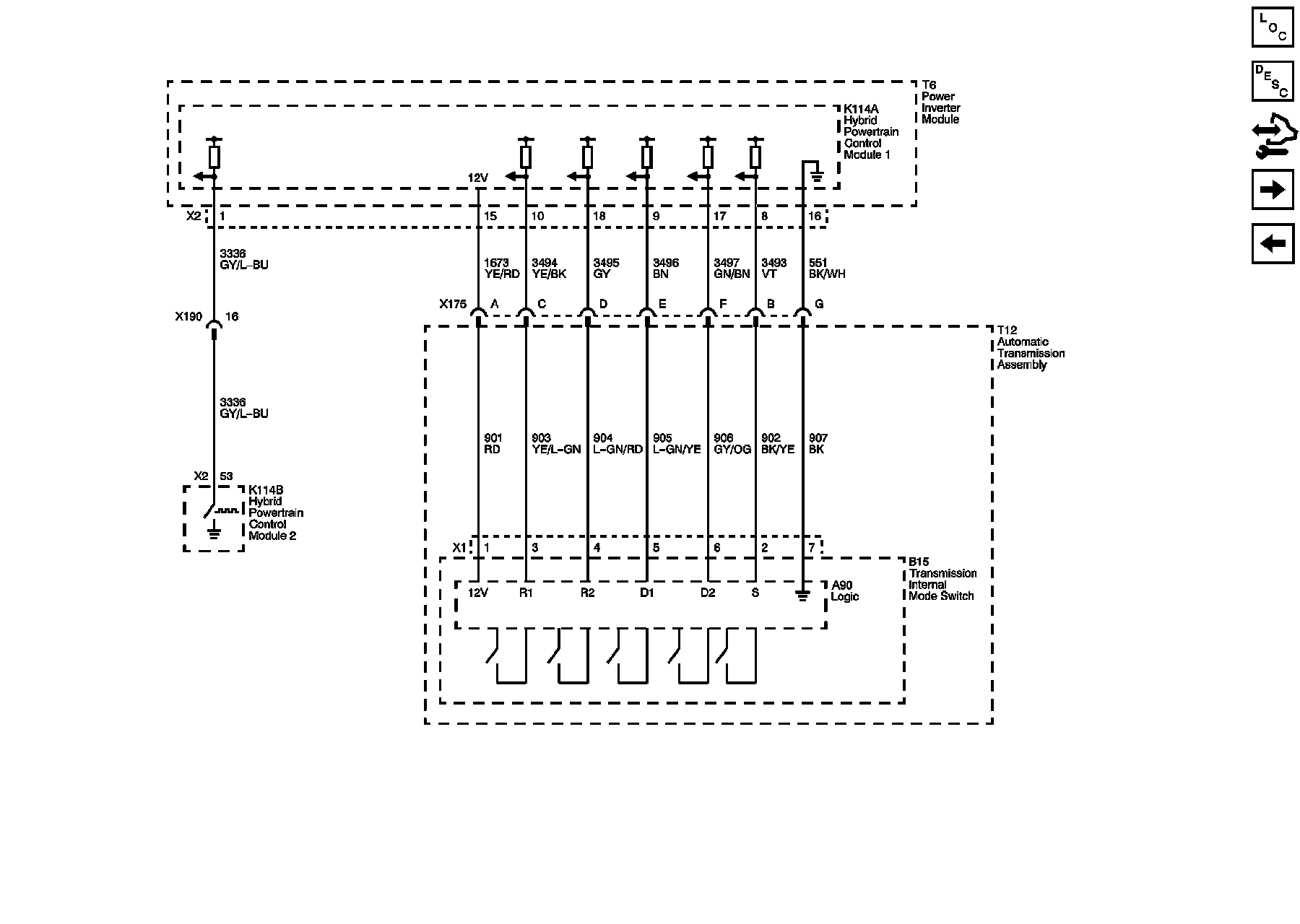

Transmission Internal Mode Switch

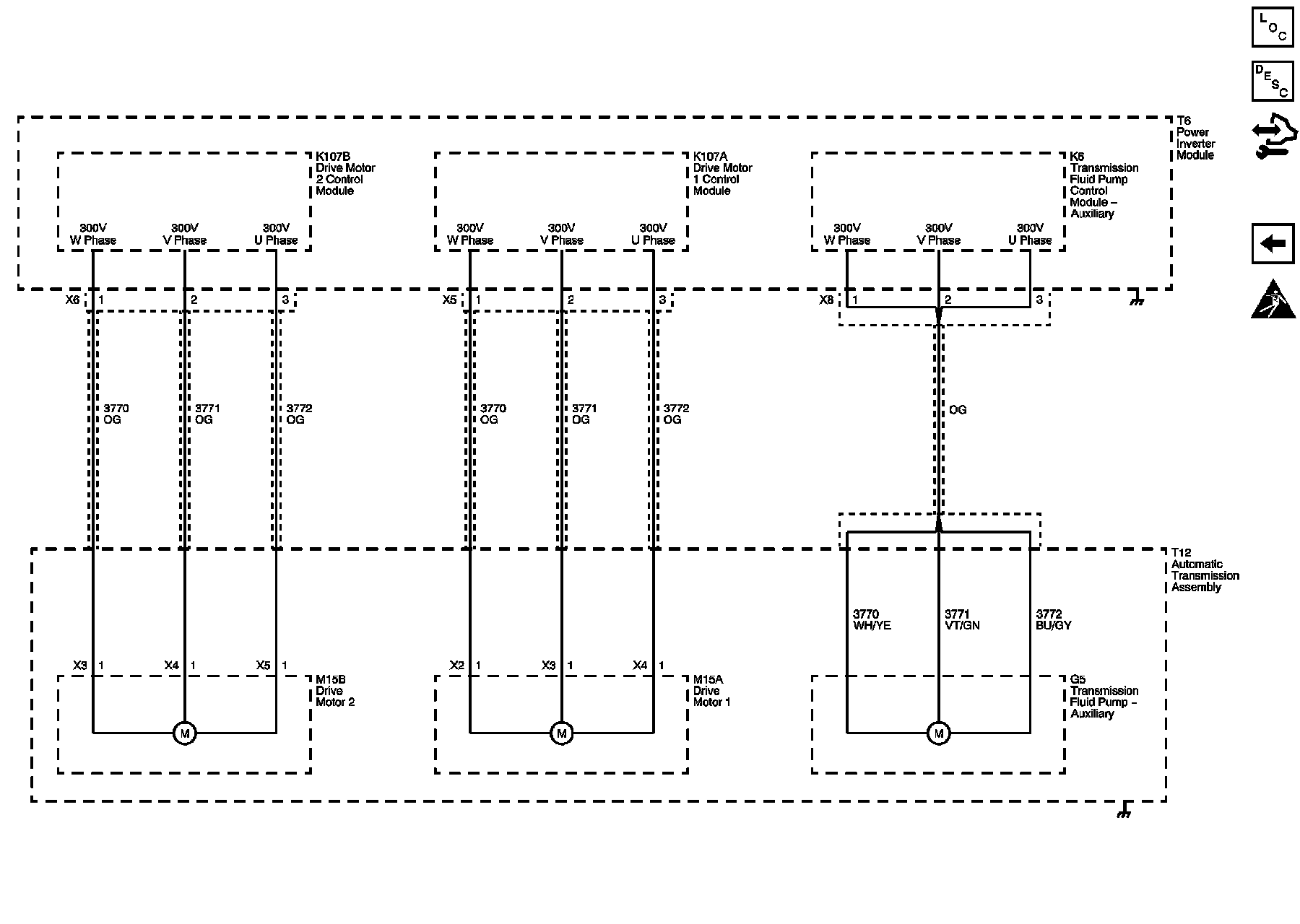

Drive Motors and Transmission Fluid Pump Controls
