14V Power Module Jumper Connector




Component Connector End Views

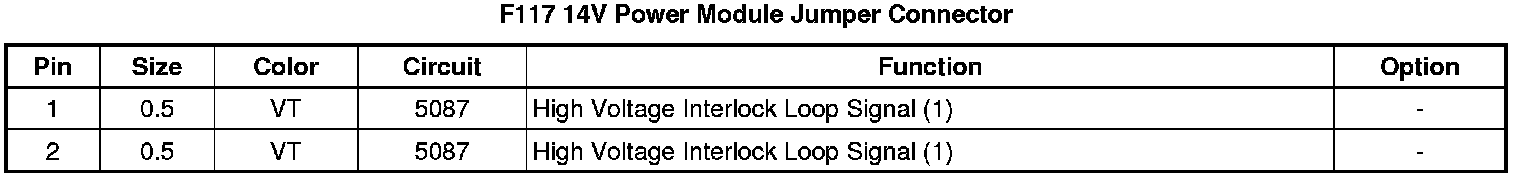

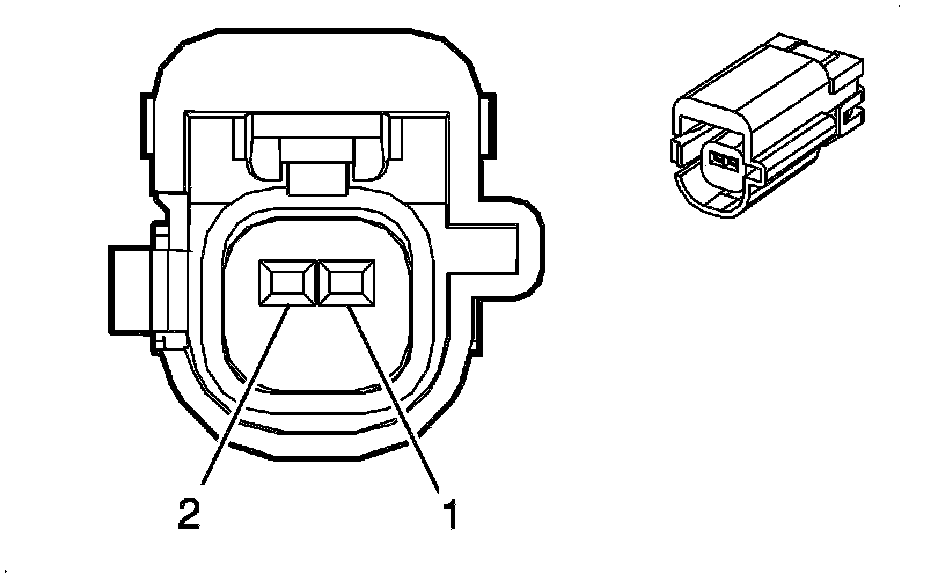

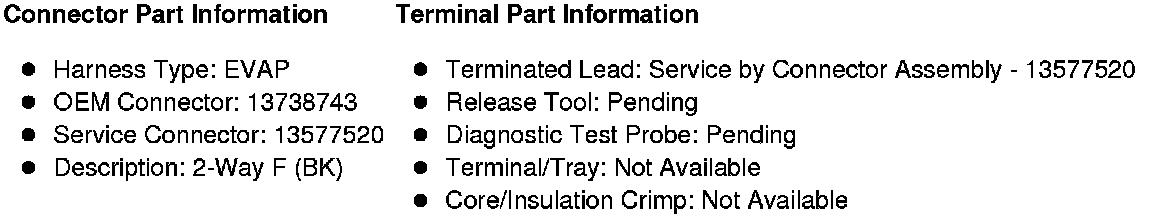

F117 14V Power Module Jumper Connector
