Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Diagrams >> Connector Views >> Hybrid Drive Systems >> Hybrid Power Control Module >> Hybrid Powertrain Control Module 2 X2

Hybrid Powertrain Control Module 2 X2




Component Connector End Views

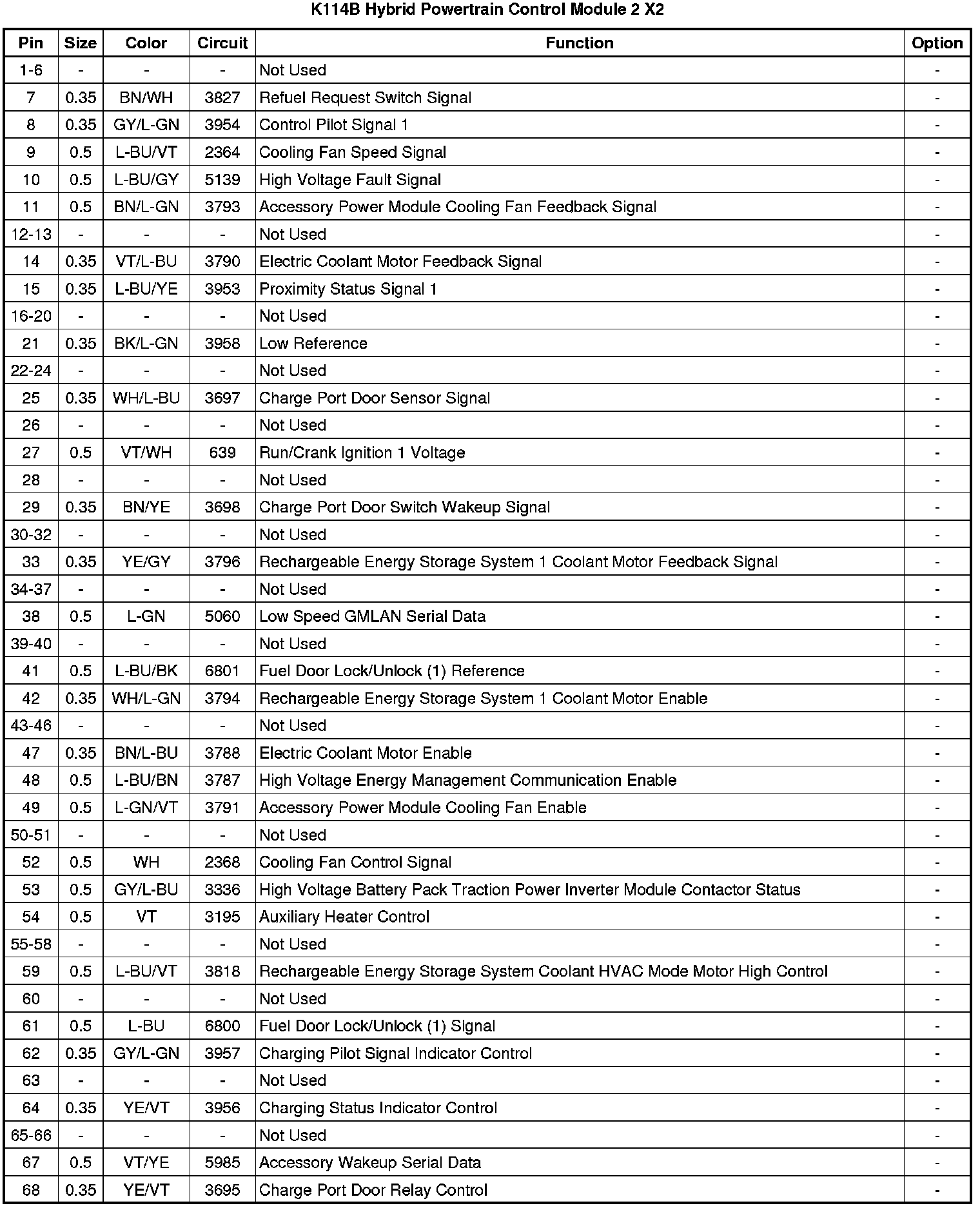

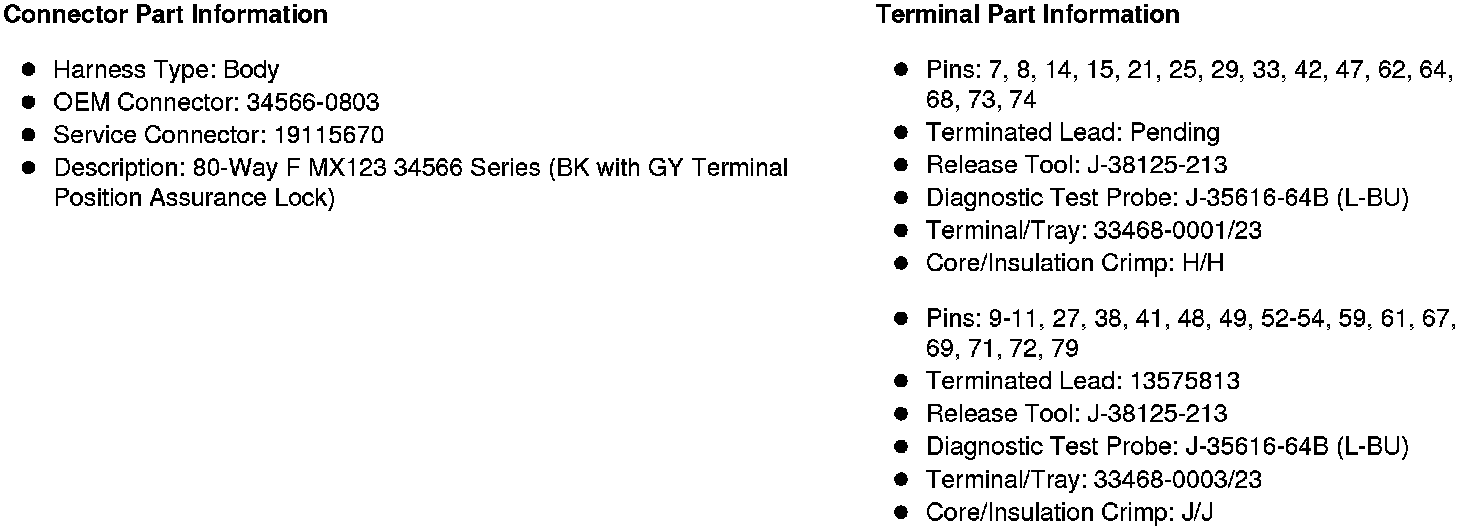

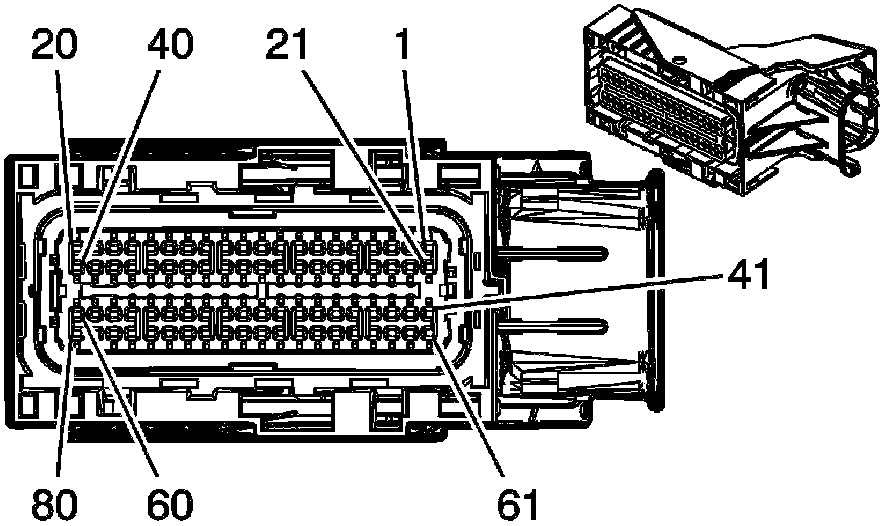

K114B Hybrid Powertrain Control Module 2 X2
