Hybrid Powertrain Control Module 2 X1

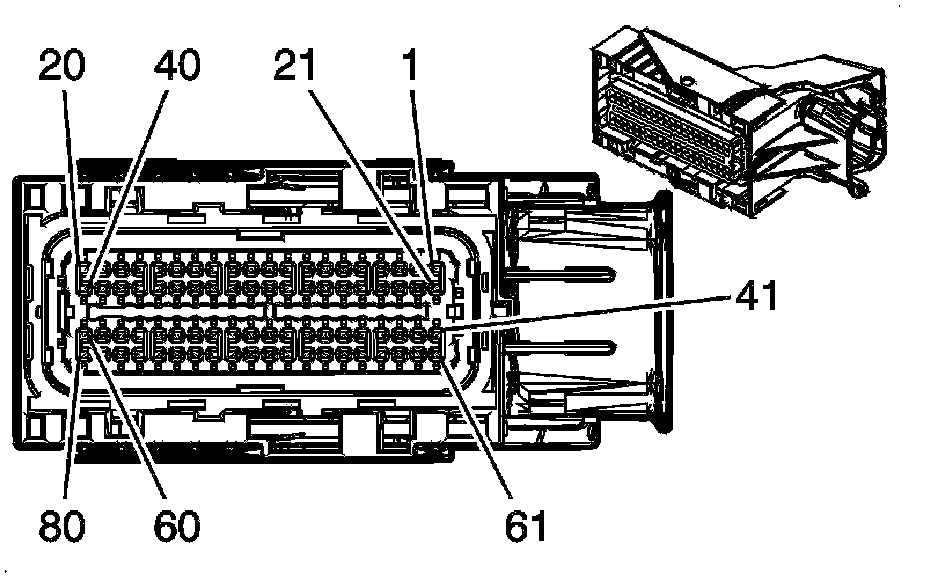

Component Connector End Views

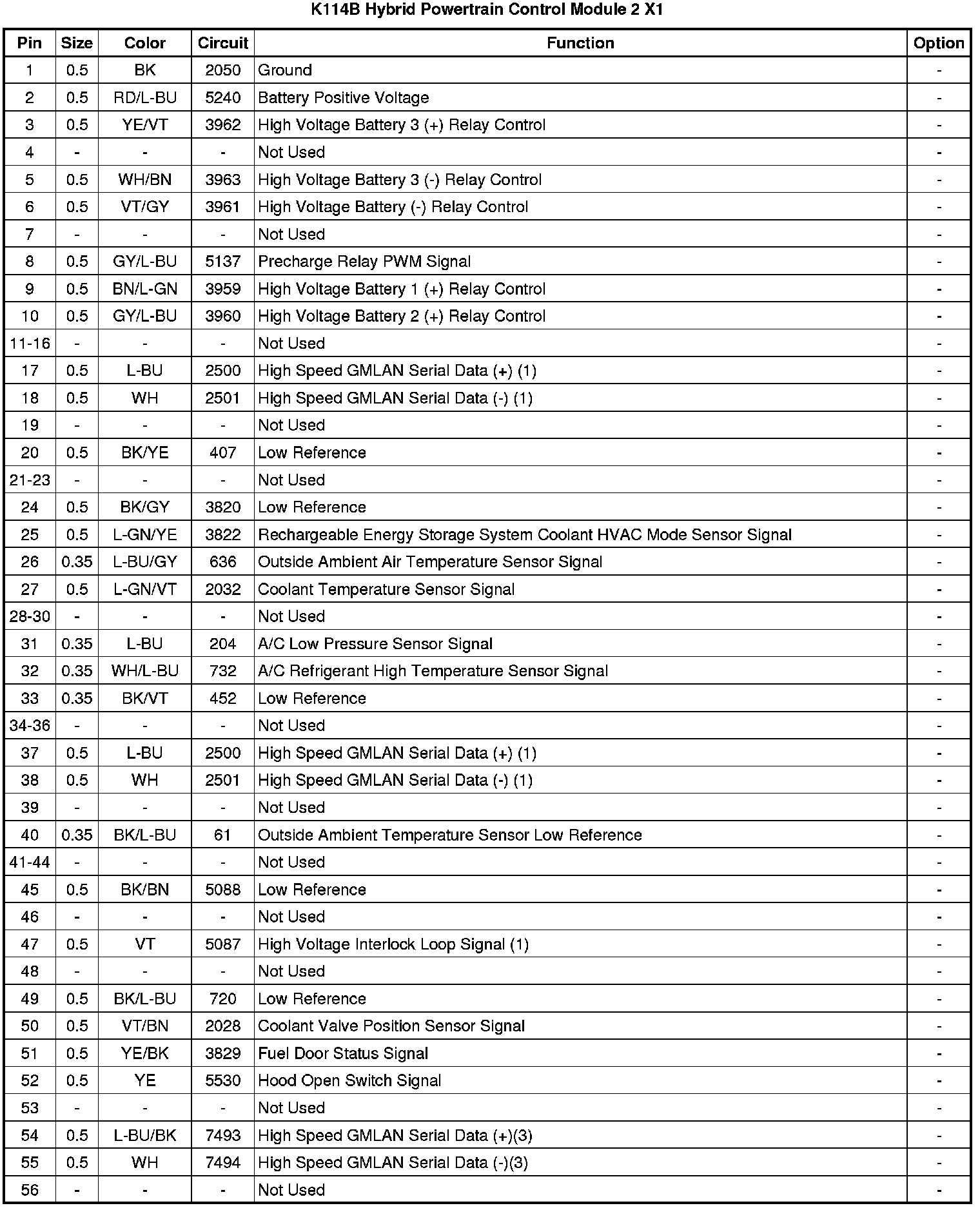

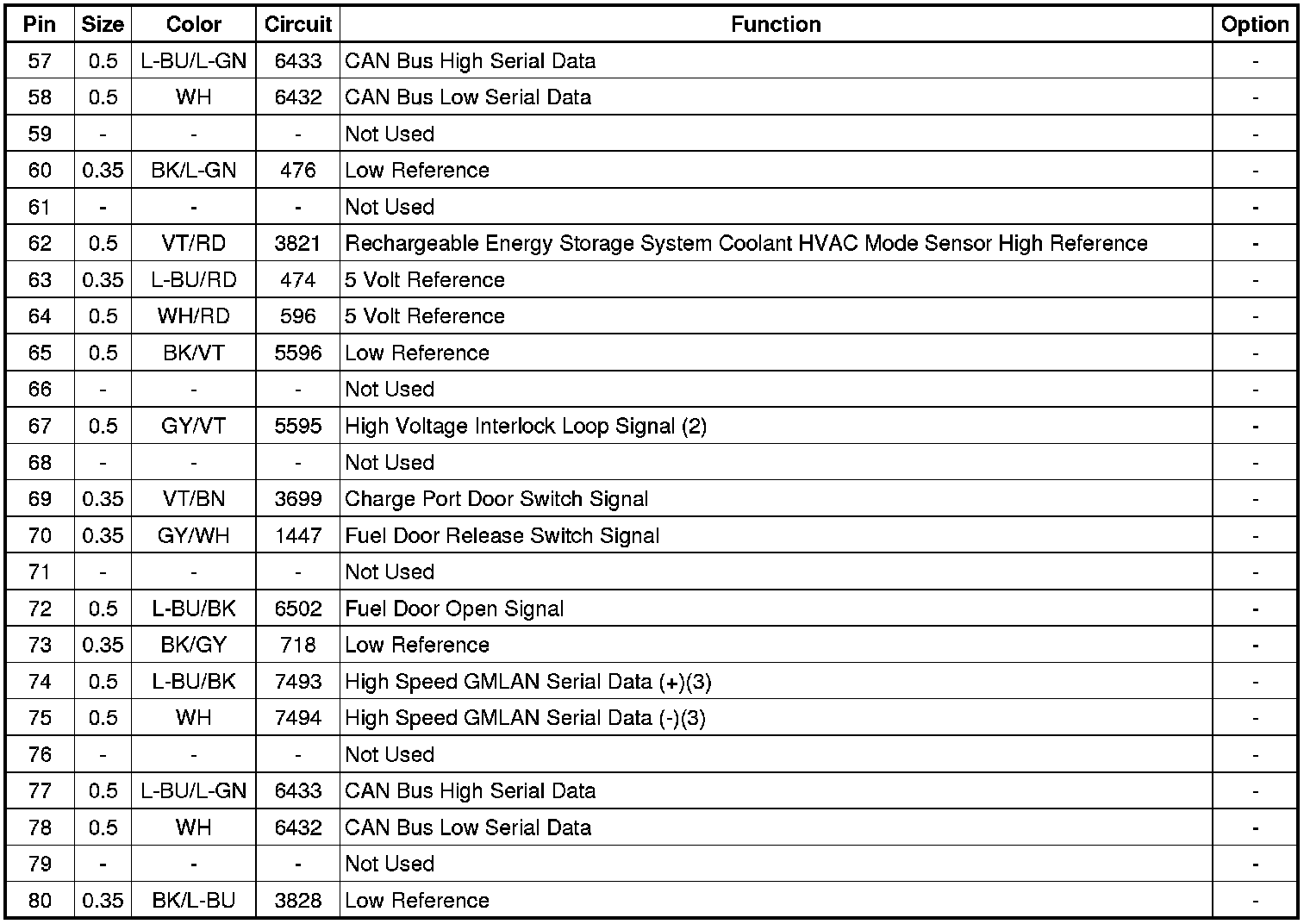

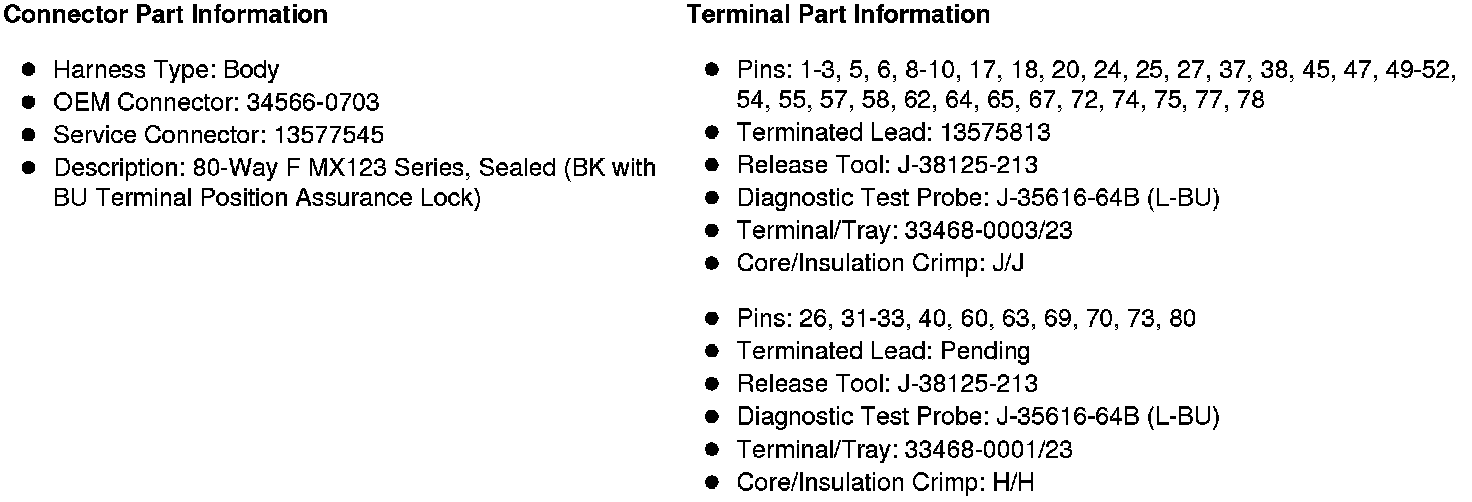

K114B Hybrid Powertrain Control Module 2 X1
