Hybrid/EV Battery Interface Control Module 3 X3

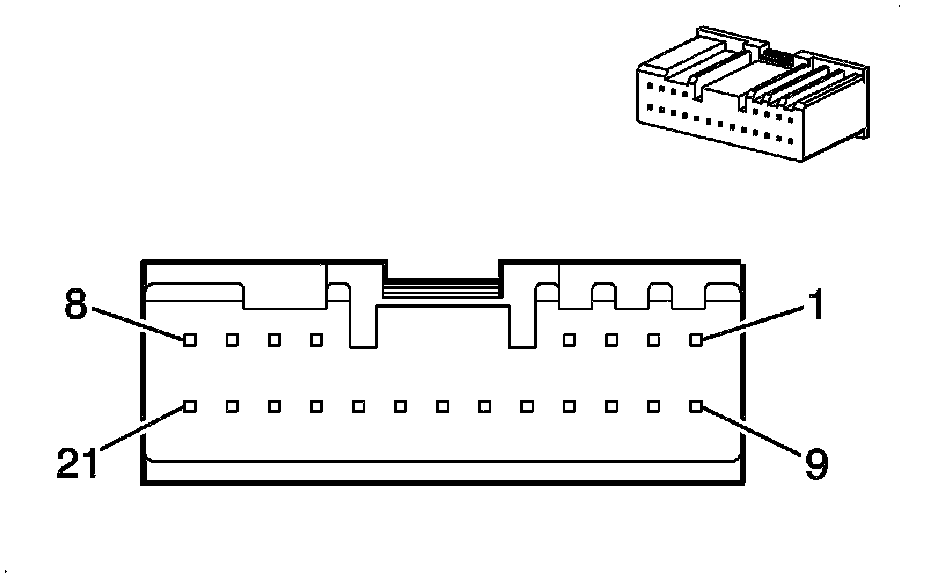

Component Connector End Views

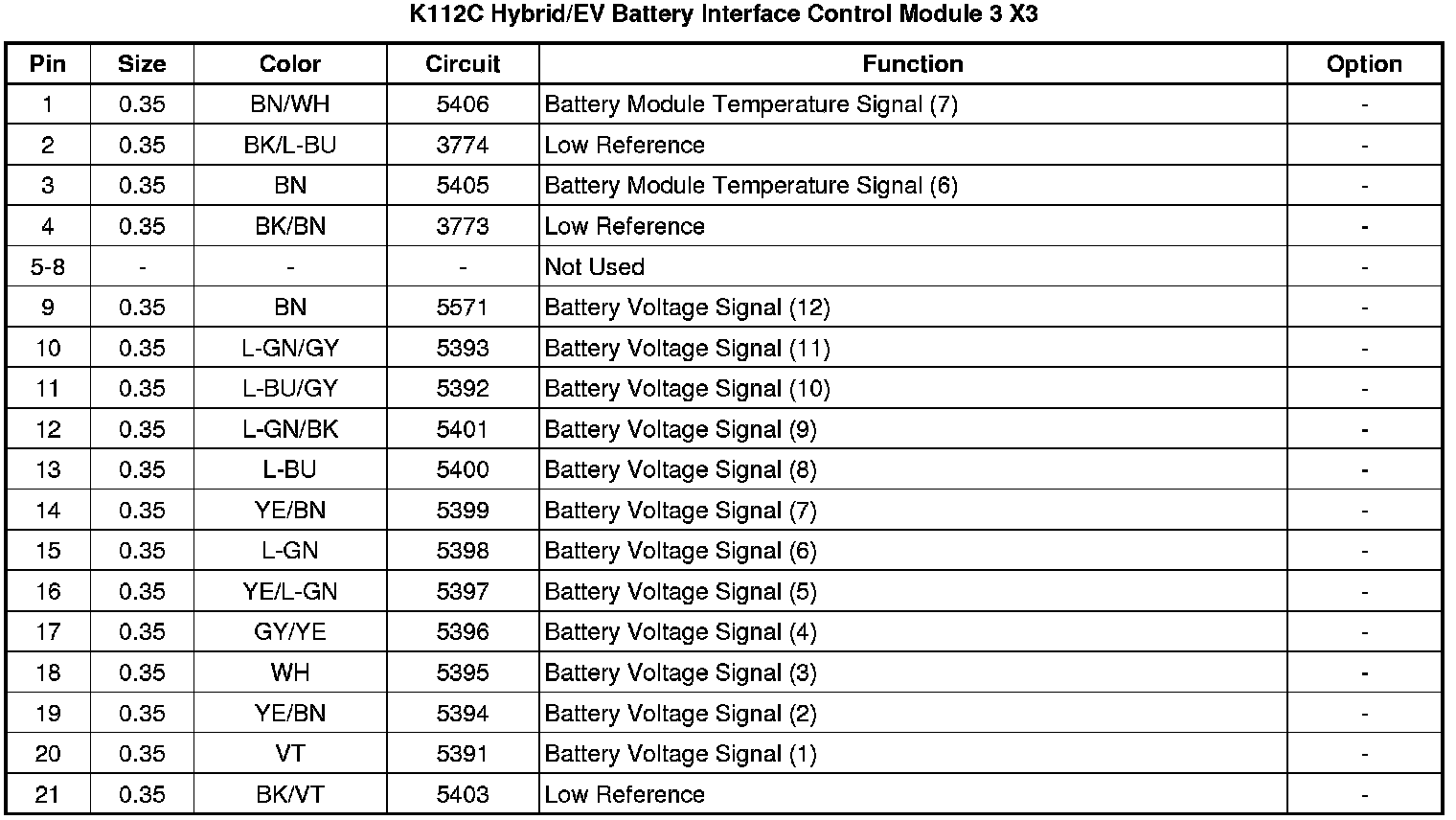

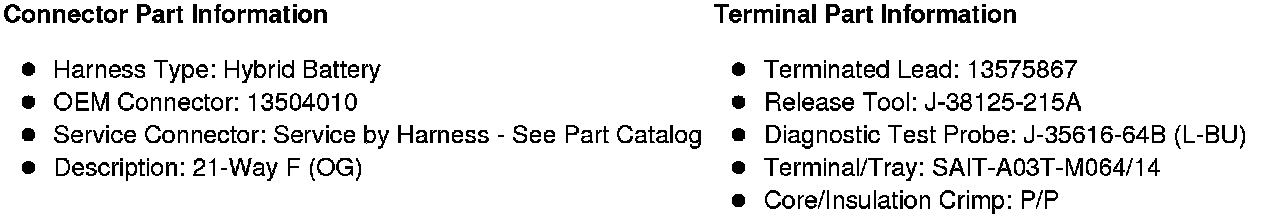

K112C Hybrid/EV Battery Interface Control Module 3 X3
