Hybrid/EV Battery Interface Control Module 3 X2
Hybrid/EV Battery Interface Control Module 3 X2
Component Connector End Views

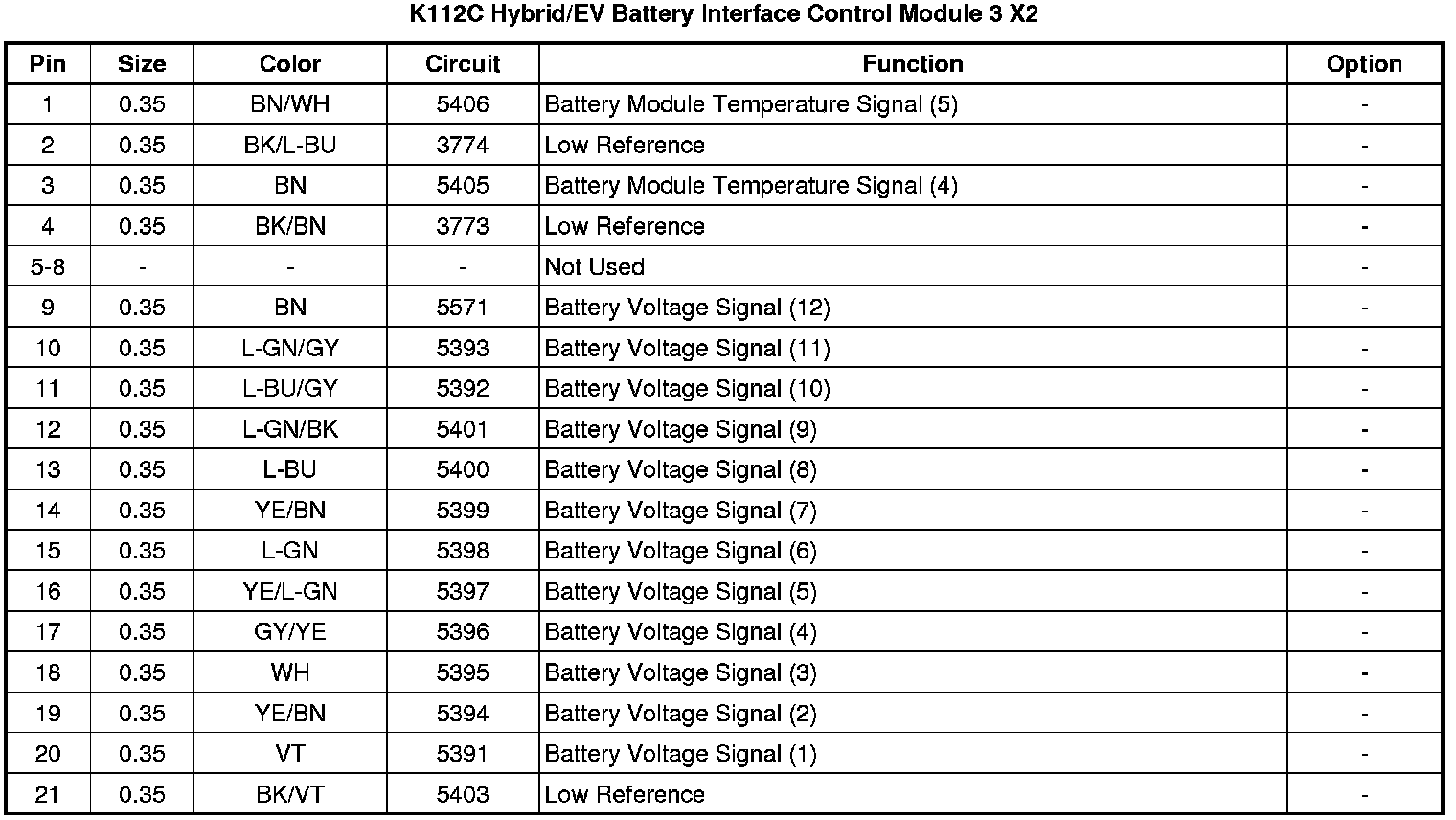

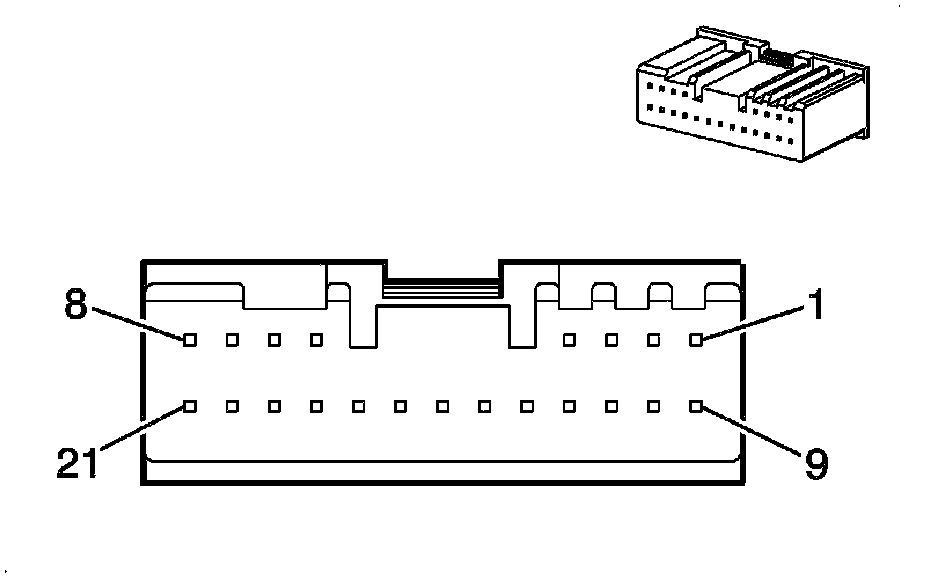

K112C Hybrid/EV Battery Interface Control Module 3 X2
