Rear Object Sensor - Right Outer




Component Connector End Views

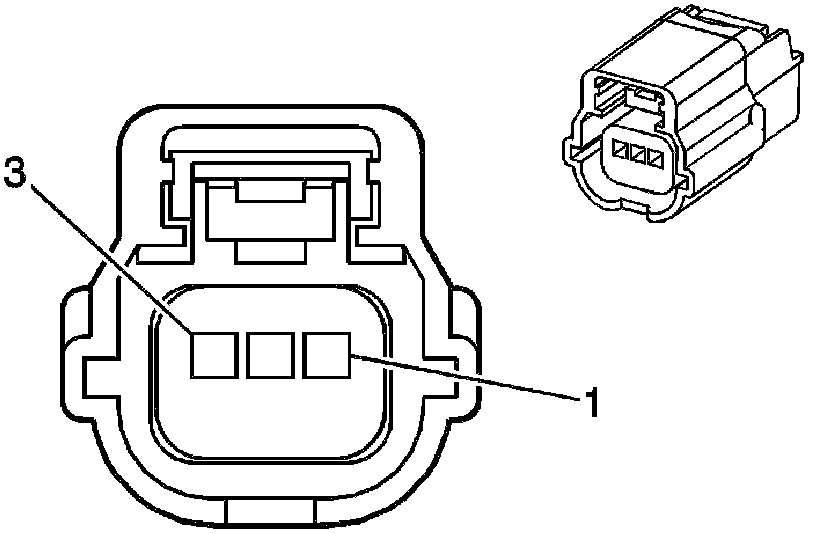

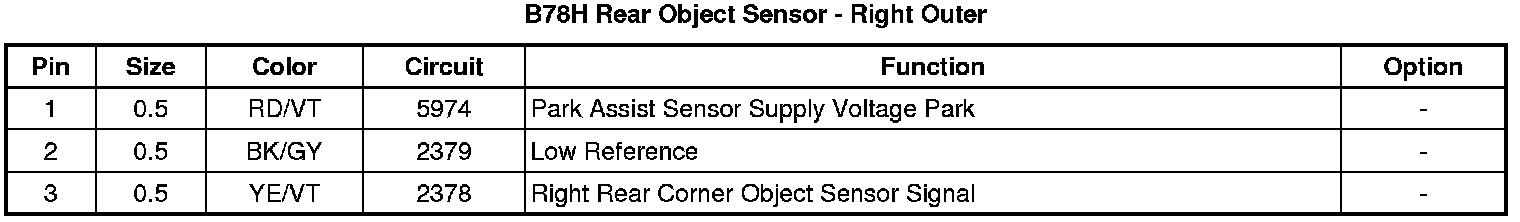

B78H Rear Object Sensor - Right Outer
