Front Object Sensor - Right Middle




Component Connector End Views

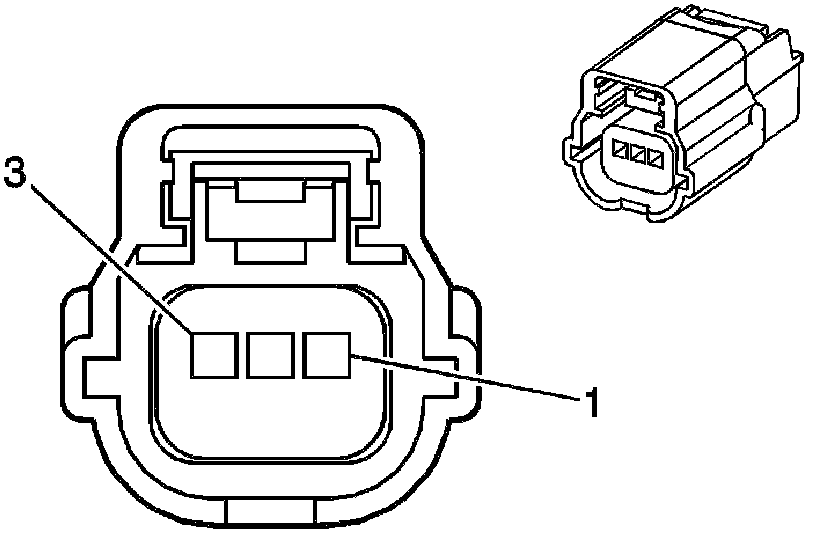

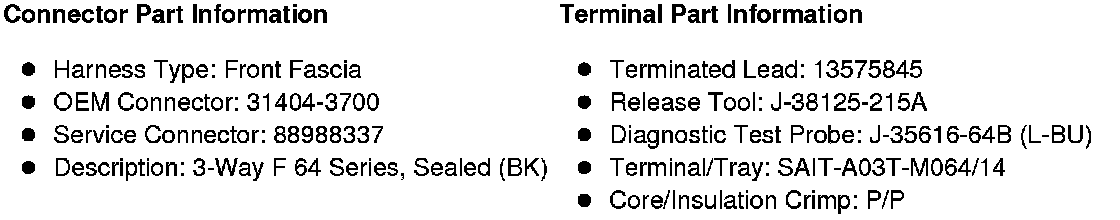

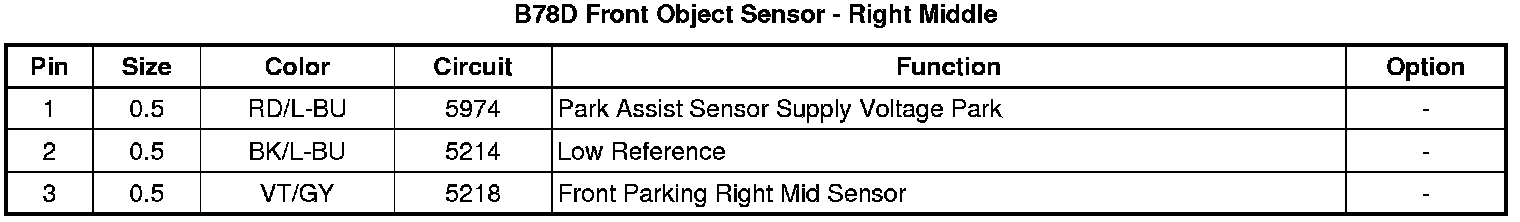

B78D Front Object Sensor - Right Middle
