Telematics Communication Interface Module X2

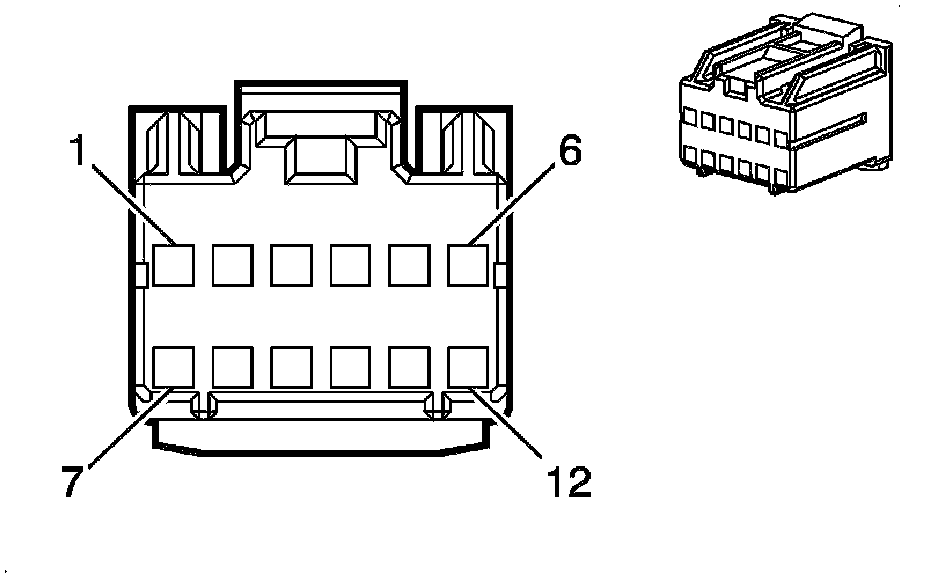

Component Connector End Views

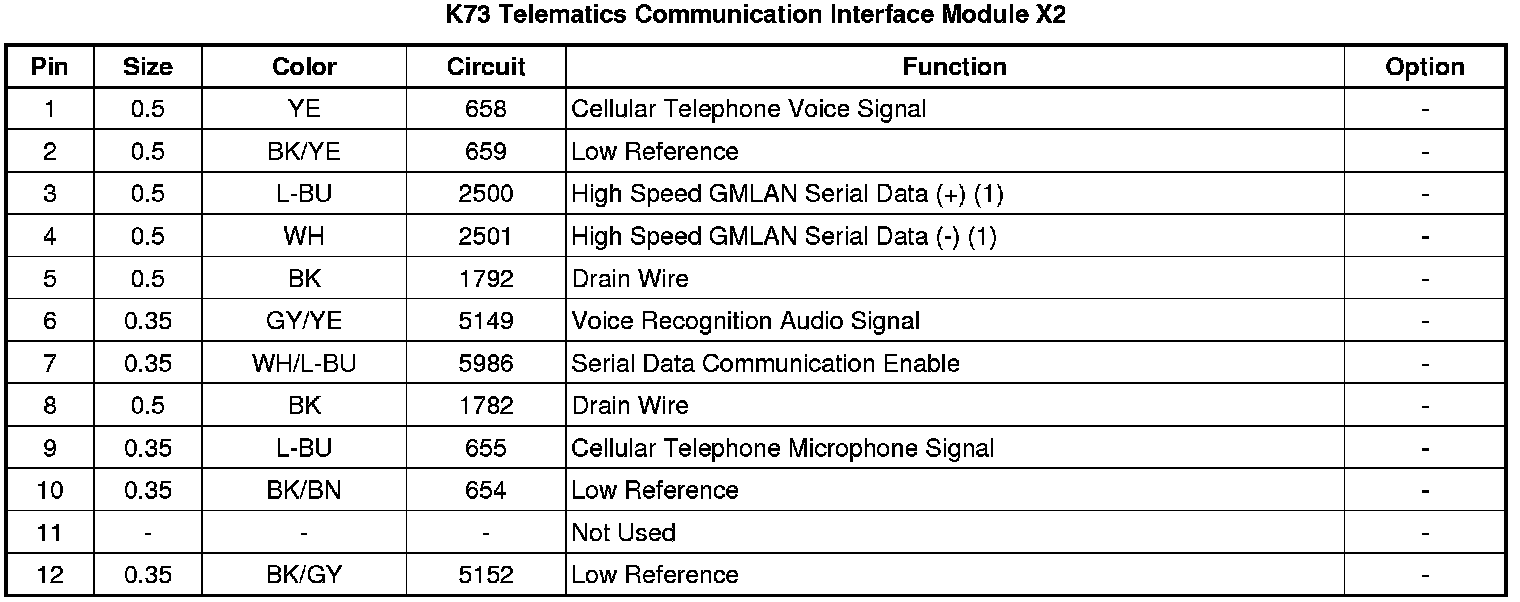

K73 Telematics Communication Interface Module X2
