Rear Hatch/Gate Ajar Indicator Malfunction




Rear Hatch/Gate Ajar Indicator Malfunction

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

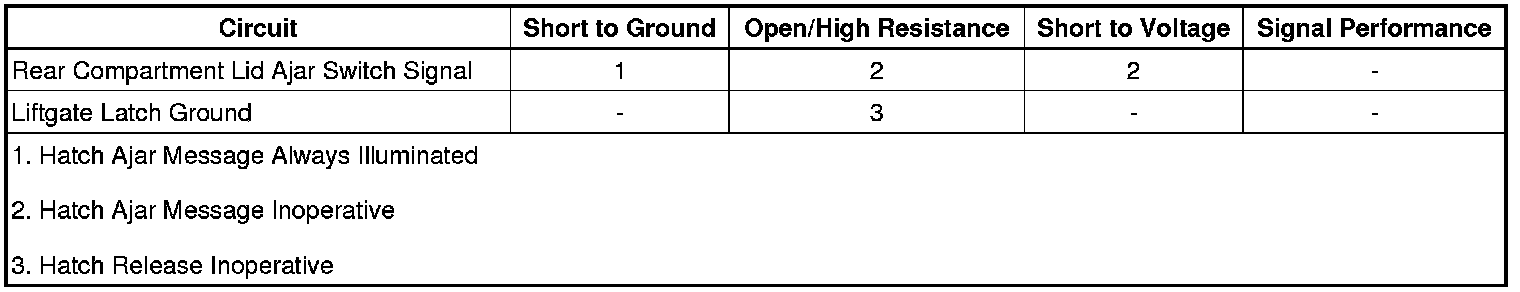

Diagnostic Fault Information






Circuit/System Description

The body control module (BCM) supplies a 12V signal to the rear compartment lid ajar switch signal circuit. When the liftgate latch releases the rear hatch, the rear compartment lid ajar switch, which is internal to the liftgate latch, is supplied with ground which causes the rear hatch/gate ajar switch signal circuit to be pulled low. The BCM interprets this and communicates via serial data to the driver information center which will display the Hatch Open message.

Reference Information
Schematic Reference

Release Systems Schematics (Release) Release Systems Schematics (Release)Release Systems Schematics (Liftgate) Release Systems Schematics (Liftgate)
Connector End View Reference

Component Connector End Views Hybrid/EV Battery Pack X1
Description and Operation

Liftgate Ajar Indicator Description and Operation Liftgate Ajar Indicator
Electrical Information Reference

* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Verification

Vehicle in Service Mode, observe the scan tool Rear Closure Ajar Switch parameter while opening and closing the rear hatch. The parameter should change between Inactive and Active.

Circuit/System Testing

1. Vehicle OFF, disconnect the harness connector at the A23C liftgate latch assembly.
2. Vehicle in Service Mode, verify the scan tool Rear Closure Ajar Switch parameter is Inactive.

If not the specified value, test the signal circuit terminal 2 for a short to ground. If the circuit tests normal, replace the K9 BCM.

3. Install a 3 A fused jumper wire between the signal circuit terminal 2 and ground. Verify the scan tool Rear Closure Ajar Switch parameter is Active.

If not the specified value, test the signal circuit for a short to voltage or and open/high resistance. If the circuit tests normal, replace the K9 BCM.

4. If all circuits test normal, test or replace the A23C liftgate latch assembly.

Component Testing

Static Test
1. Vehicle OFF, disconnect the harness connector at the A23C liftgate latch assembly.
2. Test for infinite resistance between the signal terminal 2 and the ground terminal 1 with the switch in the open position.

If not the specified value, replace the A23C liftgate latch assembly.

3. Test for less than 2 ohm between the signal terminal 2 and the ground terminal 1 with the switch in the closed position.

If greater than the specified range, replace the A23C liftgate latch assembly.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Liftgate Latch Replacement Service and Repair
* Control Module References Programming and Relearning for BCM replacement, programming and setup
