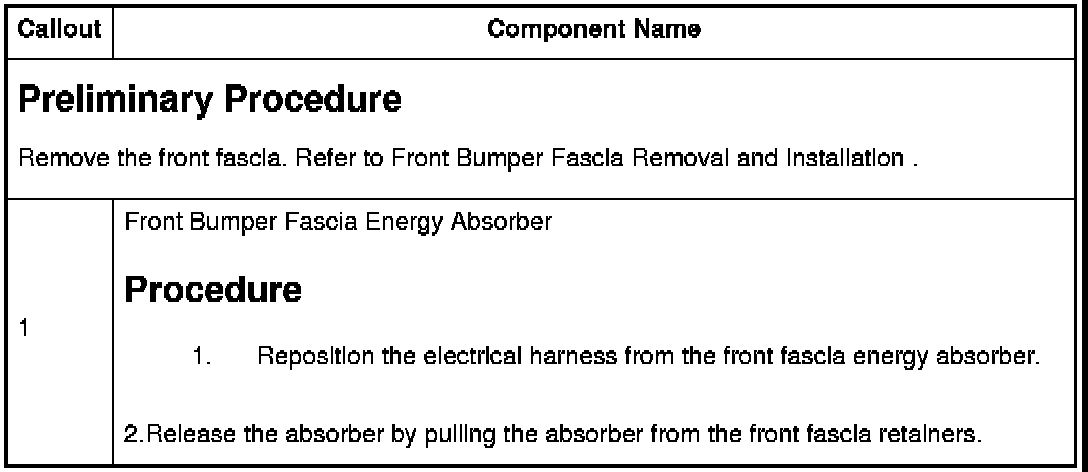

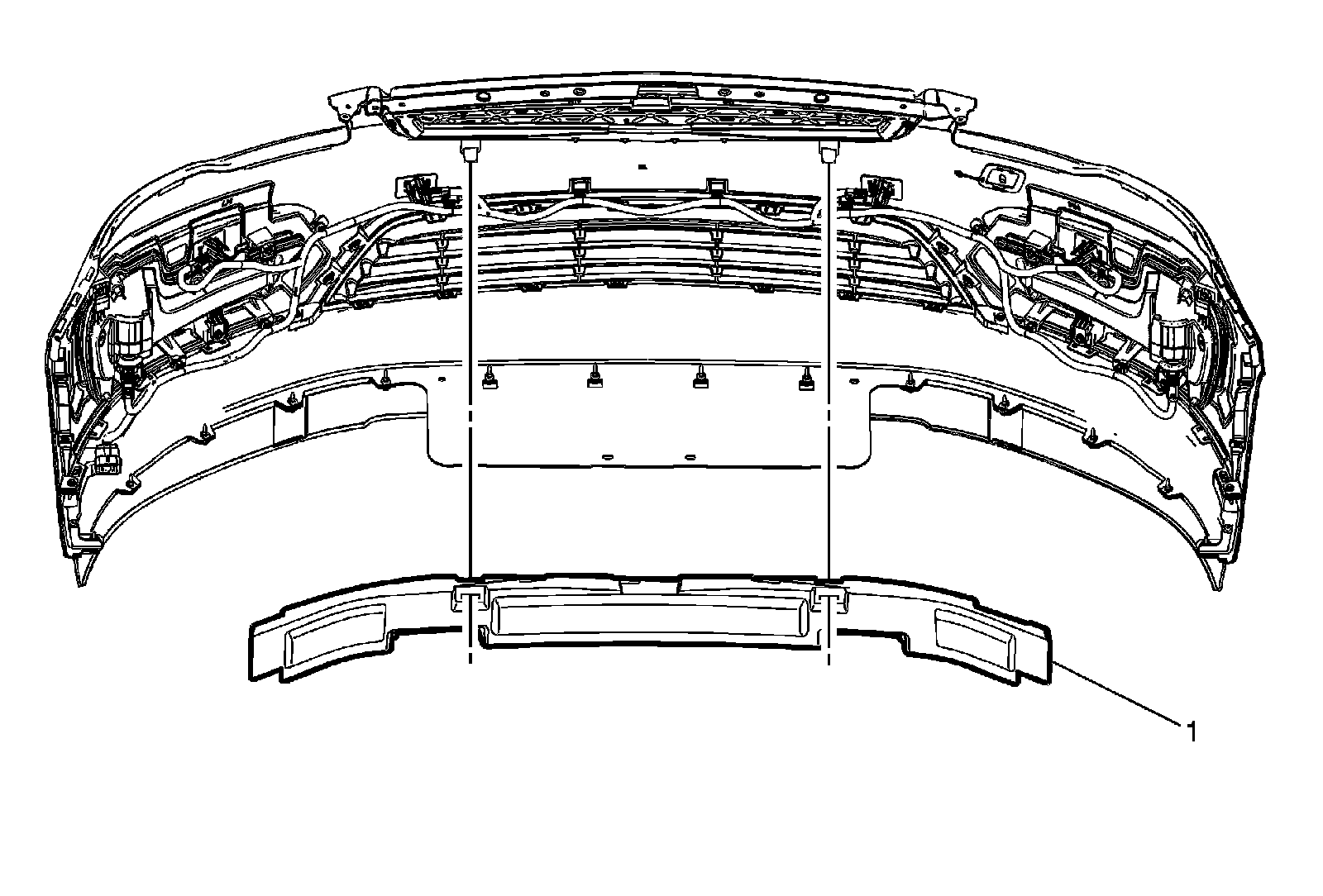

Front Bumper Energy Absorber Replacement






Front Bumper Energy Absorber Replacement











2.Release the absorber by pulling the absorber from the front fascia retainers.
