Electrical Diagrams




Body Control System Schematics

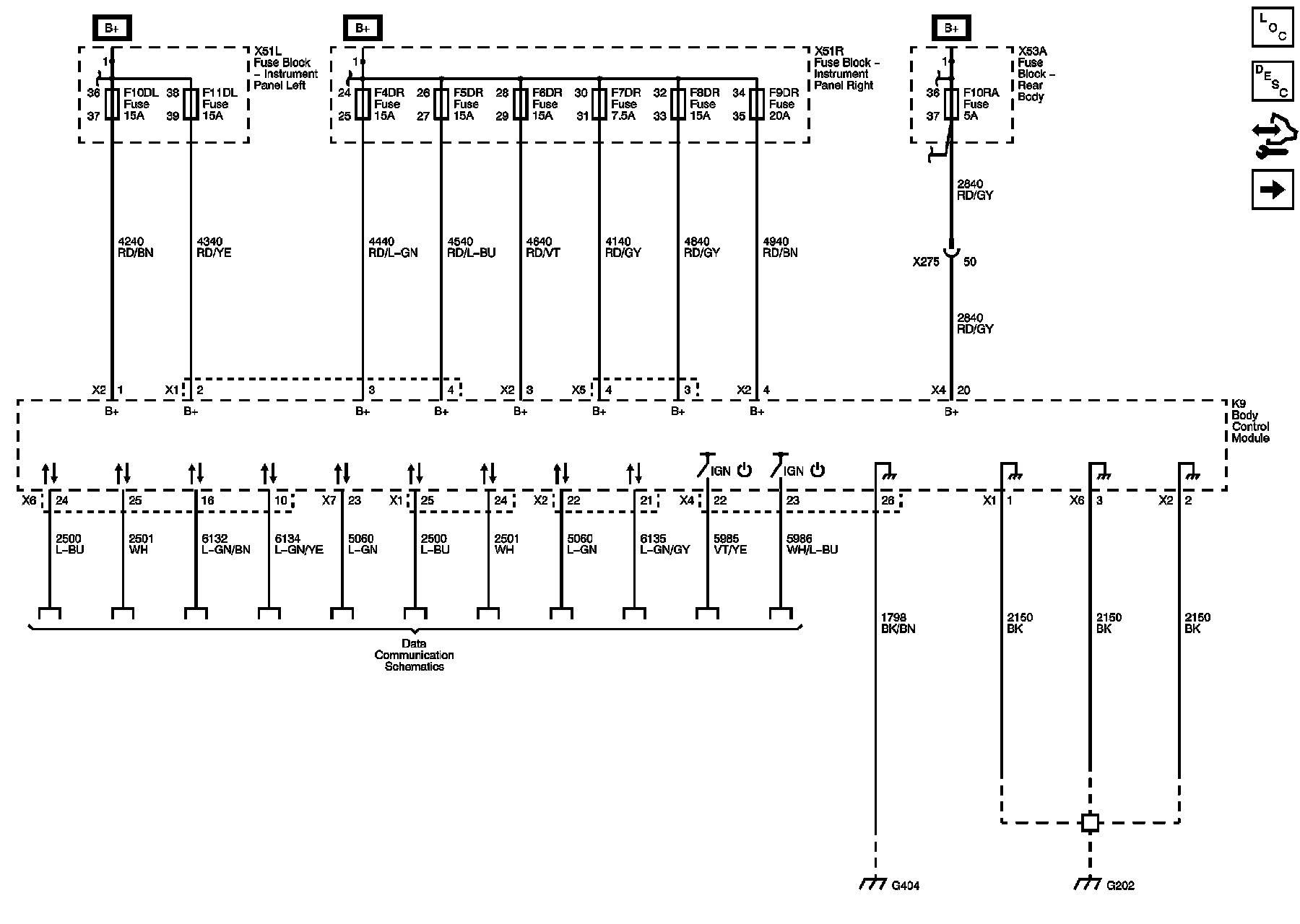

Power, Ground, and Data Communication

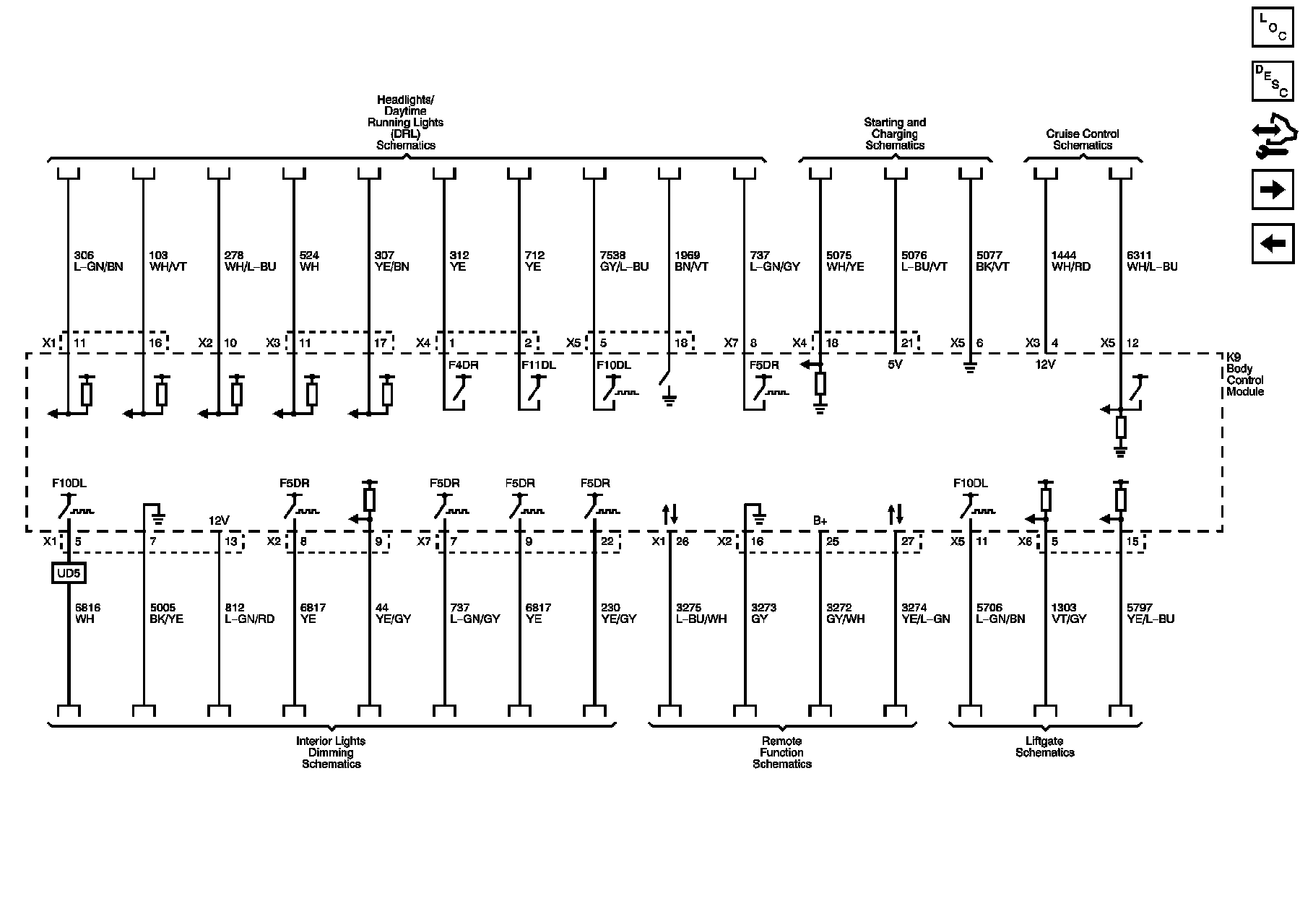

Subsystem References (1 of 3)

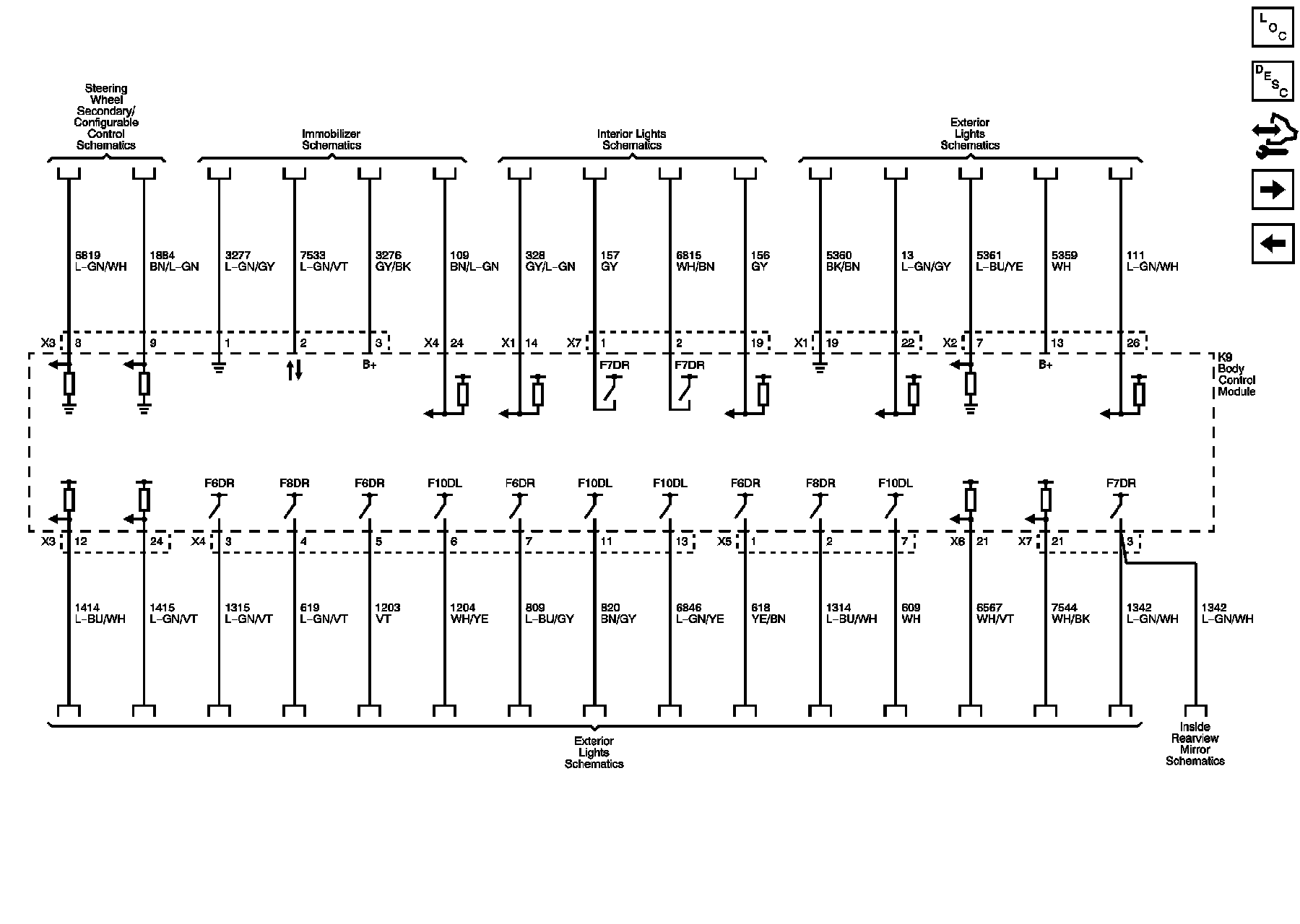

Subsystem References (2 of 3)

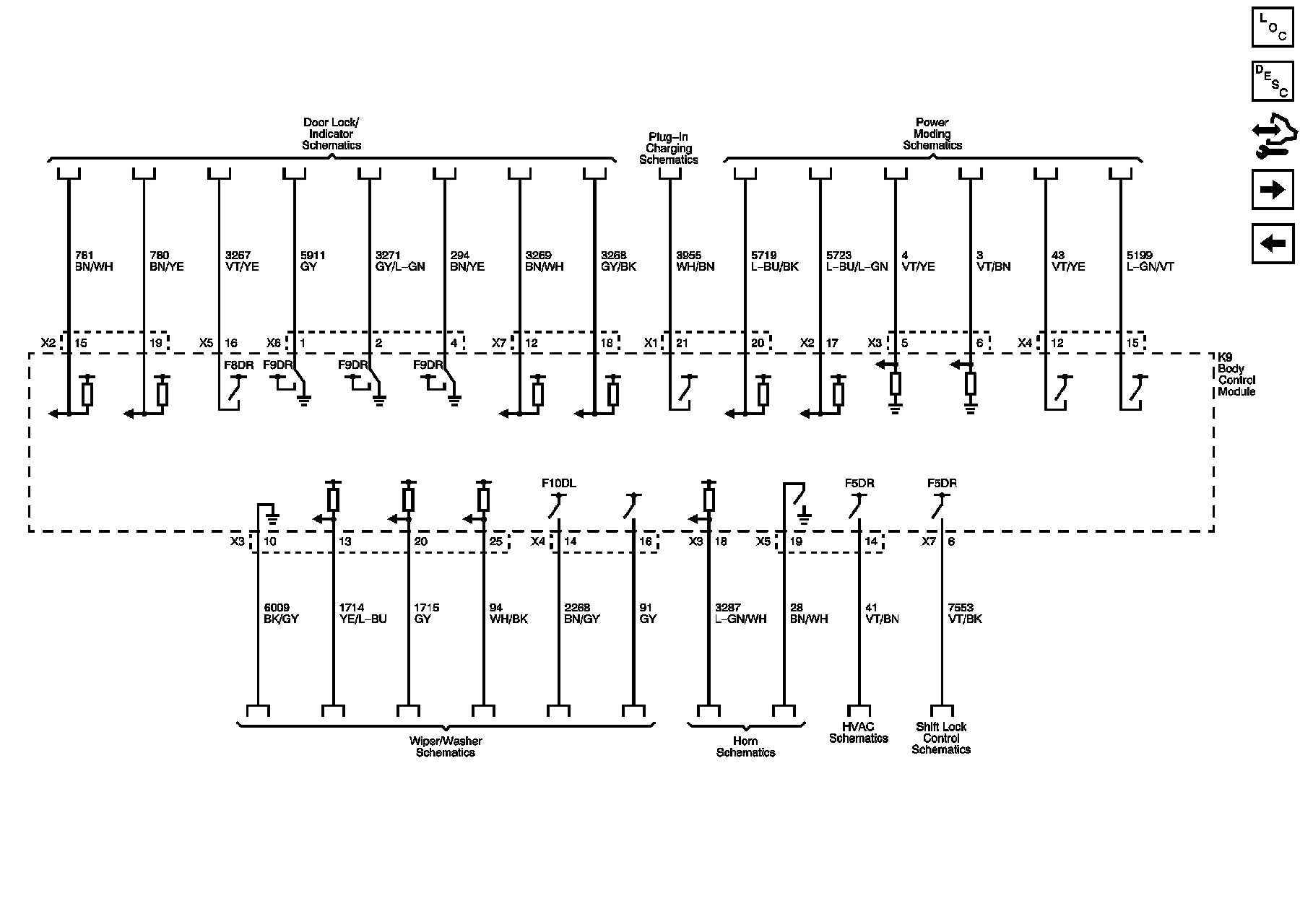

Subsystem References (3 of 3)
