Programming and Relearning

Immobilizer System Component Programming

This procedure will learn the immobilizer function and require greater than 15 minutes to complete. If the battery voltage is low, charge the battery before proceeding with the learn. If the body control module (BCM) or engine control module (ECM) have been replaced, they must be programmed before performing this learn procedure.

Depending on the immobilizer function being learned or the component replaced, different learn functions are required to be performed. These learn functions are as follows:





1. Connect a scan tool to the vehicle and access SPS.
2. Vehicle in Service Mode, engine OFF.
3. Ensure that all power consuming devices are turned OFF on the vehicle.
4. Select SPS application and follow the on-screen instructions.
5. Select Reprogram ECU.
6. Select IMMO Immobilizer Learn - Setup.

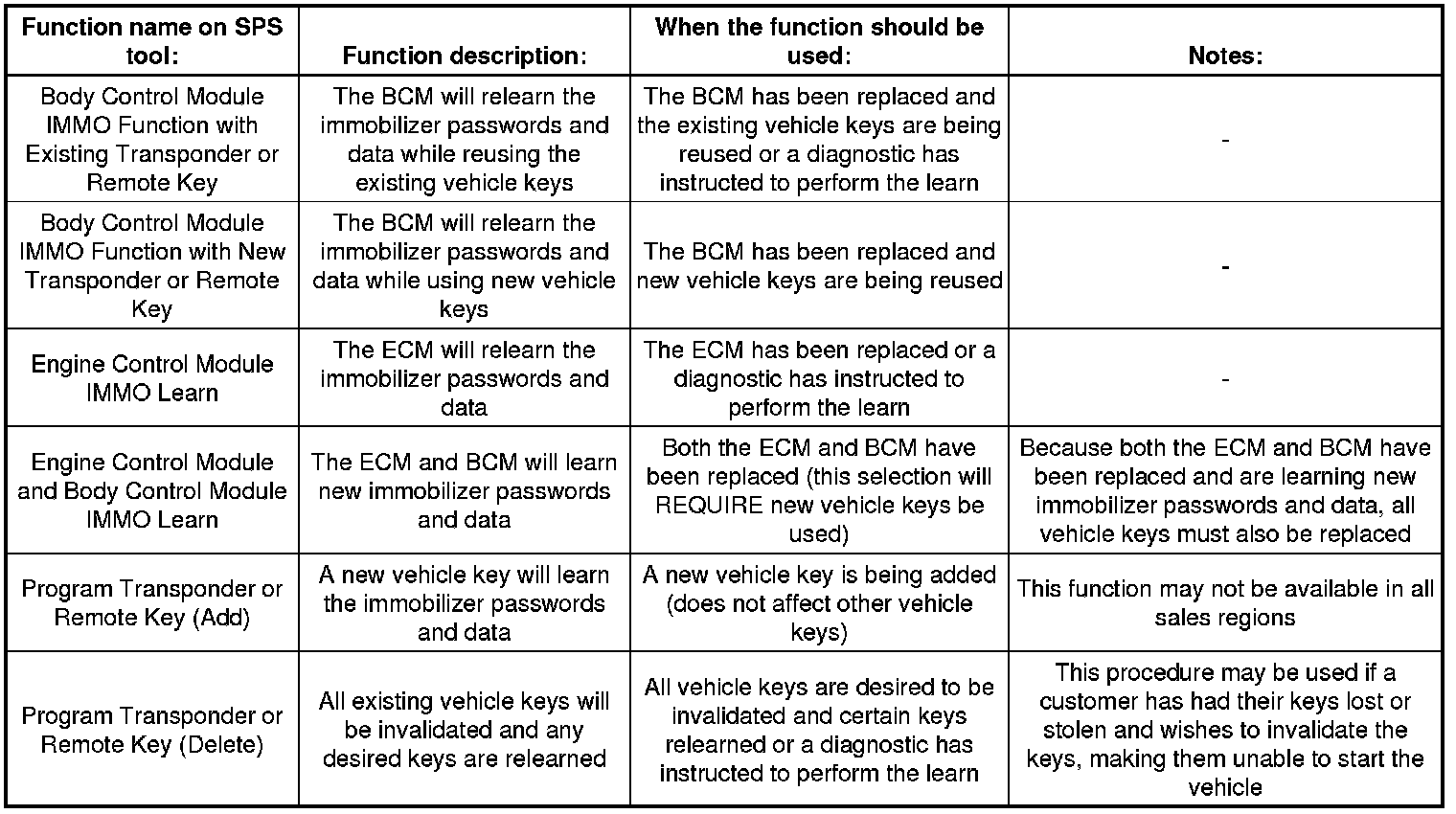

7. Select the appropriate programming function based on the component that was replaced or is being programmed. Refer to the table at the top of this document for assistance in choosing the correct programming function.

Note:
* At multiple times during the learn procedure, SPS will instruct you to turn the vehicle to Service Mode. Make sure the vehicle is actually in the Service Mode before continuing on the SPS terminal. If the vehcile is not in the Service Mode, the learn procedure will fail.
* The transmitter slot is located inside the upper instrument panel storage compartment. The rubber mat lining the bottom of the compartment needs to be removed to access the slot.

8. Follow the on-screen instructions.
9. After programming all keys "Programming Complete" is displayed.
10. Press and hold the vehicle ON/OFF switch for 15 seconds.
11. Press the lock and unlock button on each transmitter that was programmed. This will awaken each transmitter and allow passive and active keyless entry functions to be established.
12. With a scan tool, clear any DTCs.
13. Verify each key is operating properly. Operate each of the keyless entry functions using the buttons on the transmitter and then start the vehicle. When verifying operation, make sure that no other keys are near the vehicle.
