P0CCA




DTC P0CC7, P0CC9, or P0CCA

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors
DTC P0CC7 00
- Charge Port Door Open Request Switch Circuit

DTC P0CC9 00
- Charge Port Door Open Request Switch Circuit Low Voltage

DTC P0CCA 00
- Charge Port Door Open Request Switch Circuit High Voltage

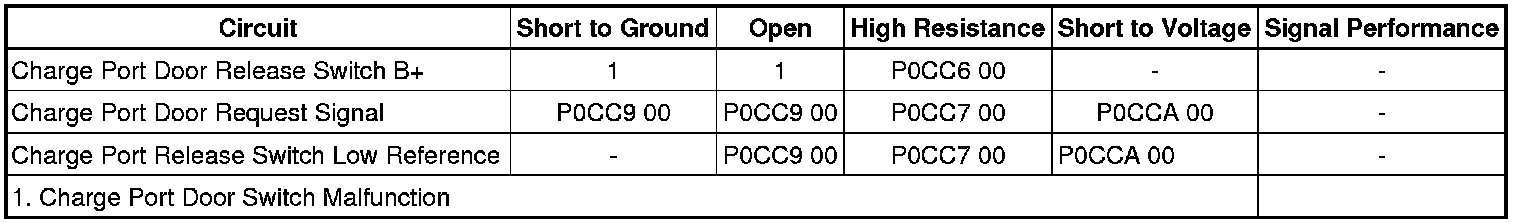

Diagnostic Fault Information






Circuit/System Description

The hybrid powertrain control module 2 monitors the voltage values of the charge port wake-up signal circuit and the charge port request signal circuit. When the charge port door release switch is pressed, the switch contact closes and provides B+ voltage to the wake-up signal circuit. The hybrid powertrain control module 2 detects the voltage on the signal circuits and provides a 12 V pulse to the charge port relay, the relay briefly becomes energized which then allows B+ voltage to the charge port door latch which activates and releases the charge port door.

Conditions for Running the DTC

Hybrid Powertrain Control Module 2 is awake

Conditions for Setting the DTC

P0CC7 00

The hybrid powertrain control module 2 detects high resistance or an invalid high or invalid low voltage in the in the charge port door open request switch circuit.

P0CC9 00

The hybrid powertrain control module 2 detects a short to ground or an open/high resistance in the charge port door open request switch circuit.

P0CCA 00

The hybrid powertrain control module 2 detects a short to voltage in the charge port door open request switch circuit.

Action Taken When the DTC Sets

The charge port door will malfunction and the charge port door may not be able to be opened.

Conditions for Clearing the DTC

DTC P0CC7 00, P0CC9 00 and P0CCA 00 are type B DTCs

Reference Information
Schematic Reference

Plug-In Charging Schematics Plug-In Charging Schematics
Connector End View Reference

Component Connector End Views Hybrid/EV Battery Pack X1
Description and Operation

Charge Port Door Description and Operation Charge Port Door Description and Operation
Electrical Information Reference

* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Verification

Vehicle in Service Mode, command the M80 charge port door actuator to UNLATCH with the scan tool, the M80 charge port door actuator should unlatch and the charge port door should open.

Circuit/System Testing

1. Vehicle OFF, disconnect the harness connector at the S113 charge port door open request switch.
2. Test for less than 10 ohm between the low reference circuit terminal 6 and ground.

If greater than the specified range, test the low reference circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the K114B hybrid powertrain control module 2.

3. Vehicle in Service Mode, test for 4.75 - 5.25 V between the signal circuit terminal 3 and ground.

If less than the specified range, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K114B hybrid powertrain control module 2.
If greater than the specified range, test the signal circuit for a short to voltage. If the circuit tests normal, replace the K114B hybrid powertrain control module 2.

4. If all circuits test normal, test or replace the S113 charge port door open request switch.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Charger Door Release Switch Replacement Charger Door Release Switch Replacement
* Control Module References Programming and Relearning for the hybrid powertrain control module 2 replacement, programming and setup
