C0297

DTC C0297

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor
DTC C0297 02
- Brake Applied Output Circuit Short to Ground

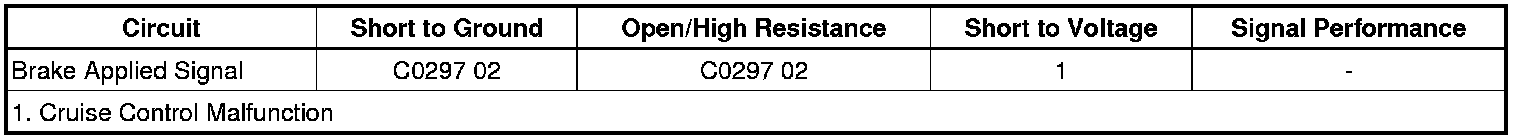

Diagnostic Fault Information






Circuit/System Description

The brake pedal position sensor is used to sense the action of the driver application of the brake pedal. The brake pedal position sensor provides an analog voltage signal that will increase as the brake pedal is applied. The body control module (BCM) provides a low reference signal and a 5 V reference voltage to the brake pedal position sensor. When the variable signal reaches a voltage threshold indicating the brakes have been applied, the BCM will apply battery voltage to the right and left stop lamp control circuits, engine control module (ECM), and center high mounted stop lamp control circuit.

Conditions for Running the DTC

* Battery voltage must be between 9-16 V.
* Brakes APPLIED.

Conditions for Setting the DTC

The BCM detects a short to ground or an open/high resistance on the brake applied signal circuit.

Actions Taken When the DTC Sets

The cruise control system is disabled.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.
* A history DTC will clear once 50 consecutive malfunction-free vehicle ON/OFF switch cycles have occurred.

Diagnostic Aids

Verify that the brake pedal position sensor is properly calibrated.

Reference Information
Schematic Reference

Exterior Lights Schematics Exterior Lights Schematics
Connector End View Reference

Component Connector End Views Hybrid/EV Battery Pack X1
Description and Operation

Exterior Lighting Systems Description and Operation Exterior Lighting Systems
Electrical Information Reference

* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Testing

1. Vehicle OFF, disconnect the X1 harness connector at the K20 ECM.
2. Connect a test lamp between the signal circuit terminal 33 and ground.
3. Vehicle in Service Mode, observe the test lamp while pressing and releasing the brake pedal. The test lamp should turn ON and OFF as the brake pedal is pressed and released.

• If the test lamp is always ON, test the signal circuit for a short to voltage. If the circuit tests normal, replace the K9 BCM.
• If the test lamp is always OFF, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K9 BCM.

4. If all circuits test normal, replace the K20 ECM.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Brake Pedal Position Sensor Calibration
* Control Module References Programming and Relearning for BCM or ECM replacement, setup, and programming
