B3883

DTC B3883

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors
DTC B3883 01
- License Plate Lamp Circuit Short to Battery

DTC B3883 02
- License Plate Lamp Circuit Short to Ground

DTC B3883 04
- License Plate Lamp Circuit Open

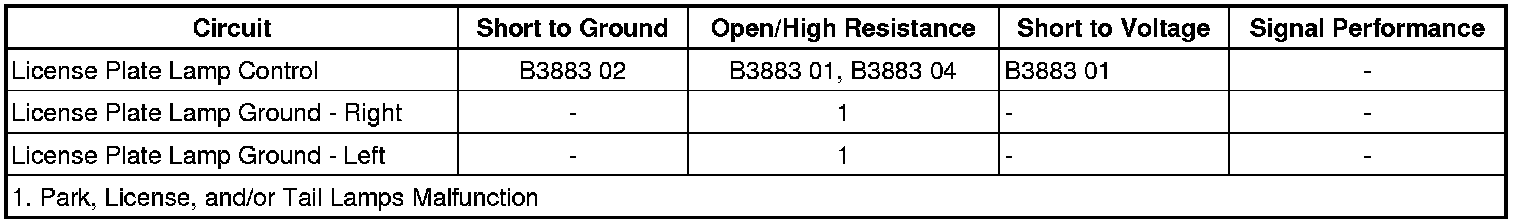

Diagnostic Fault Information






Circuit/System Description

When the turn signal/multifunction switch is placed in the HEAD or PARK position, ground is applied to the park lamp switch ON signal circuit to the body control module (BCM). The BCM responds by applying voltage to the park lamps and license lamps control circuits illuminating the park and license lamps.

Conditions for Running the DTC

DTC B3883 01

Turn signal/multifunction switch in OFF position.

DTC B3883 02 and B3883 04

Turn signal/multifunction switch in AUTO, PARK or ON positions.

Conditions for Setting the DTC

DTC B3883 01

The BCM detects a short to voltage in the license plate lamp control circuit.

DTC B3883 02

The BCM detects a short to ground in the license plate lamp control circuit.

DTC B3883 04

The BCM detects an open/high resistance in the license plate lamp control circuit.

Actions Taken When the DTC Sets

DTC B3883 01

License plate lamps always ON.

DTC B3883 02 and B3883 04

License plate lamps inoperative.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.
* A history DTC will clear once 100 consecutive malfunction-free vehicle ON/OFF switch cycles have occurred.

Reference Information
Schematic Reference

Exterior Lights Schematics Exterior Lights Schematics
Connector End View Reference

Component Connector End Views Hybrid/EV Battery Pack X1
Description and Operation

Exterior Lighting Systems Description and Operation Exterior Lighting Systems
Electrical Information Reference

* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Testing

1. Vehicle OFF, disconnect the harness connector at the E7L license plate lamp - left and E7R license plate lamp - right.
2. Vehicle OFF, exterior lamps OFF, test for less than 5 ohm between each ground circuit terminal 2 and ground.

• If greater than the specified range, test the ground circuit for an open/high resistance.

3. Connect a test lamp between the E7L license plate lamp - left control circuit terminal 1 and ground.
4. Vehicle in Service Mode, command the License Plate Lamps ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.

• If the test lamp is always ON, test the control circuit for a short to voltage. If the circuit tests normal, replace the K9 BCM.
• If the test lamp is always OFF, test the control circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K9 BCM.

5. Vehicle OFF, connect a test lamp between the E7R license plate lamp - right control circuit terminal 1 and ground.
6. Vehicle in Service Mode, command the License Plate Lamps ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.

• If the test lamp is always OFF, test the control circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K9 BCM.

7. If all circuits test normal, replace the appropriate E7 license plate lamp bulb.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Rear License Plate Lamp Replacement Rear License Plate Lamp Replacement
* Control Module References Programming and Relearning for BCM replacement, setup, and programming
