B2580

DTC B2580

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors
DTC B2580 01
- Headlamp High Beam Control Circuit Short to Battery

DTC B2580 02
- Headlamp High Beam Control Circuit Short to Ground

DTC B2580 04
- Headlamp High Beam Control Circuit Open

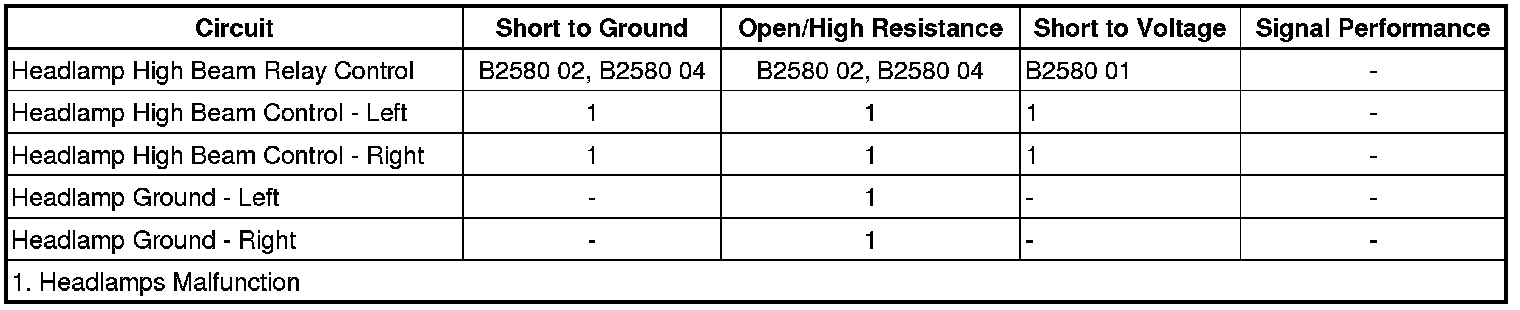

Diagnostic Fault Information






Circuit/System Description

When the low beam headlamps are on and the turn signal/multifunction switch is placed in the high beam position, ground is applied to the body control module (BCM) through the high beam signal circuit. The BCM responds to the high beam request by applying ground to the high beam relay control circuit which energizes the headlamp high beam relay. With the high beam relay energized, the switch contacts close allowing battery voltage to flow through the high beam fuses to the high beam control circuits illuminating the high beam headlamps.

Conditions for Running the DTC

* Battery voltage must be between 9-16 V.
* High beam headlamps ON.

Conditions for Setting the DTC

DTC B2580 01

The BCM detects a short to voltage in the headlamp high beam relay control circuit.

DTC B2580 02 and B2580 04

The BCM detects a short to ground or an open/high resistance in the headlamp high beam control circuit.

Actions Taken When the DTC Sets

* For an open/high resistance fault, the high beam headlamps and flash to pass function are inoperative. The high beam indicator on the instrument cluster operates normally.
* For a short to ground fault, the high beam headlamps and high beam indicator on the instrument cluster are always ON with the headlamp switch in the AUTO or HEAD positions.
* For a short to voltage fault, the high beam headlamps and flash to pass function are inoperative.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.
* A history DTC will clear once 100 consecutive malfunction-free vehicle ON/OFF switch cycles have occurred.

Reference Information
Schematic Reference

Exterior Lights Schematics Exterior Lights Schematics
Connector End View Reference

Component Connector End Views Hybrid/EV Battery Pack X1
Description and Operation

Exterior Lighting Systems Description and Operation Exterior Lighting Systems
Electrical Information Reference

* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Testing

1. Vehicle OFF, disconnect the X1 harness connector at the X50A fuse block - underhood.
2. Connect a test lamp between the control circuit terminal 18 and B+.
3. Vehicle in Service Mode, command the High Beams ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.

• If the test lamp is always ON, test the control circuit for a short to ground. If the circuit tests normal, replace the K9 BCM.
• If the test lamp is always OFF, test the control circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the K9 BCM.

4. If all circuits test normal, replace the X50A fuse block - underhood.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Accessory Wiring Junction Block Replacement Accessory Wiring Junction Block Replacement
* Control Module References Programming and Relearning for BCM replacement, setup, and programming
