B1445
Power Outlet Receptacle Malfunction - DTC B1445
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC B1445 02
- Control Module Voltage Output Circuit Short to Ground

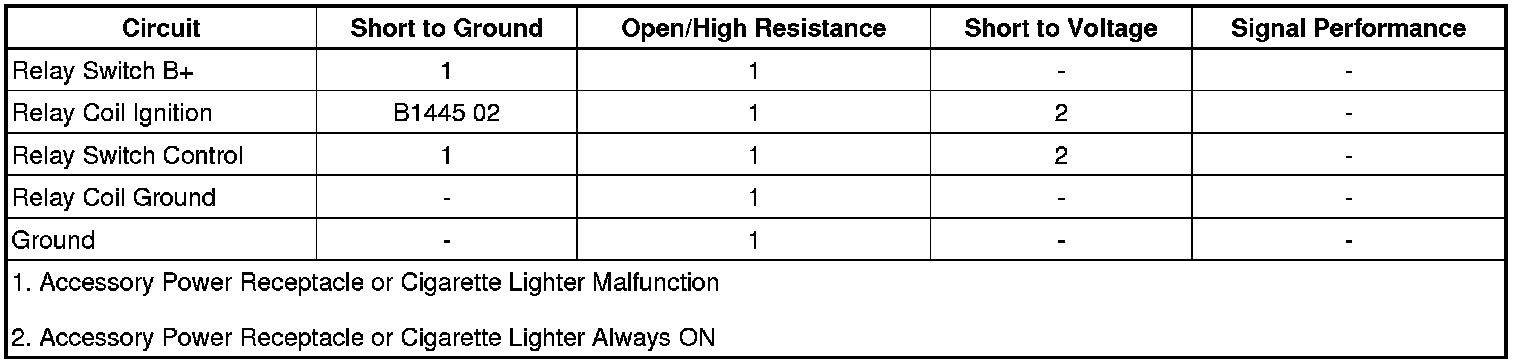

Diagnostic Fault Information
Circuit/System Description
The body control module (BCM) controls the wired power components by applying voltage to the ignition voltage circuit at harness connector X4 terminal 12. Voltage is applied when the vehicle power mode is Vehicle ON or Vehicle in Service Mode.
Conditions for Running the DTC
* The system voltage is between 9-16 V.
* The DTC can only set when the output is actively being requested by the module.
Conditions for Setting the DTC
The DTC will set only when the module requests the output and there is a short to ground in the ignition voltage circuit.
Action Taken When the DTC Sets
The module output driver will be shut down and not supply voltage to the circuit.
Conditions for Clearing the DTC
* The current DTC will clear when the malfunction is no longer present.
* A history DTC clears when the module power mode cycle counter reaches the reset threshold of 50, without a repeat of the malfunction.
Reference Information
Schematic Reference
Cigar Lighter/Power Outlet Schematics [1][2]Auxiliary Power Outlet
Connector End View Reference
Component Connector End Views Hybrid/EV Battery Pack X1
Description and Operation
Power Outlets Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Circuit/System Verification
Install a 12 V DC accessory into a appropriate X80 Accessory Power Receptacle or activate the E32 Cigarette Lighter Receptacle. Vehicle in Service Mode, command the Auxiliary Power Relay Command ON and OFF with a scan tool. The KR76 Retained Accessory Power Relay should click and the 12 V DC accessory or the E32 Cigarette Lighter Receptacle should have power.
Circuit/System Testing
DTC B1445 02 and Accessory Power Receptacle or Cigarette Lighter Malfunction
1. Vehicle OFF, disconnect the KR76 Retained Accessory Power Relay.
2. Test for less than 5 ohm between the ground circuit terminal 41 and ground.
• If greater than the specified range, test the ground circuit for an open/high resistance.
3. Verify that a test lamp does not illuminate between the control circuit terminal 40 and ground.
• If the test lamp illuminates, test the control circuit for a short to voltage.
4. Vehicle in Service Mode, verify that a test lamp illuminates between the ignition circuit terminal 40 and ground.
• If the test lamp does not illuminate, test the ignition circuit for a short to ground or an open/high resistance.
5. Verify that a test lamp illuminates between the B+ circuit terminal 43 and ground.
• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance. If the circuit tests normal and the B+ circuit fuse is open, test the control circuit terminal 42 for a short to ground.
6. Disconnect the harness connector at the inoperative X80 Accessory Power Receptacle or E32 Cigarette Lighter Receptacle.
7. Test for less than 5 ohm between the ground circuit terminal C and ground.
• If greater than the specified range, test the ground circuit for an open/high resistance.
8. Connect the harness connector at the appropriate X80 Accessory Power Receptacle or E32 Cigarette Lighter Receptacle.
9. Connect a 20 A fused jumper wire between the KR76 Retained Accessory Power Relay B+ circuit terminal 43 and the control circuit terminal 42. Verify the accessory has power.
• If the accessory does not have power, test the control circuit for a short to ground or an open/high resistance. If the circuit tests normal, test or replace the appropriate X80 Accessory Power Receptacle or E32 Cigarette Lighter Receptacle.
10. If all circuits test normal, test or replace the KR76 Retained Accessory Power Relay.
Component Testing
Relay Test
1. Vehicle OFF, disconnect the KR76 Retained Accessory Power Relay.
2. Test for 60-180 ohm between terminals 40 and 41.
• If not within the specified range, replace the relay.
3. Test for infinite resistance between the following terminals:
* 43 and 40
* 43 and 42
* 43 and 41
* 41 and 42
• If not the specified value, replace the KR76 Retained Accessory Power Relay.
4. Install a 20 A fused jumper wire between relay terminal 40 and 12 V. Install a jumper wire between relay terminal 41 and ground. Test for less than 2 ohm between terminals 42 and 43.
• If greater than specified range, replace the KR76 Retained Accessory Power Relay.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Accessory Power Receptacle Replacement Service and Repair
* Relay Replacement (Attached to Wire Harness) Relay Replacement (Attached to Wire Harness)Relay Replacement (Within an Electrical Center) Relay Replacement (Within an Electrical Center)
