Release Systems Schematics
Release Systems Schematics
Release Systems Schematics

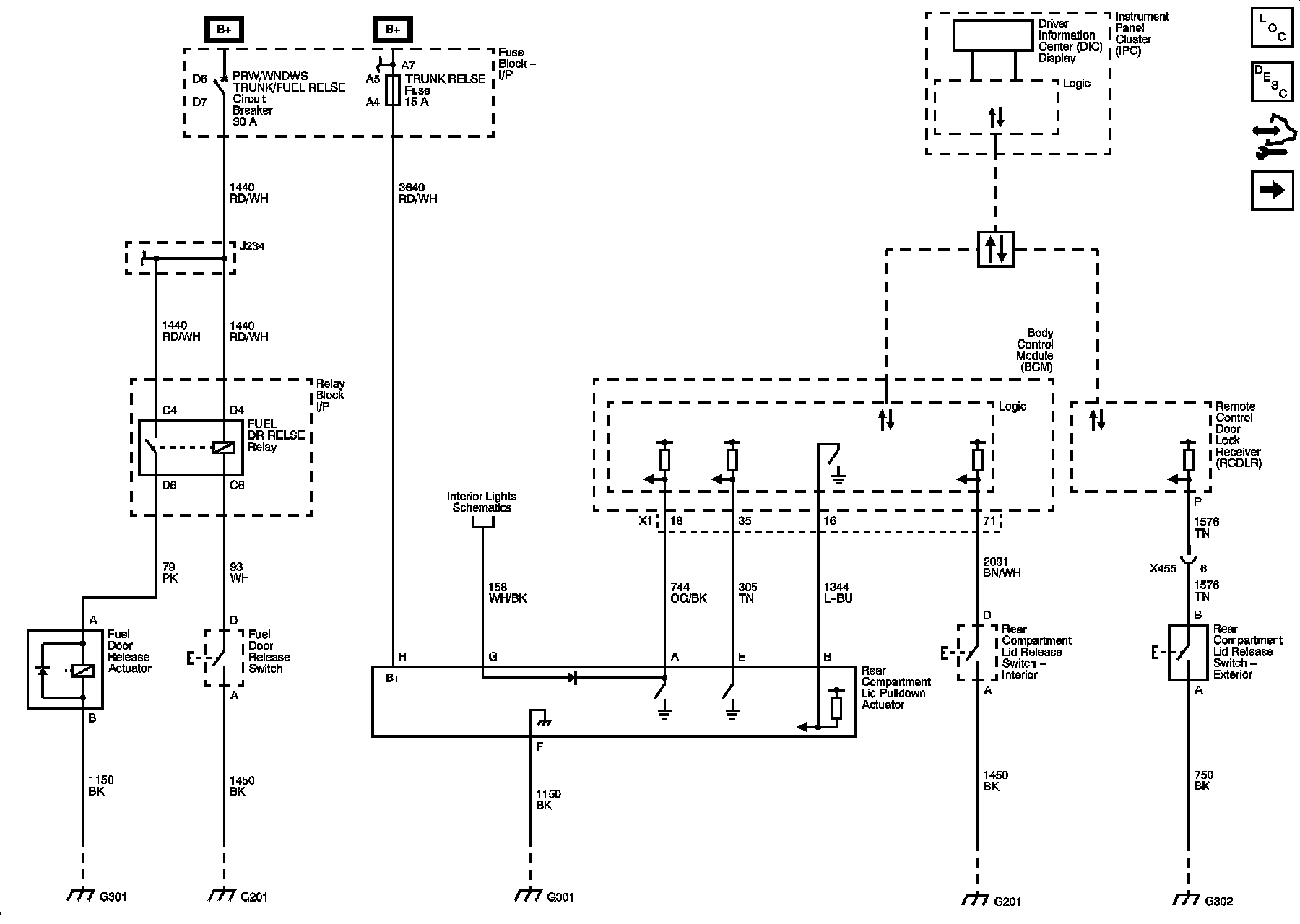

Except C05 or CM7

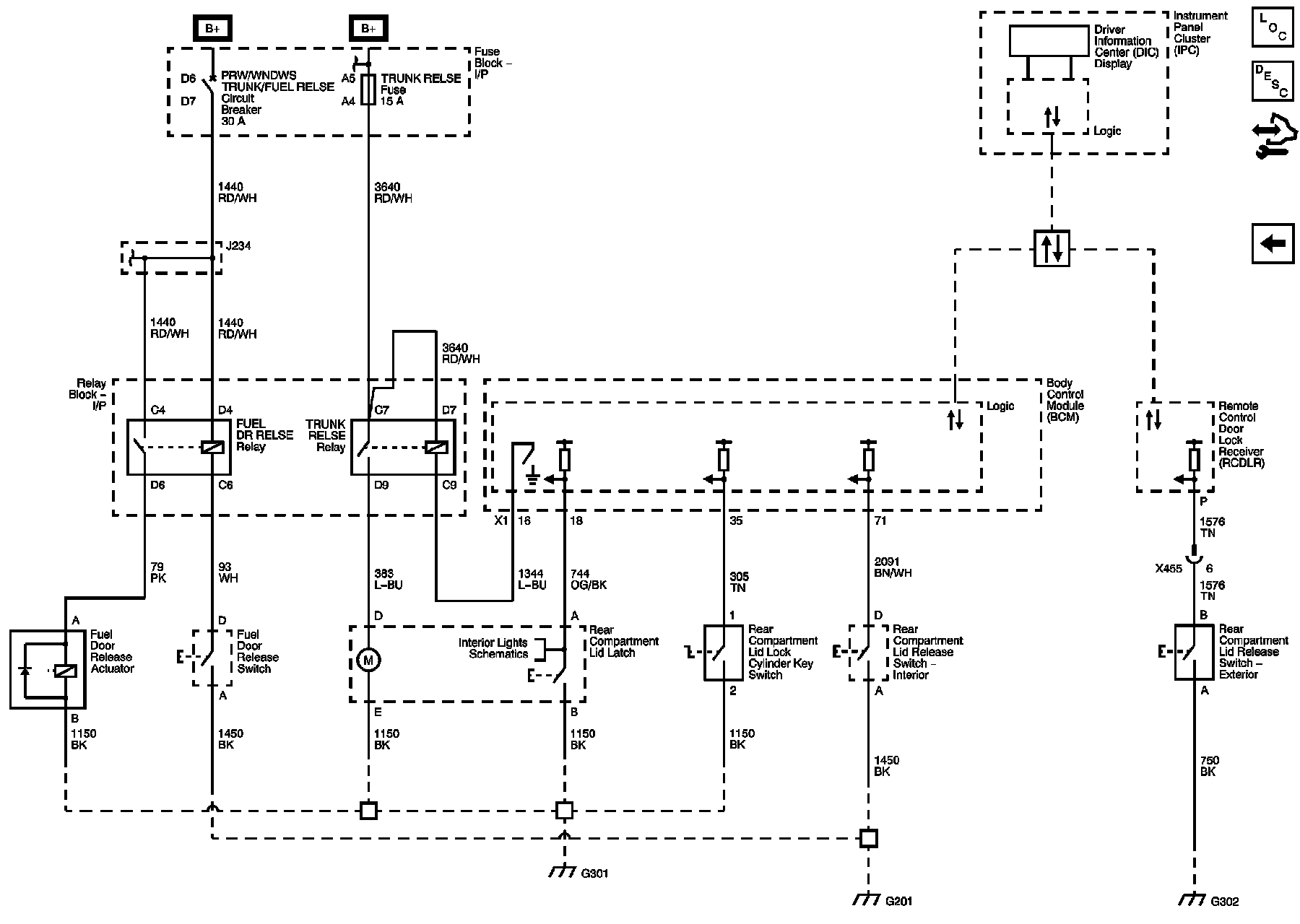

C05 or CM7
