Active Exhaust System Actuator
Active Exhaust System Actuator
Component Connector End Views

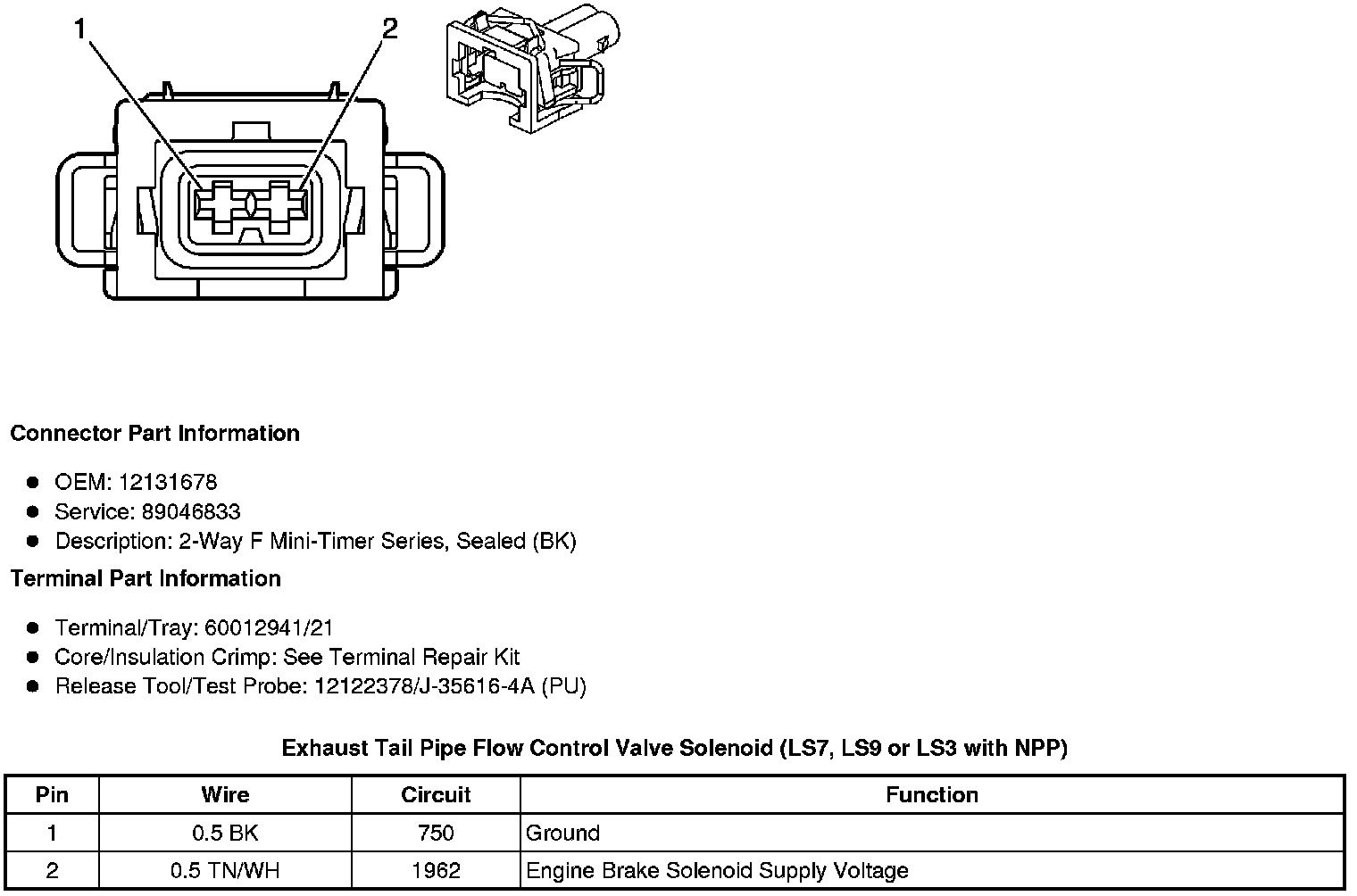

Exhaust Tail Pipe Flow Control Valve Solenoid (LS7, LS9 or LS3 with NPP)
