Rear Door Window Motor: Locations

Door Component Views

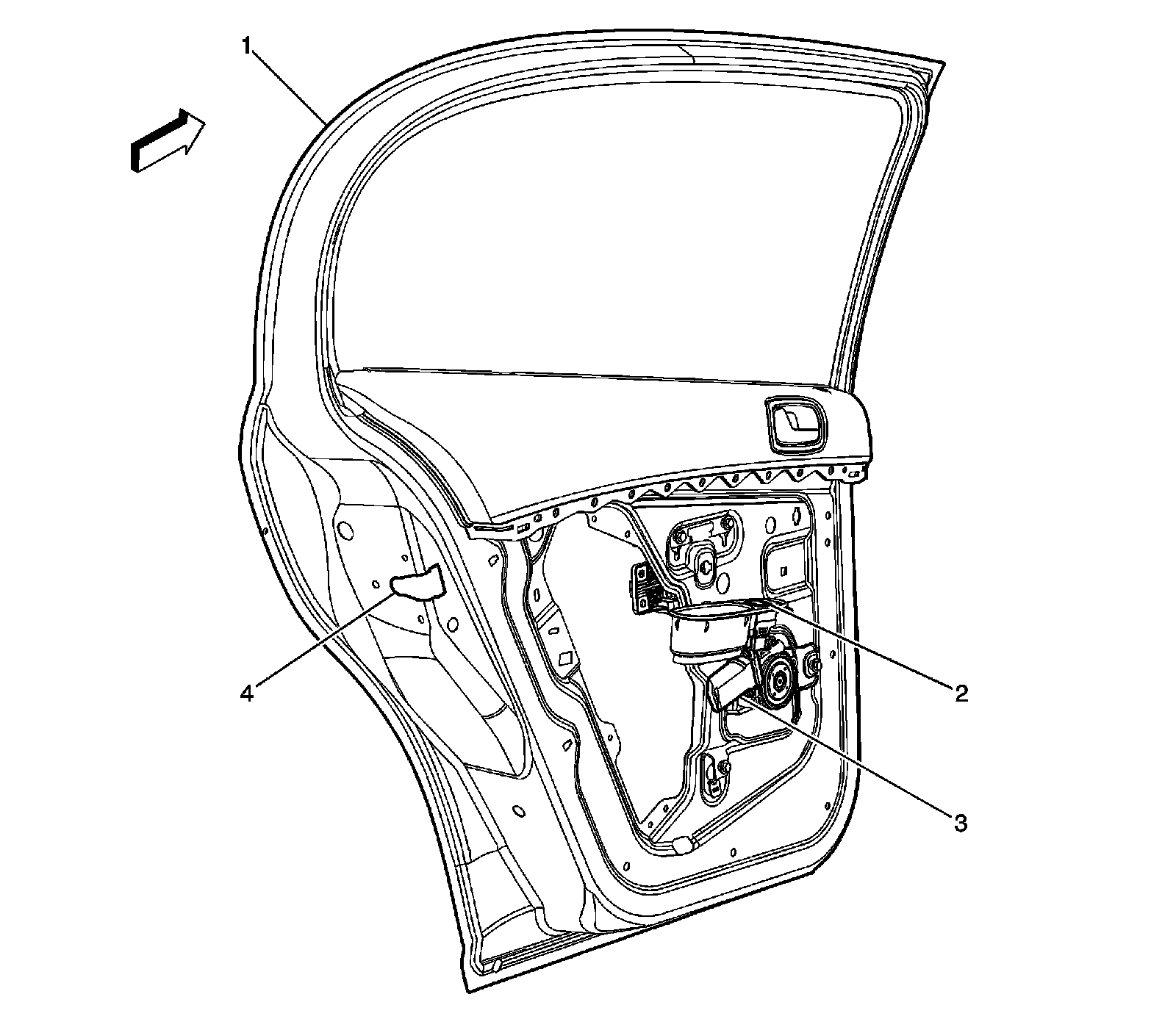

Left Rear Door Components (Sedan)




1 - Door Frame
2 - Window Switch - Left Rear (AU3)
3 - Window Motor - Left Rear (AU3)
4 - Door Latch - Left Rear (AU3)

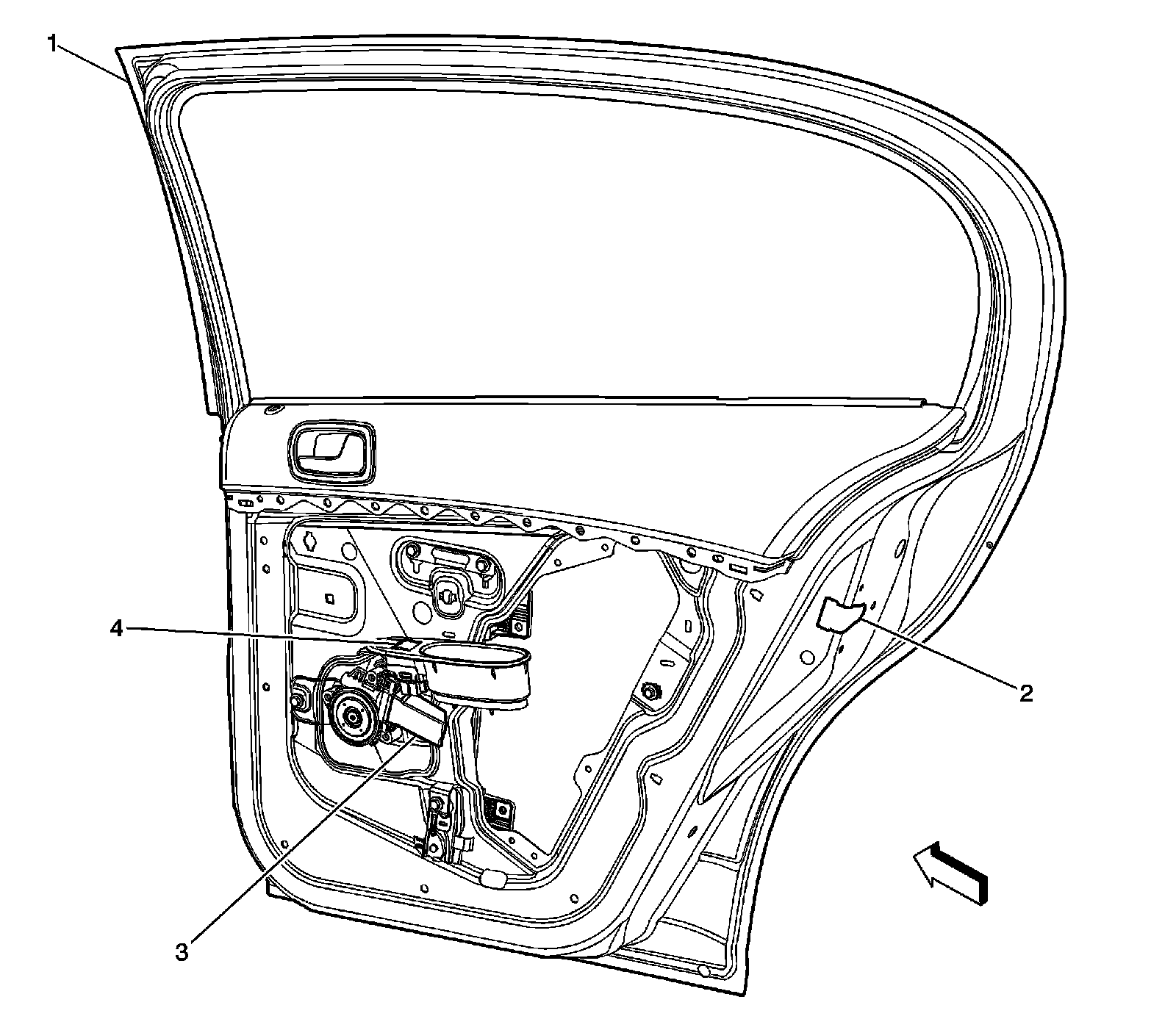

Right Rear Door Components (Sedan)




1 - Door Frame
2 - Door Latch - Right Rear (AU3)
3 - Window Motor - Right Rear (AU3)
4 - Window Switch - Right Rear (AU3)
