Connector Views
Component Connector End Views

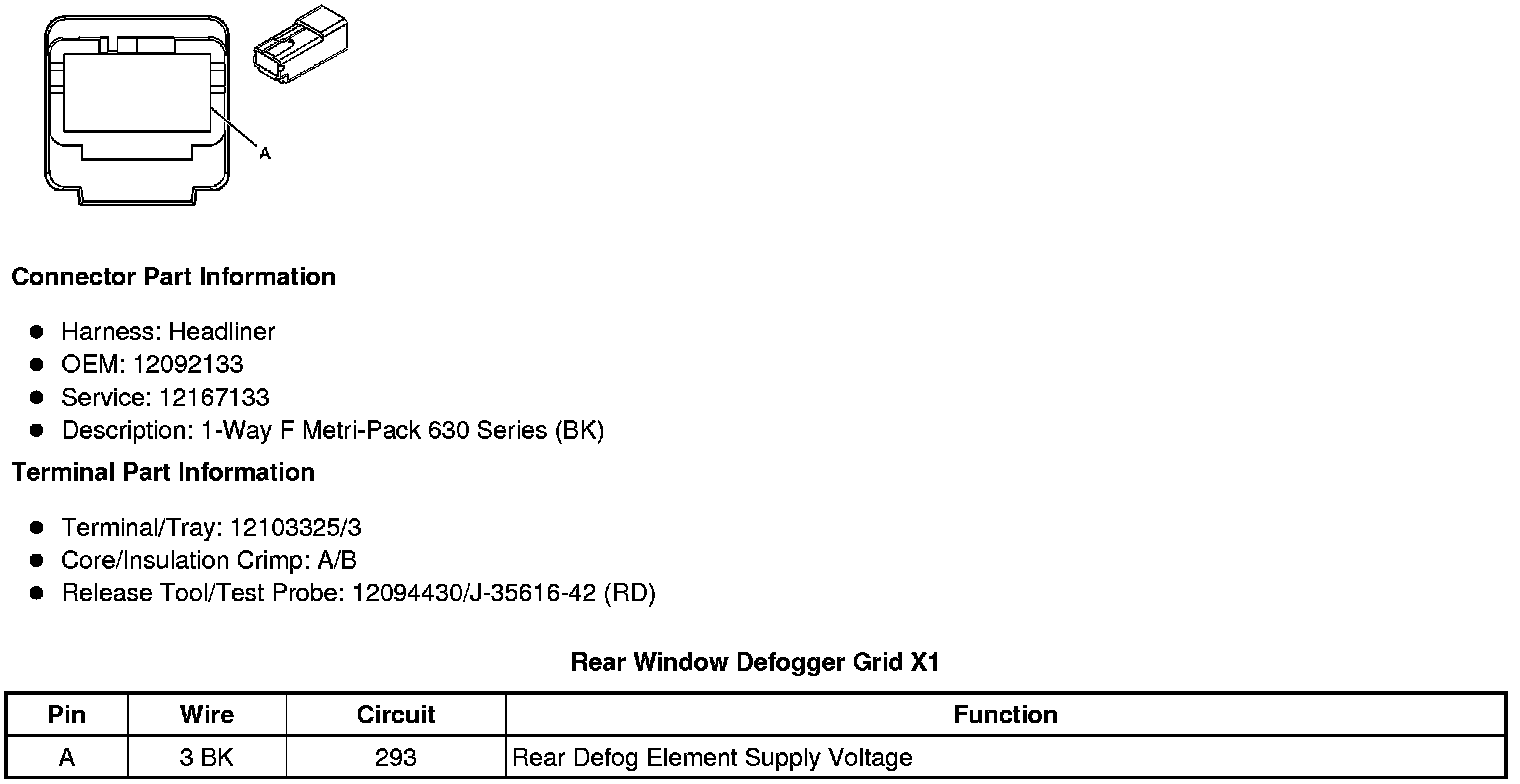

Rear Window Defogger Grid X1

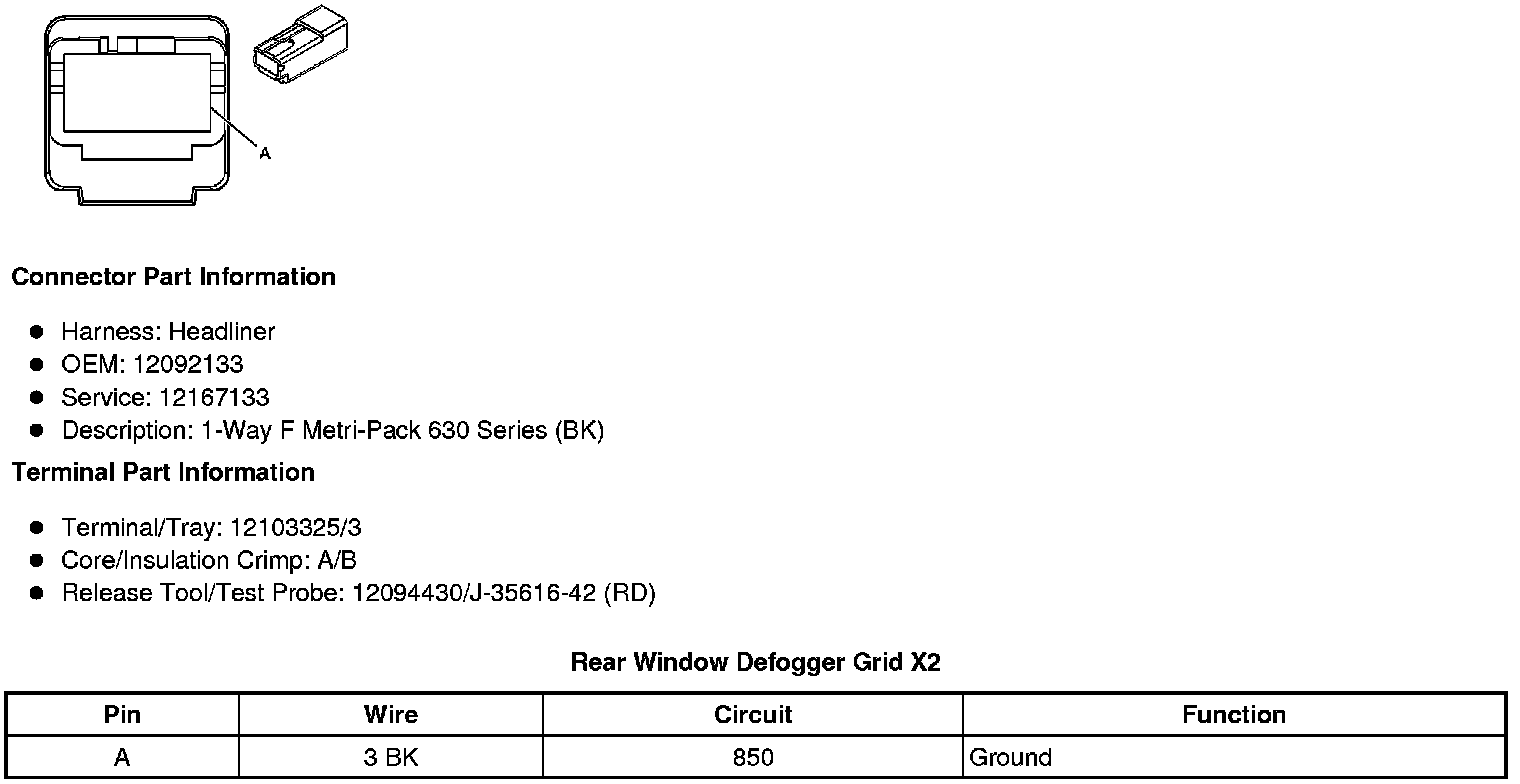

Rear Window Defogger Grid X2
