Transmission Front Mount Replacement

Transmission Front Mount Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Support the transaxle with an appropriate jack.




3. Remove the front transaxle mount thru bolt.




4. Remove the front transaxle mount to transaxle bolts.
5. Remove the front transaxle mount from the vehicle.

Installation Procedure

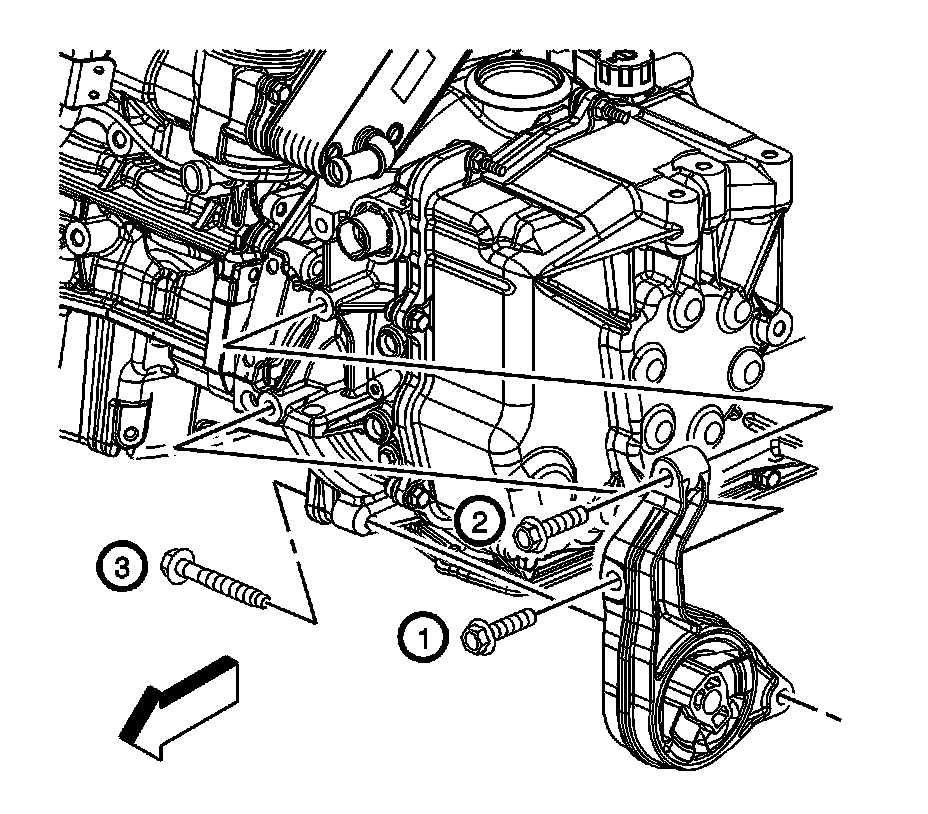

Note: The transaxle bolts must be torqued in a mandatory sequence as shown.





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the front transaxle mount and transaxle bolts.

Tighten the bolts to 90 Nm (66 lb ft).




2. Hand tighten the front transaxle mount thru bolt.

Note: The front and rear transmission mounts must be allowed to settle with the thru bolts loosened.

3. Loosen the rear trans mount thru bolt.
4. Tighten the transmission mount thru bolts in the following order.

1. Tighten the rear bolt to 100 Nm (74 lb ft).
2. Tighten the front bolt to 100 Nm (74 lb ft).

5. Lower the vehicle.
