50. Final Drive and Differential Assembly Install

Final Drive and Differential Assembly Install

Special Tools

J 36850 - Assembly Lubricant

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

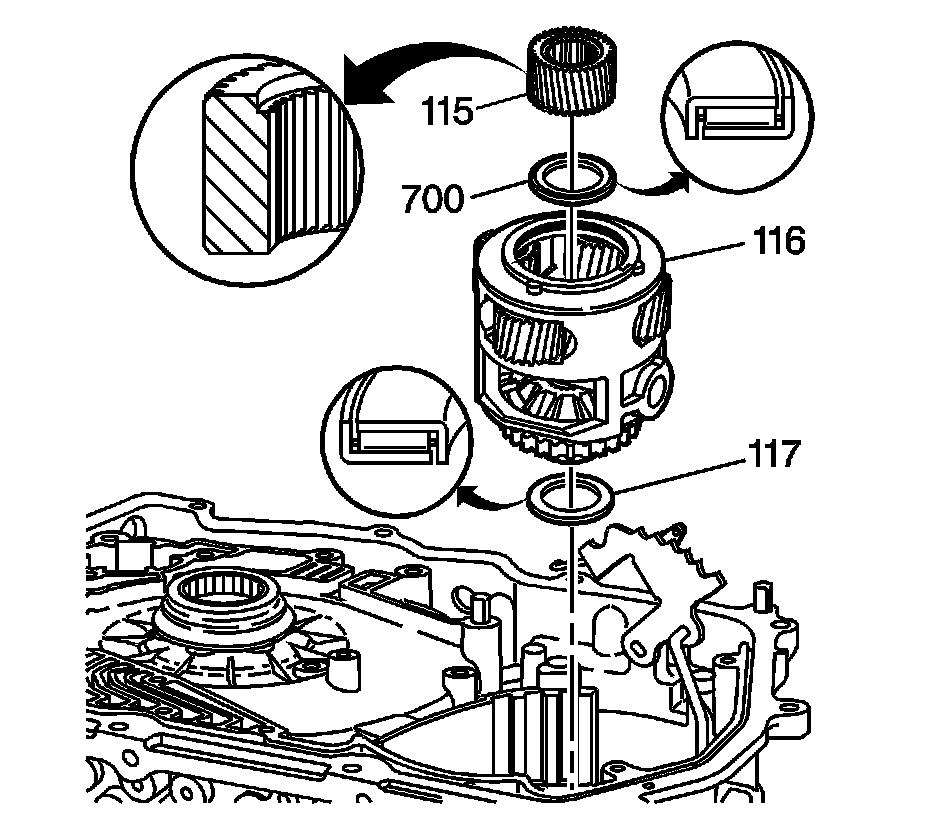

1. Install the final drive carrier to case thrust bearing (117) onto the final drive carrier. Retain the bearing with J 36850 - lubricant.
2. Install the complete final drive carrier assembly (116) into the transmission case (51).
3. Install the thrust bearing (700) into the final drive carrier assembly (116). Retain the bearing with J 36850 - lubricant.

Note: Install the sun gear with the grooved side up (flat side down).

4. Install the final drive sun gear (115) into the final drive carrier (116).
