45. Manual Shift Shaft Pin, Detent Lever, and Park Pawl Actuator Assembly Installation

Manual Shift Shaft Pin, Detent Lever, and Park Pawl Actuator Assembly Installation

Special Tools

J 41229 - Manual Shaft to Case Pin Installer or equivalent

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

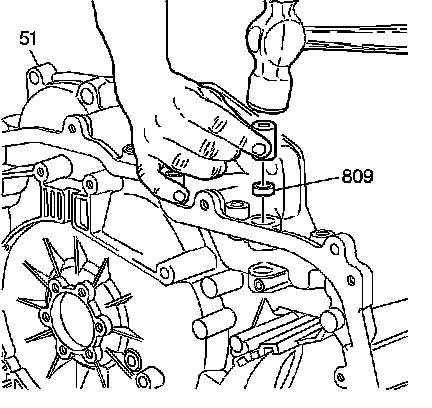

1. Install a new manual shaft seal (809) into the case (51). Use a 13 mm socket.





Caution: Use J 41229 to install the manual shaft pin at the correct height in order to properly secure the manual shaft. If you install the pin too deep, the case bore may crack.

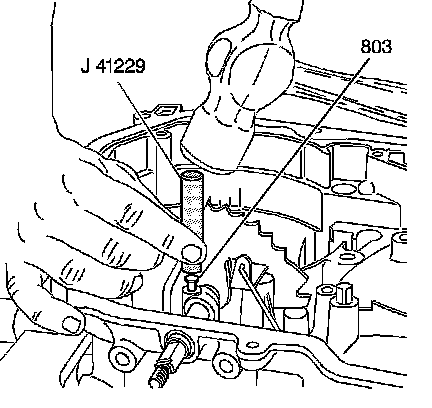

2. Install the manual shaft pin (803) into the case. Use the J 41229 - pin installer or equivalent.

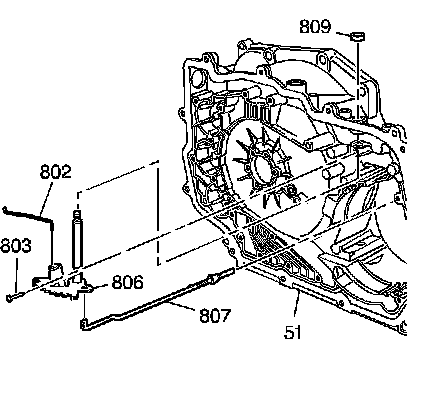

3. With the manual valve to detent lever link (802) and the parking lock actuator assembly (807) attached, install the manual shaft and detent lever assembly (806) into the case.
4. Ensure that the parking lock actuator rod is correctly positioned into the actuator guide.
