31. Forward Clutch and Low/Reverse Band Removal




Forward Clutch and Low/Reverse Band Removal

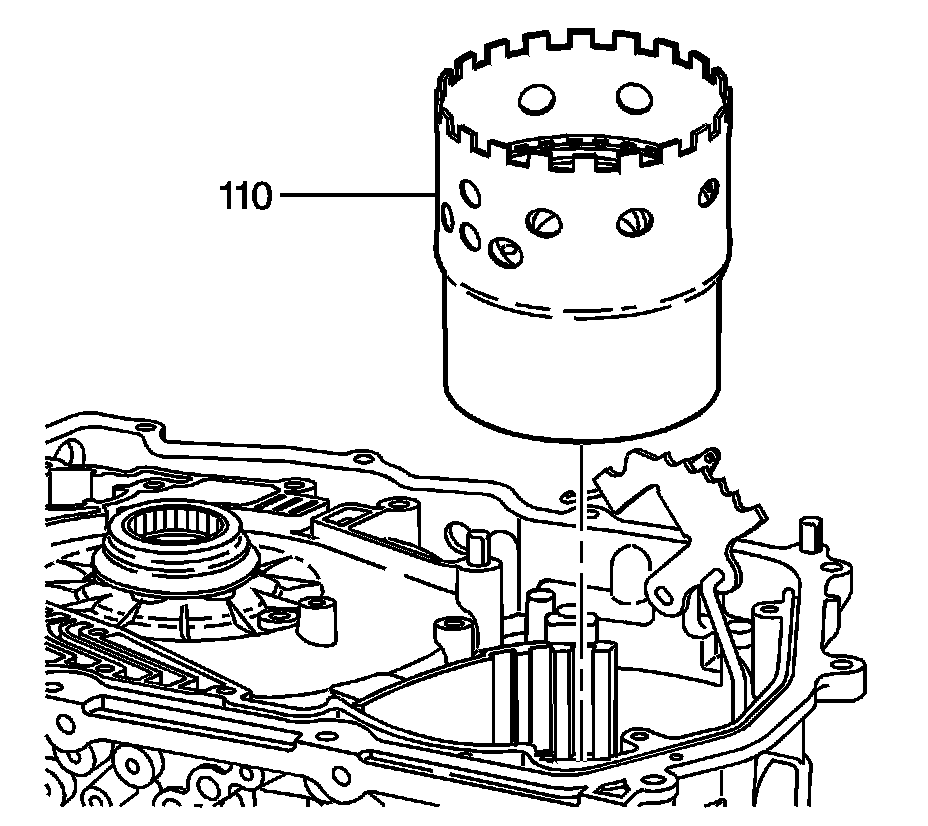

1. Remove the forward clutch assembly (110).




2. Remove the low/reverse band (111).
