X400




Luggage Compartment/Rear of Vehicle Component Views

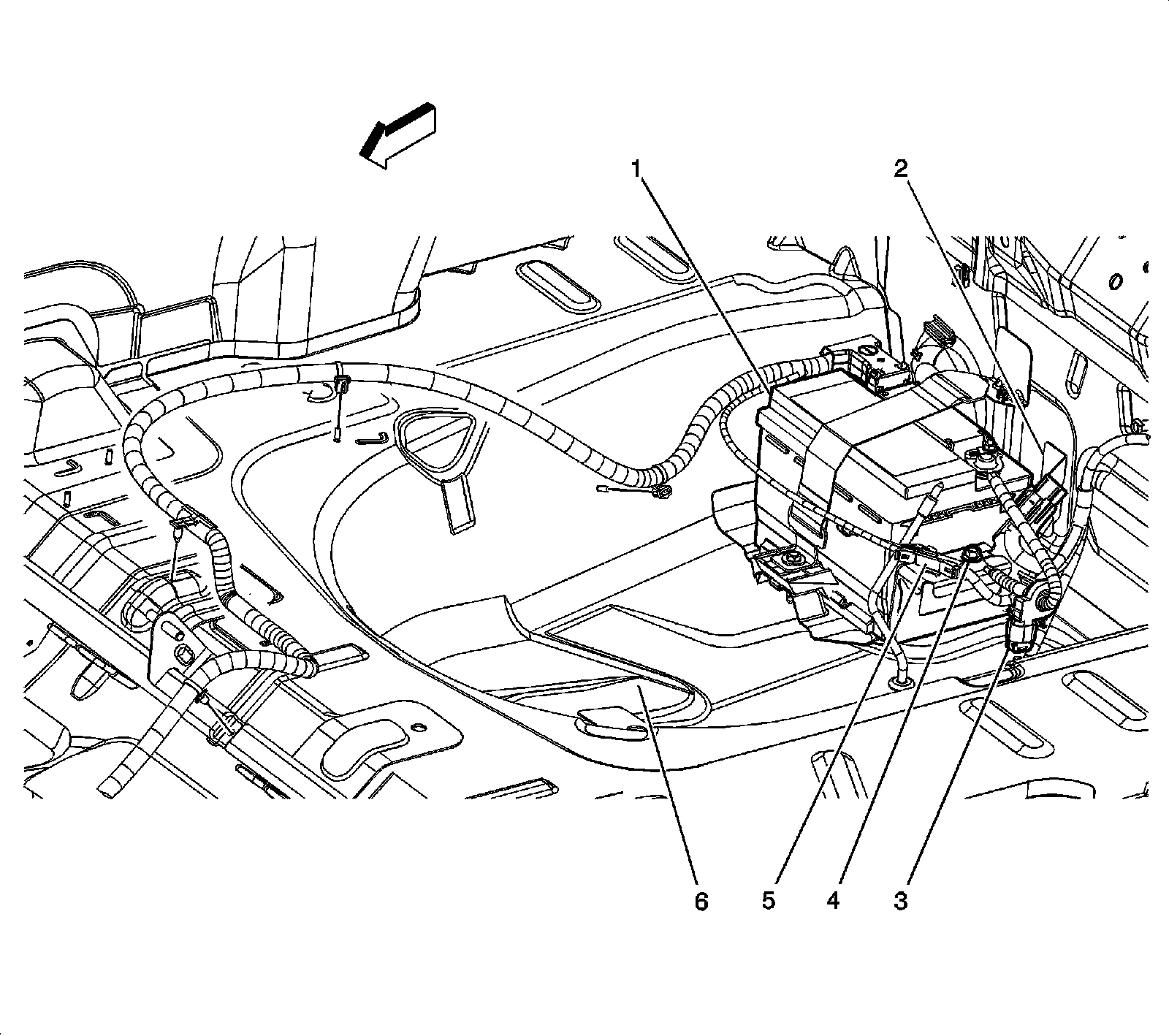

Rear Floor Pan Components and G403




5 - X400

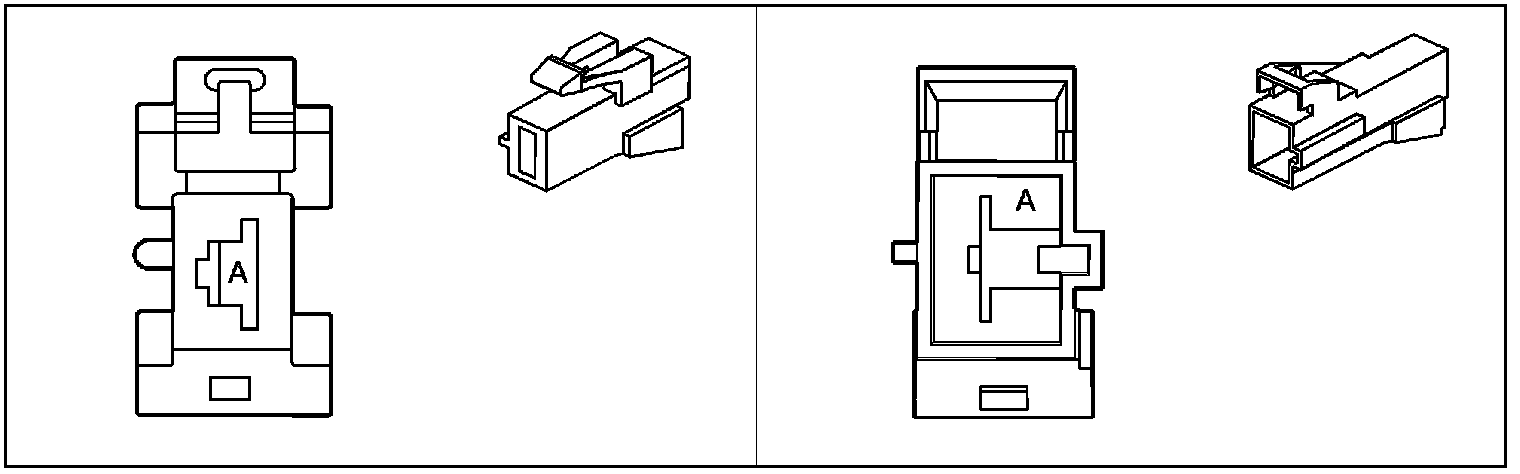

Inline Harness Connector End Views

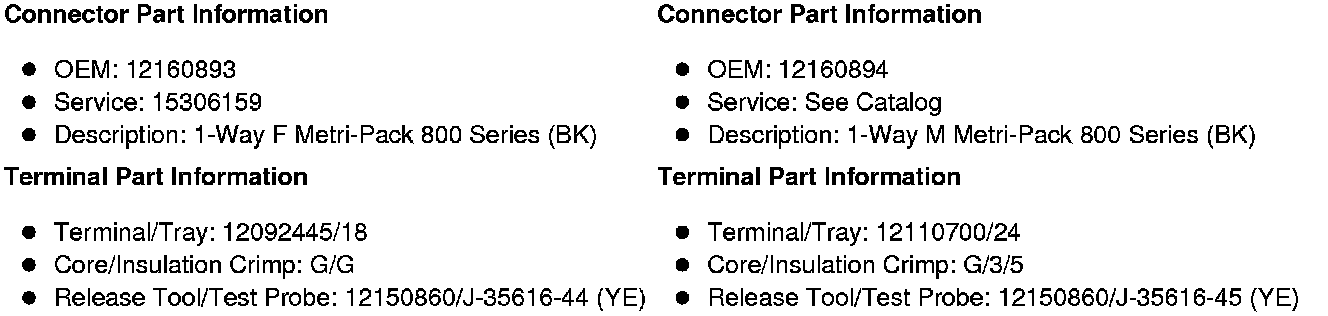

X400 Battery Cable to the Body Harness
