X321




Inline Harness Connector End Views

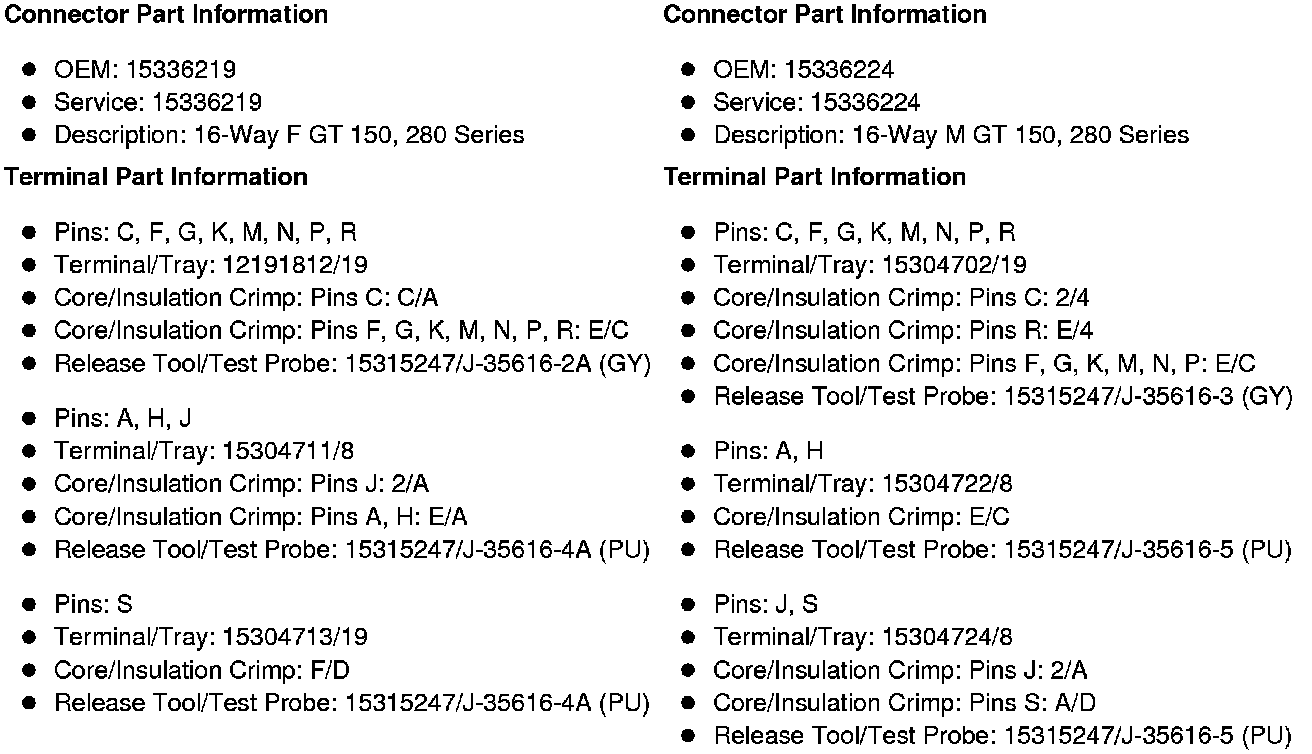

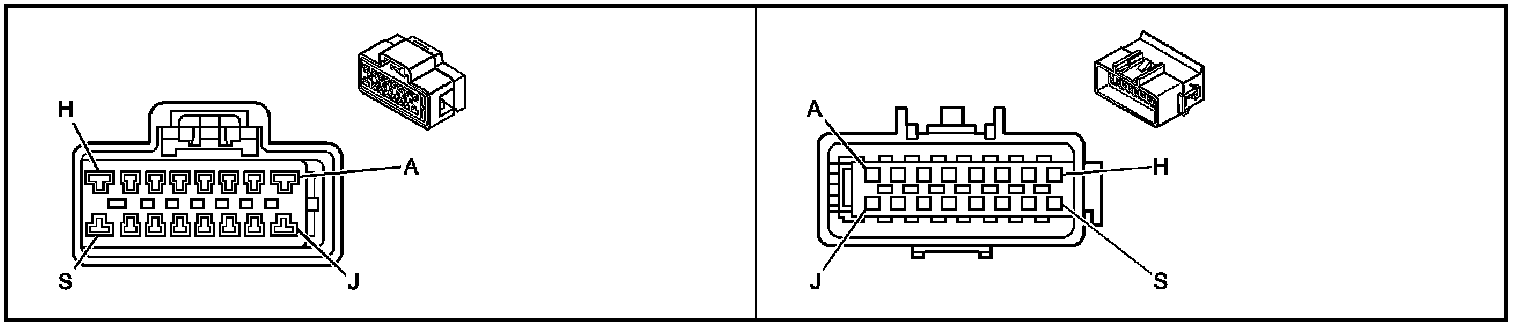

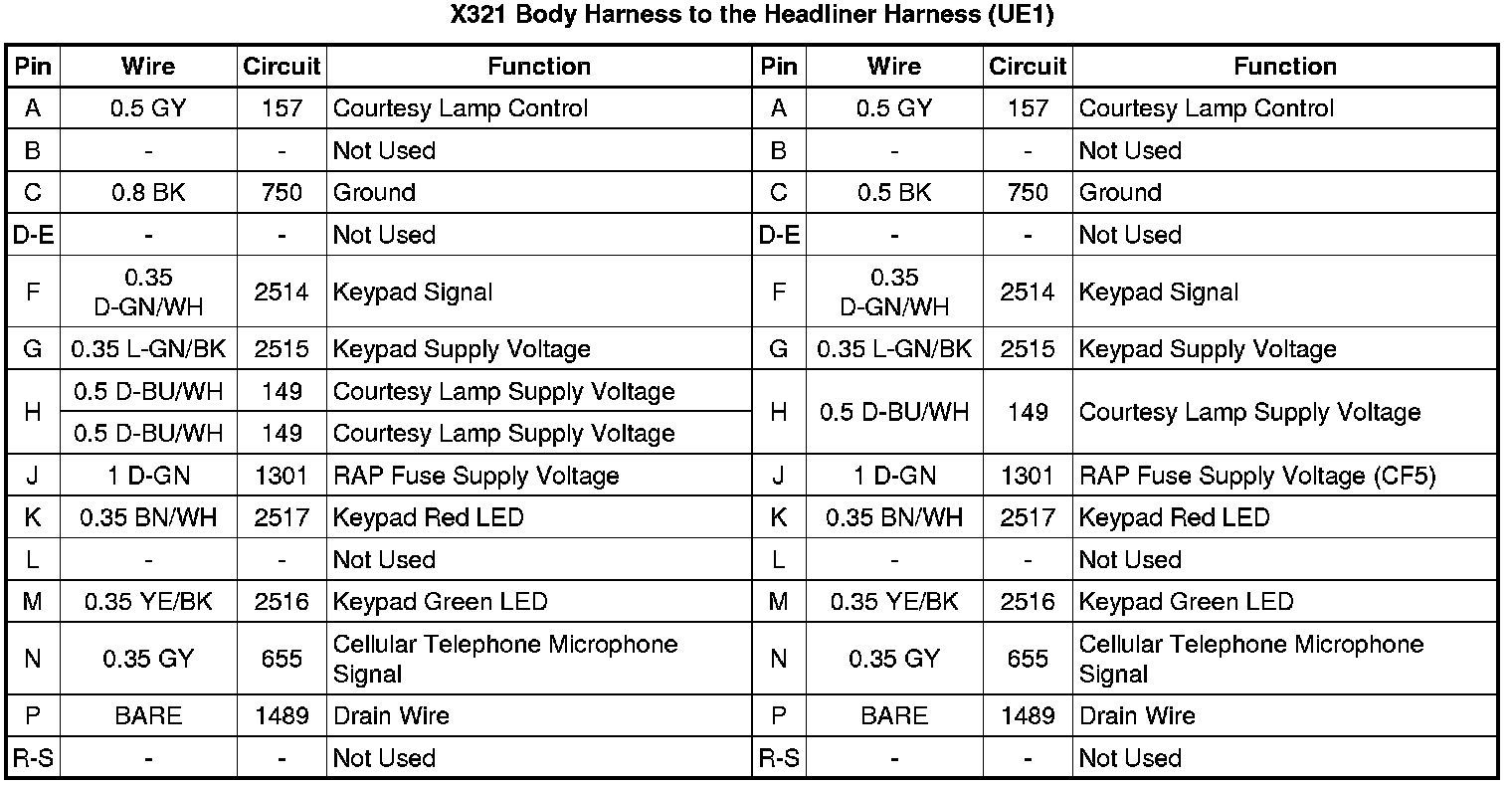

X321 Body Harness to the Headliner Harness (UE1)

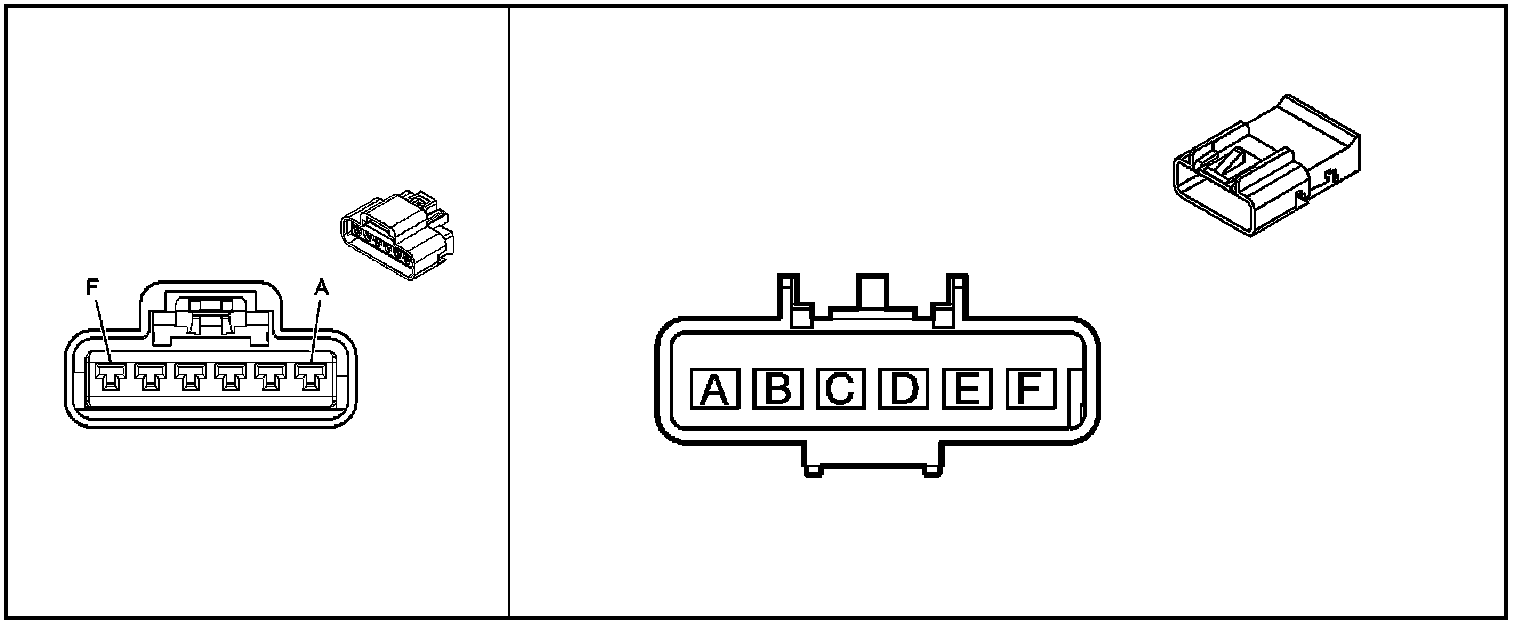

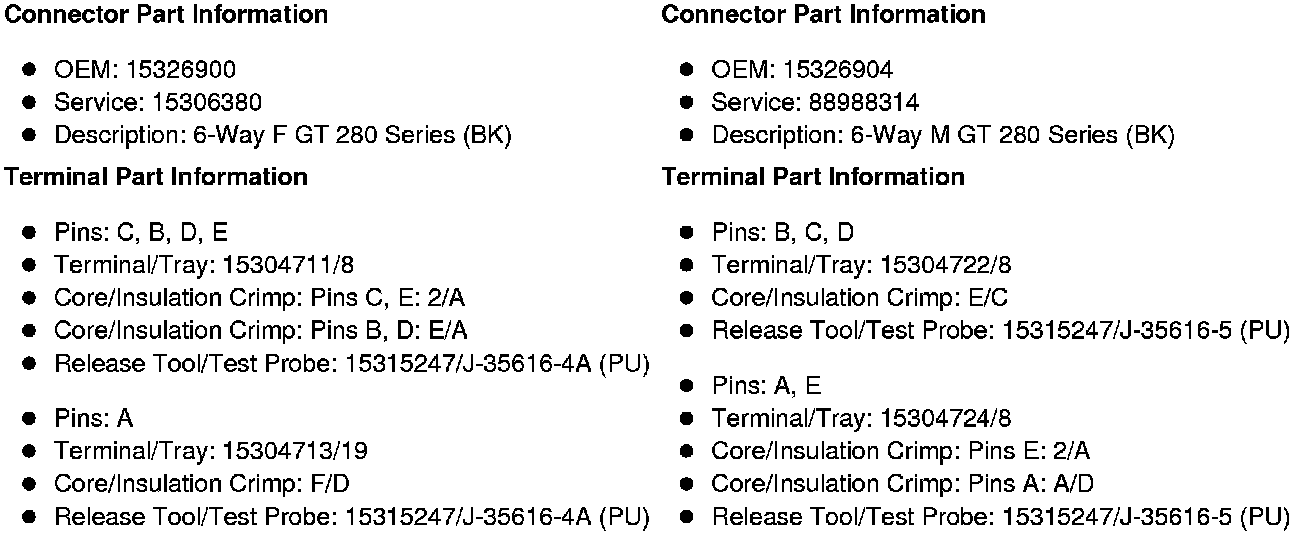

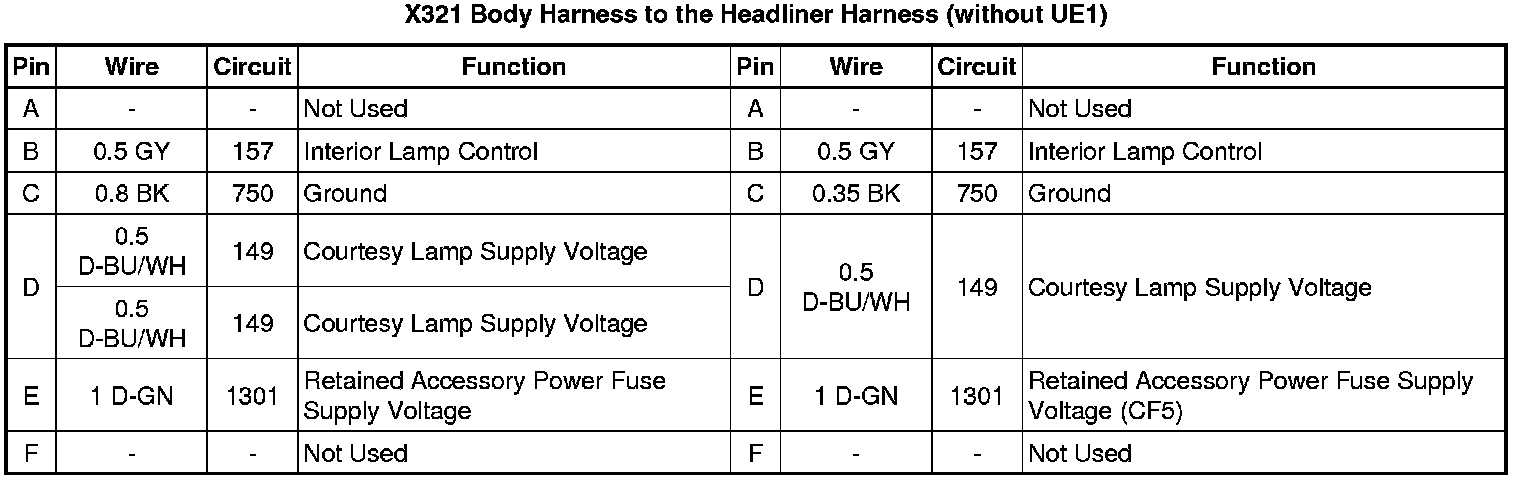

X321 Body Harness to the Headliner Harness (without UE1)
