X307




Instrument Panel/Center Console Component Views

Automatic Transmission Shift Lever Components (MN5)




3 - X307





Inline Harness Connector End Views

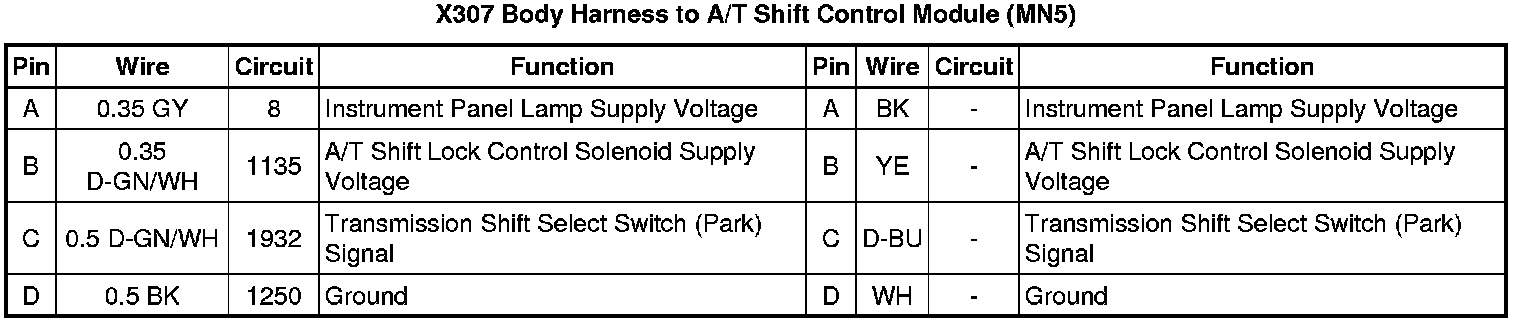

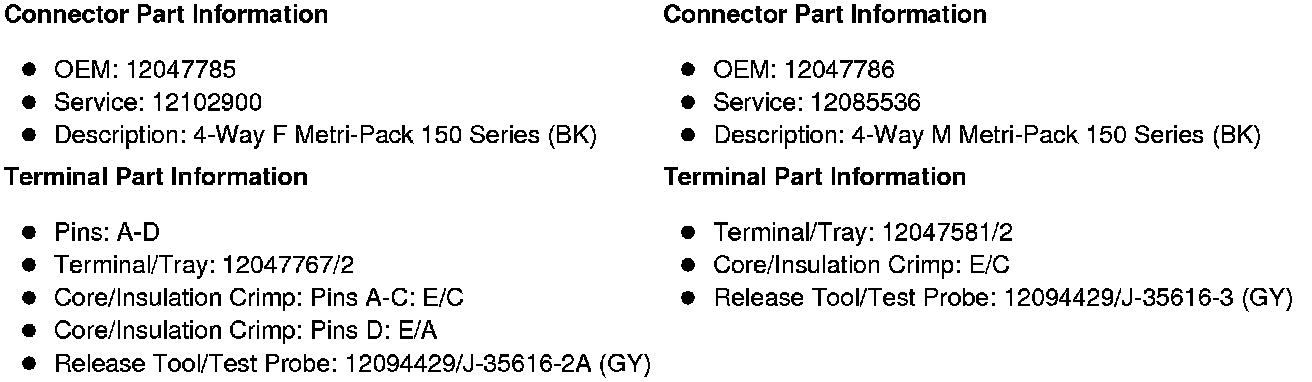

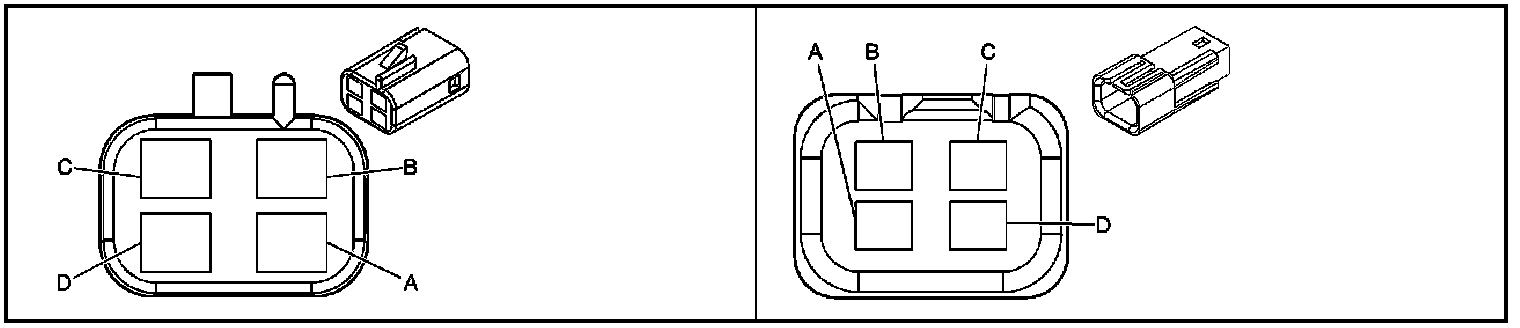

X307 Body Harness to A/T Shift Control Module (MN5)
