Home >> Chevrolet >> 2010 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X200 - X299 >> X210

X210

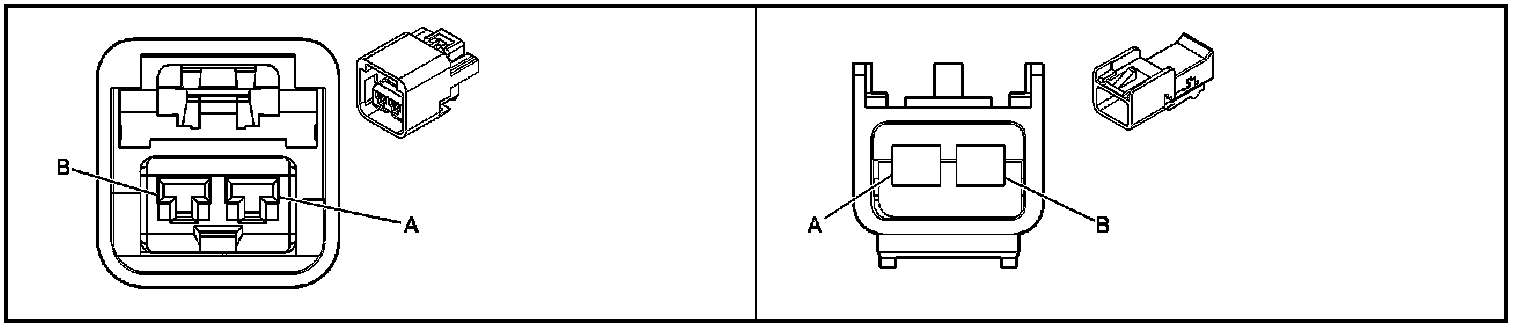

Inline Harness Connector End Views

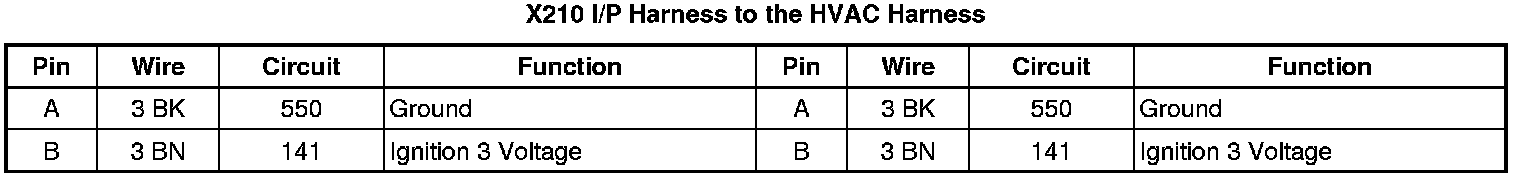

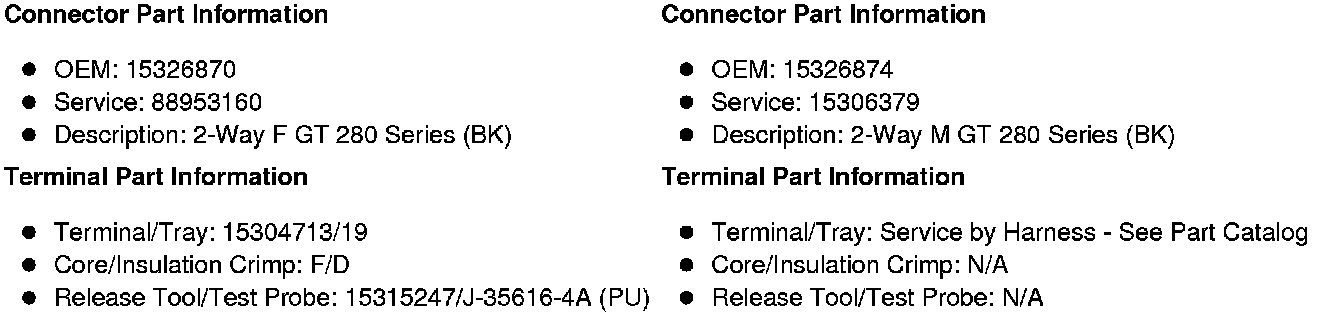

X210 I/P Harness to the HVAC Harness
